Alpha Wire, 7, Silicone Rubber, 392245 WH005
- RS Stock No.:
- 741-7871
- Mfr. Part No.:
- 392245 WH005
- Manufacturer:
- Alpha Wire
Bulk discount available
Subtotal (1 reel of 30 metres)*
PHP18,350.06
(exc. VAT)
PHP20,552.07
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 17 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 49 | PHP18,350.06 | PHP611.669 |
| 50 + | PHP17,799.56 | PHP593.319 |
*price indicative
- RS Stock No.:
- 741-7871
- Mfr. Part No.:
- 392245 WH005
- Manufacturer:
- Alpha Wire
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Core Strands | 7 | |
| Jacket Material | Silicone Rubber | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Core Strands 7 | ||
Jacket Material Silicone Rubber | ||

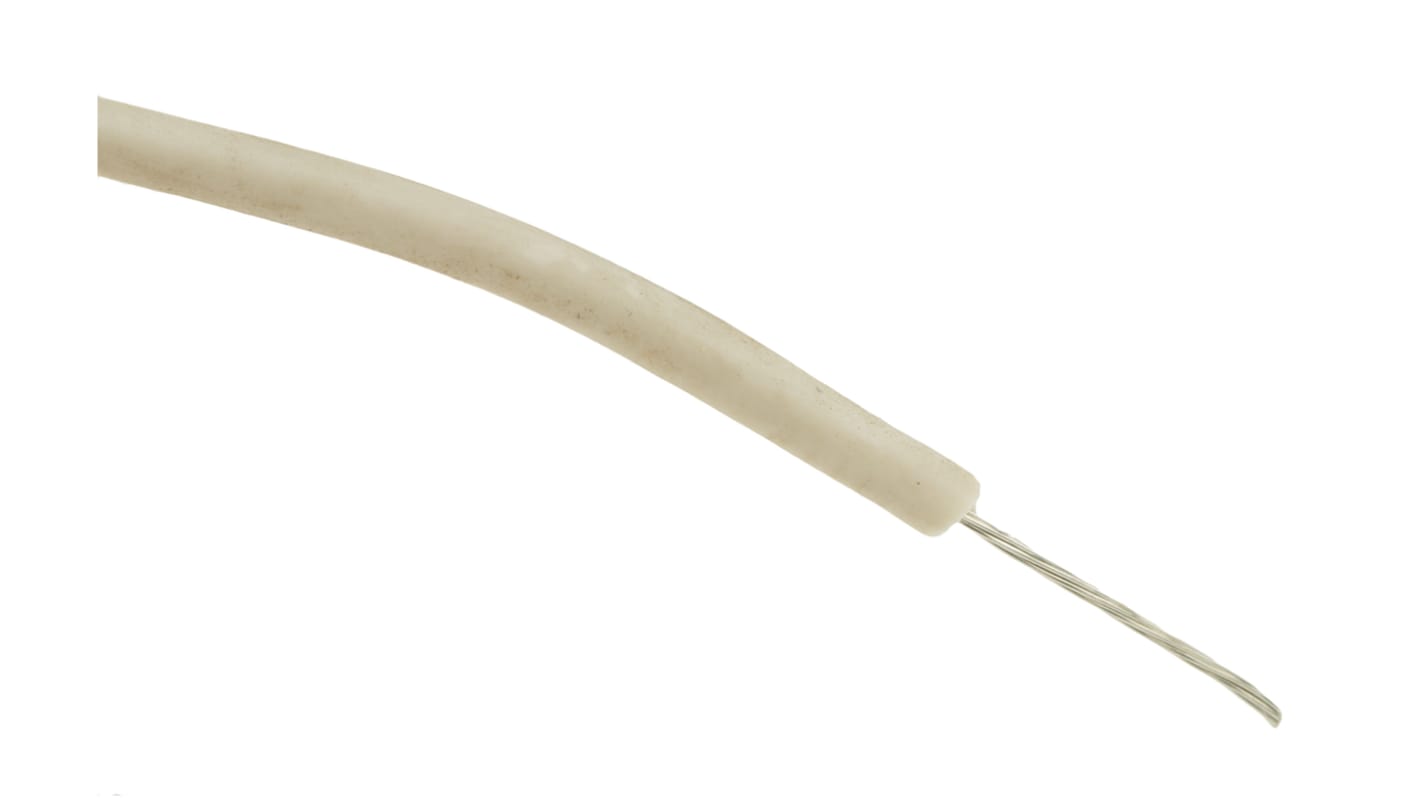

Belden Hookup Wire Silicone Series Hook Up Wire, 30m Cable Length, 15000V Voltage - 392245 WH005
This hook-up wire is a silicone-insulated conductor designed for high-voltage, high-temperature wiring in industrial and electronic systems. It provides flexible interconnection for equipment operating across a wide thermal range and offers flame-retardant properties for demanding installations.
Features & Benefits
• 15000V rating enables use in high-voltage circuits
• Temperature range -40 to 150°C supports hot environments
• VW-1 flame classification reduces ignition risk
• 7-strand copper core improves flexibility and handling
• Silicone rubber jacket resists heat and remains pliable
• Complies with REACH and RoHS controls for substance limits
• Temperature range -40 to 150°C supports hot environments
• VW-1 flame classification reduces ignition risk
• 7-strand copper core improves flexibility and handling
• Silicone rubber jacket resists heat and remains pliable
• Complies with REACH and RoHS controls for substance limits
Applications
• Suitable for high-voltage test rigs and power supplies
• Ideal for thermo-controlled machinery wiring runs
• Used for sensor and actuator leads in automation systems
• Can be used for custom harnesses requiring flexible insulation
• Used with high-temperature probes and heating elements
• Ideal for thermo-controlled machinery wiring runs
• Used for sensor and actuator leads in automation systems
• Can be used for custom harnesses requiring flexible insulation
• Used with high-temperature probes and heating elements
What is the conductor cross-sectional area and composition?
The conductor is 0.33 mm² of tinned copper MADE from seven strands to balance conductivity and flexibility.
How is the wire marked for identification?
The insulation carries manufacturer print information including wire gauge and applicable AWM style for traceability.
What mechanical limits should be observed during installation?
Maximum pull tension is 5.5 lb and minimum bend radius is ten times the cable diameter.
What electrical and inductive characteristics are provided for design calculations?
Conductor DCR is 16.2 Ω/1000 ft at 20°C and inductance is approximately 0.1 μH/ft.
What packaging options are available for procurement?
Continuous lengths are supplied on flanges or spools in various put-ups including 100 ft, 500 ft and 1000 ft, with bulk made-to-order options.
