Alpha Wire Hook-up Wire TEFLON Series Blue 0.35 mm² Hook Up Wire, 22 AWG, 7/0.25 mm, 30m, PTFE Insulation
- RS Stock No.:
- 177-1113
- Mfr. Part No.:
- 5855/7 BL005
- Manufacturer:
- Alpha Wire
132 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price 1 Reel of 30 Metre(s)
PHP3,922.82
(exc. VAT)
PHP4,393.56
(inc. VAT)
Reel(s) | Per Reel | Per Metre* |
1 - 49 | PHP3,922.82 | PHP130.761 |
50 - 249 | PHP3,805.13 | PHP126.838 |
250 + | PHP3,690.97 | PHP123.032 |
*price indicative |
- RS Stock No.:
- 177-1113
- Mfr. Part No.:
- 5855/7 BL005
- Manufacturer:
- Alpha Wire
Technical data sheets
Legislation and Compliance
Product Details

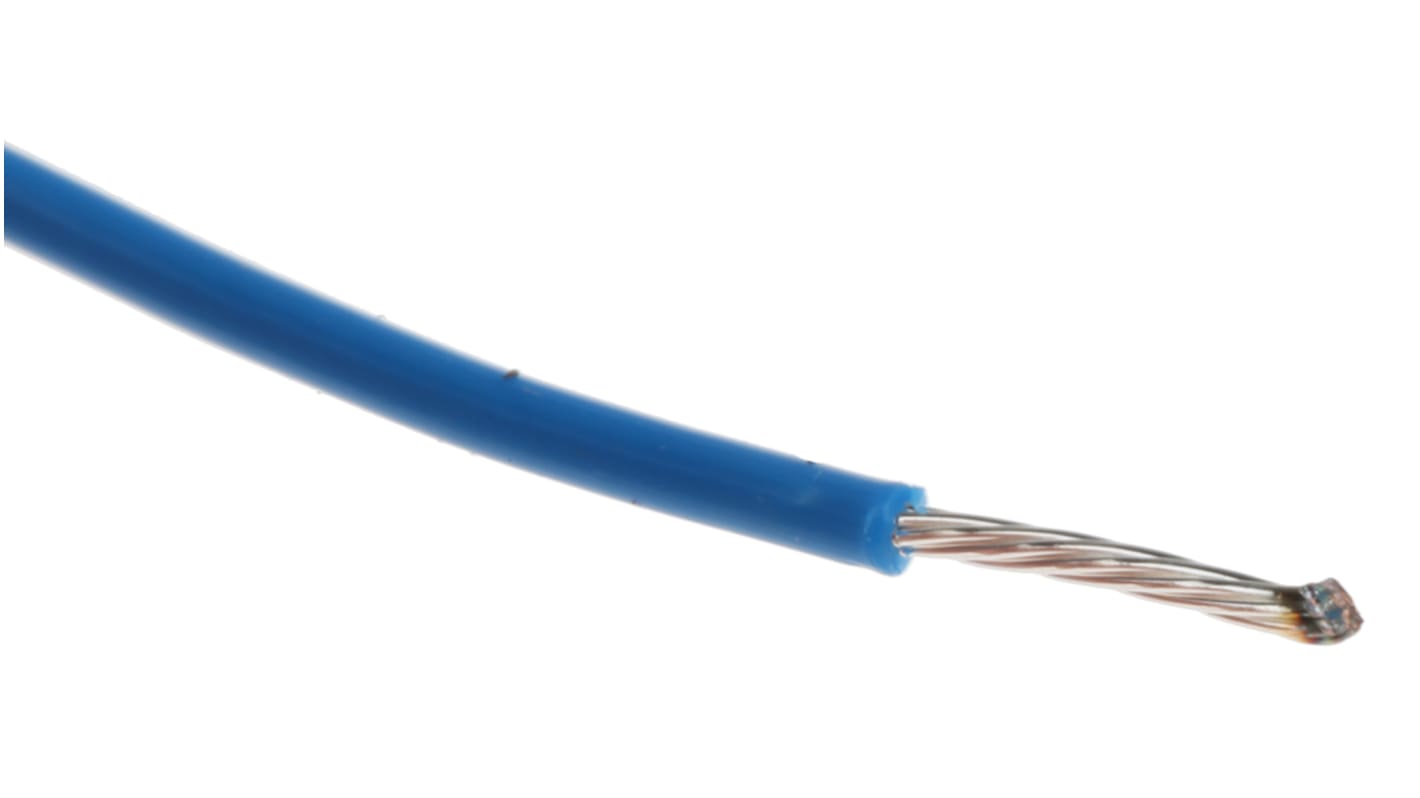

Belden Alpha Wire Blue Hook-Up Wire, 22AWG, 30m Length - Premium Series - 5855/7 BL005
Use this hook-up wire from Belden's Alpha Wire range for internal electrical connections in your enclosed equipment. Its bright blue colour means it's easy to identify in a complex setup. An unshielded design eliminates the need for a drain wire, making it easy to strip and terminate for connection. As the insulating PTFE sheath withstands impact and offers high resistance to chemicals and solvents, you can use this cable with confidence in demanding conditions.
Features & Benefits
• Silver-plated copper conductor is resistant to corrosion for lasting performance
• 30m length gives you sufficient stock for multiple applications
• Maximum pull tension of 5.5lbs helps reduce the risk of strain
• 30m length gives you sufficient stock for multiple applications
• Maximum pull tension of 5.5lbs helps reduce the risk of strain
Applications
• Agricultural industry
• HVAC systems
• Power stations
• HVAC systems
• Power stations
Can I use this wire in harsh environments?
Yes. This wire has a broad operating temperature range between -60°C and +200°C so you can safely use it in harsh settings.
Specifications
Attribute | Value |
---|---|
Cross Sectional Area | 0.35 mm² |
Sheath Colour | Blue |
American Wire Gauge | 22 AWG |
Core Strands | 7/0.25 mm |
Length | 30m |
Insulation Material | PTFE |
Outer Diameter | 1.27mm |
Voltage Rating | 600 V |
Maximum Operating Temperature | +200°C |
Minimum Operating Temperature | -60°C |
Conductor Material | Silver Plated Copper |
Wire Style | UL1213 |
Standards Met | MIL-W-16878/4, NEMA HP-EXBBB, UL1213, VW-1 |
Series | Hook-up Wire TEFLON |
Shield Type | Unshielded |
Insulation Wall Thickness | 0.3mm |
Number of Strands | 7 |
Size of Strands | 0.25 mm |
