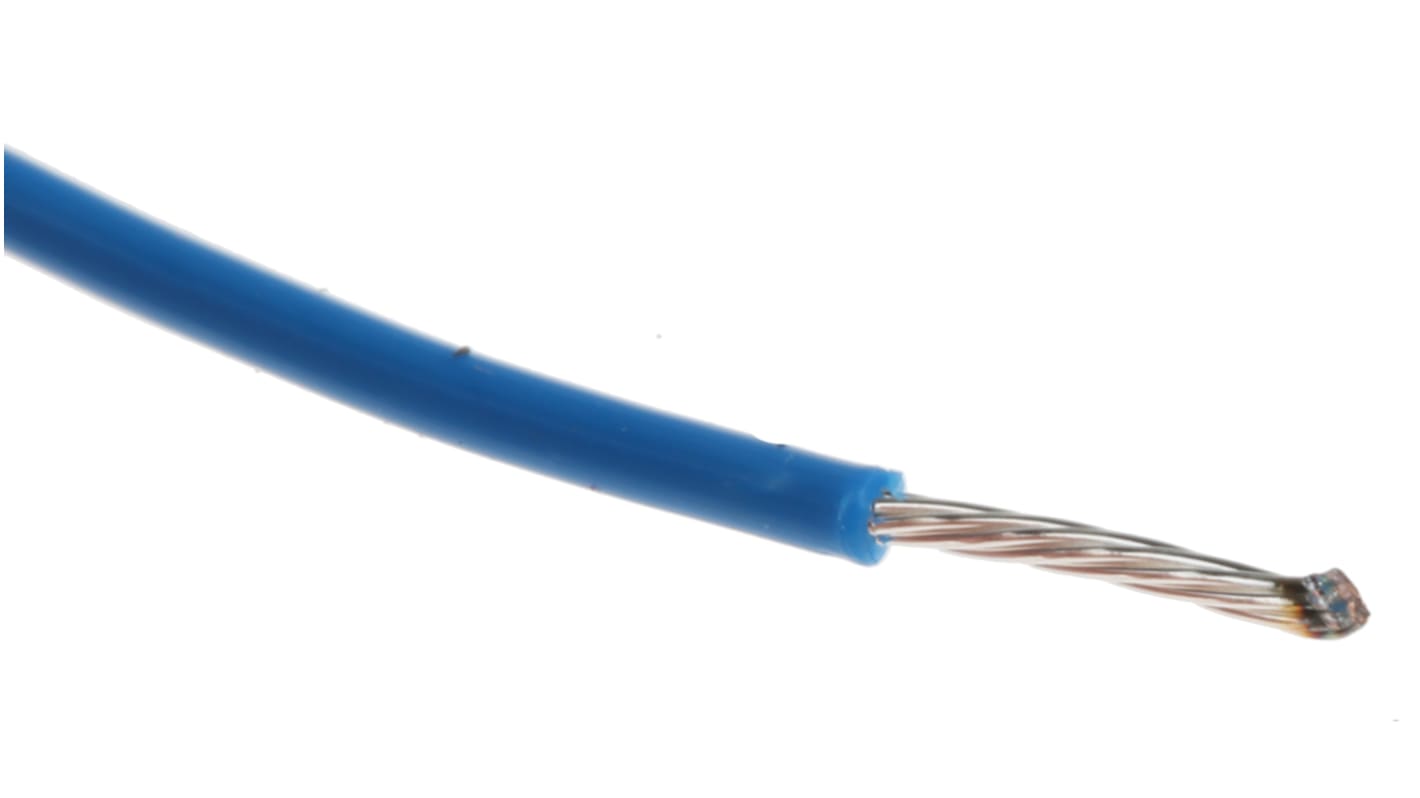

Alpha Wire Hook-up Wire TEFLON Series Blue 0.23 mm² Hook Up Wire, 24 AWG, 7/0.20 mm, 30m, PTFE Insulation
- RS Stock No.:
- 177-1028
- Mfr. Part No.:
- 5854/7 BL005
- Manufacturer:
- Alpha Wire
1 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days
203 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price 1 Reel of 30 Metre(s)
PHP3,324.85
(exc. VAT)
PHP3,723.83
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 49 | PHP3,324.85 | PHP110.828 |
| 50 - 249 | PHP3,094.48 | PHP103.149 |
| 250 + | PHP2,546.75 | PHP84.892 |
| *price indicative | ||
- RS Stock No.:
- 177-1028
- Mfr. Part No.:
- 5854/7 BL005
- Manufacturer:
- Alpha Wire
Technical data sheets
Legislation and Compliance
Product Details
Belden Alpha Wire Hookup Wire, Silver-Plated Copper Conductors, 1.12mm OD - Premium Series - 5854/7 BL005
This versatile hookup wire from Belden's Alpha Wire range is suitable for the internal wiring of electronic devices. Thanks to its copper conductors, it delivers a reliable and consistent power supply to keep your systems and machinery running smoothly. Its PTFE jacket resists chemicals, solvents and temperatures between -60°C and +200°C, so this cable is a safe choice for use in extreme conditions.
Features & Benefits
• Blue cable jacket is easy to identify in busy control cabinets
• Length of 30m for long cable runs or multiple jobs
• Unshielded, so is flexible and easy to bend around corners
• Resists weathering and UV light for longevity
• Length of 30m for long cable runs or multiple jobs
• Unshielded, so is flexible and easy to bend around corners
• Resists weathering and UV light for longevity
Applications
• Food and beverage industry
• Construction equipment
• Pulp and paper production
• Construction equipment
• Pulp and paper production
Does this cable have stranded or solid conductors?
This cable has stranded conductors, so it's flexible and easier to route around obstacles than a cable with solid conductors.
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 0.23 mm² |
| Sheath Colour | Blue |
| American Wire Gauge | 24 AWG |
| Core Strands | 7/0.20 mm |
| Length | 30m |
| Insulation Material | PTFE |
| Outer Diameter | 1.12mm |
| Voltage Rating | 600 V |
| Minimum Operating Temperature | -60°C |
| Maximum Operating Temperature | +200°C |
| Conductor Material | Silver Plated Copper |
| Standards Met | MIL-W-16878/4, NEMA HP-EXBBB, UL1213, VW-1 |
| Wire Style | UL1213 |
| Series | Hook-up Wire TEFLON |
| Shield Type | Unshielded |
| Insulation Wall Thickness | 0.3mm |
| Size of Strands | 0.2 mm |
| Number of Strands | 7 |
