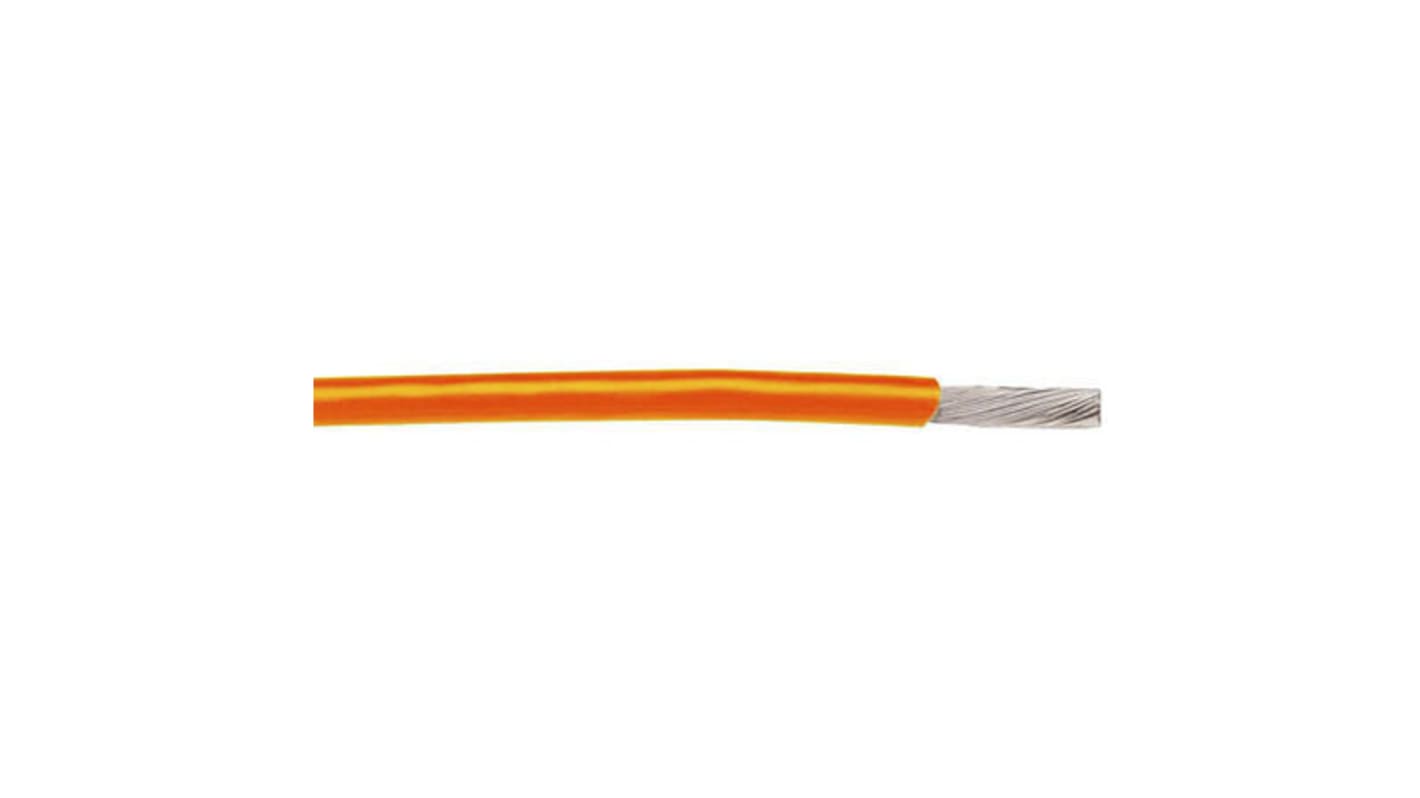

Alpha Wire Hook-up Wire TEFLON Series Orange 0.23 mm² Hook Up Wire, 24 AWG, 7/0.20 mm, 30m, PTFE Insulation, 5854/7
- RS Stock No.:
- 177-1034
- Mfr. Part No.:
- 5854/7 OR005
- Manufacturer:
- Alpha Wire
Bulk discount available
Subtotal (1 reel of 30 metres)**
Was PHP3,324.85
You pay
PHP3,527.38
(exc. VAT)
PHP3,950.67
(inc. VAT)
32 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for over PHP7,000.00 (ex VAT)
Reel(s) | Per Reel | Per Metre** |
|---|---|---|
| 1 - 49 | PHP3,527.38 | PHP117.579 |
| 50 + | PHP3,421.55 | PHP114.052 |
**price indicative
- RS Stock No.:
- 177-1034
- Mfr. Part No.:
- 5854/7 OR005
- Manufacturer:
- Alpha Wire
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Manufacturer | Alpha Wire | |
| Cross Sectional Area | 0.23 mm² | |
| Sheath Colour | Orange | |
| American Wire Gauge | 24 AWG | |
| Core Strands | 7/0.20 mm | |
| Length | 30m | |
| Insulation Material | PTFE | |
| Outer Diameter | 1.12mm | |
| Voltage Rating | 600 V | |
| Maximum Operating Temperature | +200°C | |
| Minimum Operating Temperature | -60°C | |
| Conductor Material | Silver Plated Copper | |
| Standards Met | MIL-W-16878/4, NEMA HP-EXBBB, UL1213, VW-1 | |
| Wire Style | UL1213 | |
| Series | Hook-up Wire TEFLON | |
| Insulation Wall Thickness | 0.3mm | |
| Shield Type | Unshielded | |
| Number of Strands | 7 | |
| Resistant To | Chemicals, Oils, Solvents | |
| Size of Strands | 0.2 mm | |
Select all | ||
|---|---|---|
Manufacturer Alpha Wire | ||
Cross Sectional Area 0.23 mm² | ||
Sheath Colour Orange | ||
American Wire Gauge 24 AWG | ||
Core Strands 7/0.20 mm | ||
Length 30m | ||
Insulation Material PTFE | ||
Outer Diameter 1.12mm | ||
Voltage Rating 600 V | ||
Maximum Operating Temperature +200°C | ||
Minimum Operating Temperature -60°C | ||
Conductor Material Silver Plated Copper | ||
Standards Met MIL-W-16878/4, NEMA HP-EXBBB, UL1213, VW-1 | ||
Wire Style UL1213 | ||
Series Hook-up Wire TEFLON | ||
Insulation Wall Thickness 0.3mm | ||
Shield Type Unshielded | ||
Number of Strands 7 | ||
Resistant To Chemicals, Oils, Solvents | ||
Size of Strands 0.2 mm | ||
