Rose Polyester Standard Series Grey Grey Lid Polyester Enclosure, IP66 90 mm, 220 mm, 120 mm
- RS Stock No.:
- 104-2588
- Mfr. Part No.:
- 021222090
- Manufacturer:
- Rose
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP5,743.59
(exc. VAT)
PHP6,432.82
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 12 unit(s) shipping from August 24, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 10 | PHP5,743.59 |
| 11 - 25 | PHP5,571.29 |
| 26 + | PHP5,404.14 |
*price indicative
- RS Stock No.:
- 104-2588
- Mfr. Part No.:
- 021222090
- Manufacturer:
- Rose
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rose | |
| Body Material | Polyester | |
| Product Type | Enclosure | |
| External Height | 90mm | |
| External Width | 120mm | |
| External Length | 220mm | |
| IP Rating | IP66 | |
| Lid Colour | Grey | |
| Colour | Grey | |
| Hazardous Area Certification | No | |
| Shielding | Unshielded | |
| Series | Polyester Standard | |
| Standards/Approvals | RoHS Compliant | |
| Select all | ||
|---|---|---|
Brand Rose | ||
Body Material Polyester | ||
Product Type Enclosure | ||
External Height 90mm | ||
External Width 120mm | ||
External Length 220mm | ||
IP Rating IP66 | ||
Lid Colour Grey | ||
Colour Grey | ||
Hazardous Area Certification No | ||
Shielding Unshielded | ||
Series Polyester Standard | ||
Standards/Approvals RoHS Compliant | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

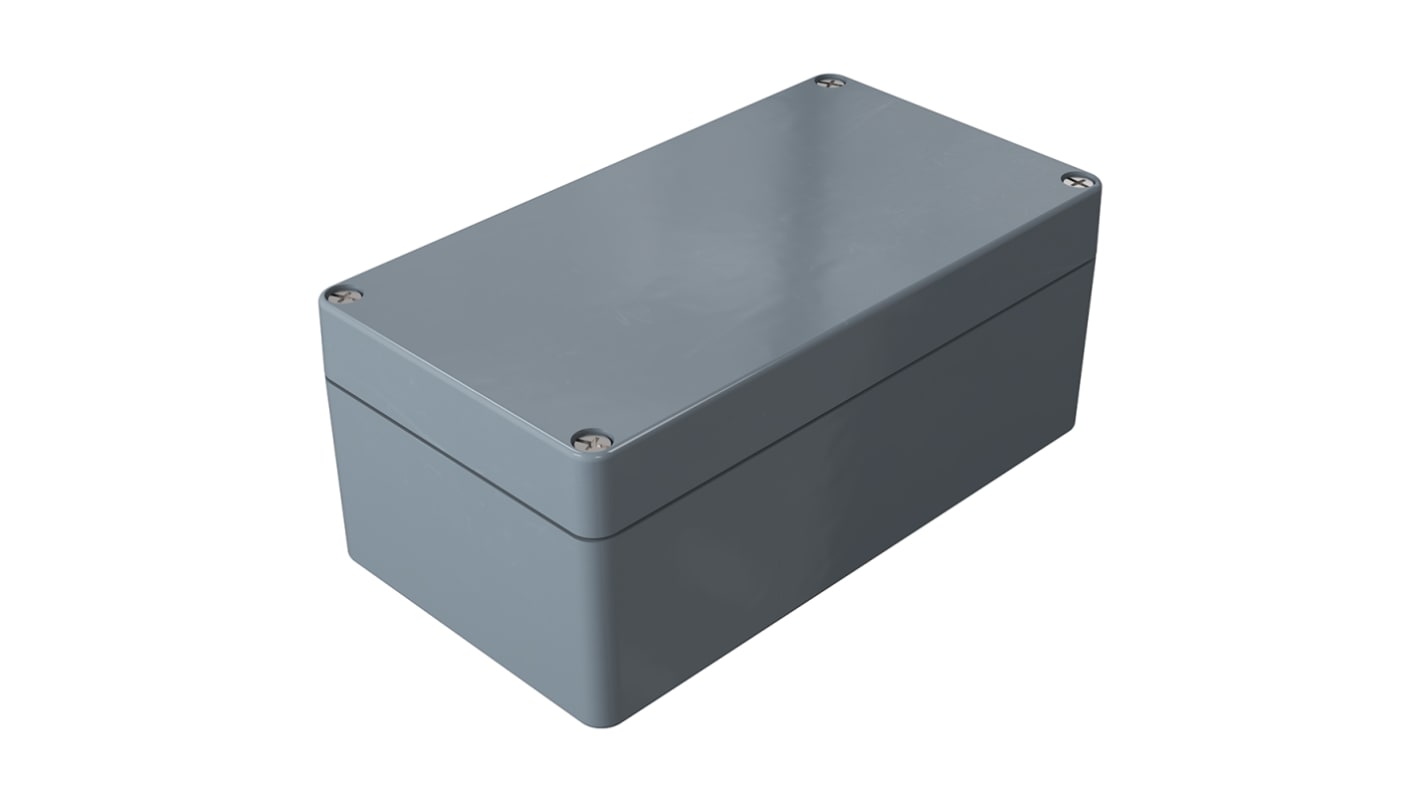

ROSE Grey Glass Fibre-Reinforced Polyester Enclosure, 220mm Length, 90mm Height - Polyester Standard Series - 1042588
Store and shield electrical and mechanical components in your workplace with this enclosure from ROSE. Its glass fibre-reinforced polyester body is resistant to up to seven joules of impact, so you can rely on it for use in harsh environments. This box is also fully insulated to protect you from electric shock, making it safe to handle. To prevent tampering, the enclosure is supplied with a lid and captive screws for security.
Features & Benefits
• Wide operating temperature range between -40°C and +100°C for use in challenging settings
• Suitable for DIN rail and mounting plate installation for versatility
• IP66 rating indicates that it's dustproof and resistant to high-pressure water jets
• Halogen-free, so it doesn't emit toxic fumes in the event of a fire
Applications
• Assembly lines
• Commercial buildings
• Food production
• Packaging industry
Is this enclosure fire-proof?
Yes, this enclosure has a UL94 V-0 rating, which means that burning will stop within 10 seconds in the event of a fire. This makes it safe to use in fire-prone areas.
