Rose Aluminium Standard Series Grey Die Cast Aluminium Enclosure, IP66, IK09 90 mm, 220 mm, 120 mm
- RS Stock No.:
- 222-705
- Mfr. Part No.:
- 01122209
- Manufacturer:
- Rose
Bulk discount available
Subtotal (1 unit)*
PHP4,513.92
(exc. VAT)
PHP5,055.59
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 46 unit(s) shipping from May 04, 2026
- Plus 18 unit(s) shipping from May 15, 2026
- Plus 36 unit(s) shipping from May 29, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 24 | PHP4,513.92 |
| 25 - 49 | PHP4,359.72 |
| 50 + | PHP4,257.12 |
*price indicative
- RS Stock No.:
- 222-705
- Mfr. Part No.:
- 01122209
- Manufacturer:
- Rose
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rose | |
| Product Type | Enclosure | |
| Body Material | Die Cast Aluminium | |
| External Height | 90mm | |
| External Width | 120mm | |
| External Length | 220mm | |
| IP Rating | IP66 | |
| Colour | Grey | |
| Lid Colour | Grey | |
| Flanged | No | |
| Shielding | Unshielded | |
| Hazardous Area Certification | Maritime, UL | |
| Series | Aluminium Standard | |
| Standards/Approvals | RoHS Compliant | |
| Weight | 1.4kg | |
| IK Rating | IK09 | |
| Gasket Material | Polyurethane | |
| Select all | ||
|---|---|---|
Brand Rose | ||
Product Type Enclosure | ||
Body Material Die Cast Aluminium | ||
External Height 90mm | ||
External Width 120mm | ||
External Length 220mm | ||
IP Rating IP66 | ||
Colour Grey | ||
Lid Colour Grey | ||
Flanged No | ||
Shielding Unshielded | ||
Hazardous Area Certification Maritime, UL | ||
Series Aluminium Standard | ||
Standards/Approvals RoHS Compliant | ||
Weight 1.4kg | ||
IK Rating IK09 | ||
Gasket Material Polyurethane | ||

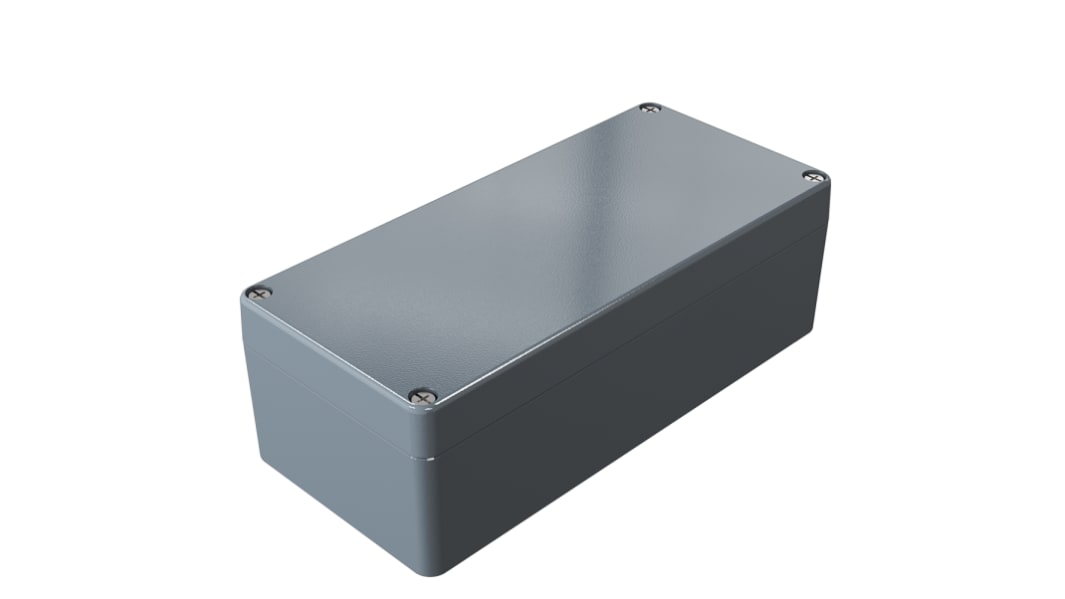

ROSE Grey Die-Cast Aluminium Enclosure, 220mm Length, 90mm Height - Aluminium Standard Series - 01122209
Choose this hard-wearing enclosure from ROSE to safely house your industrial equipment. It's made from a grey (RAL7001) die-cast aluminium material that's highly conductive, making it a good choice for use with electronic devices. As well as being corrosion-resistant, the enclosure has an IP66 (ingress protection) rating, which means it's dust-tight and protected against high-pressure water jets. This makes it a versatile choice for general-purpose use in both indoor and outdoor environments.
Features & Benefits
• UL 508 certification for use in hazardous areas
• DIN rail or mounting plate fixing options for versatility
• Compact dimensions of 220 (length) x 120 (width) x 90mm (height) for use in tight spaces
Applications
• Solar power batteries
• Printed circuit boards
• Mechanical engineering
• Telecommunication industry
What's supplied with this enclosure?
This enclosure is supplied with everything you need for complete assembly, including a lid, seal and base with earthing screws. It also includes stainless-steel screws to hold the lid securely in place.
What's the operating temperature range of this enclosure?
This enclosure has a polyurethane seal with a wide operating temperature range of -40°C to +90°C. This makes it a good choice for use in demanding industrial environments.
