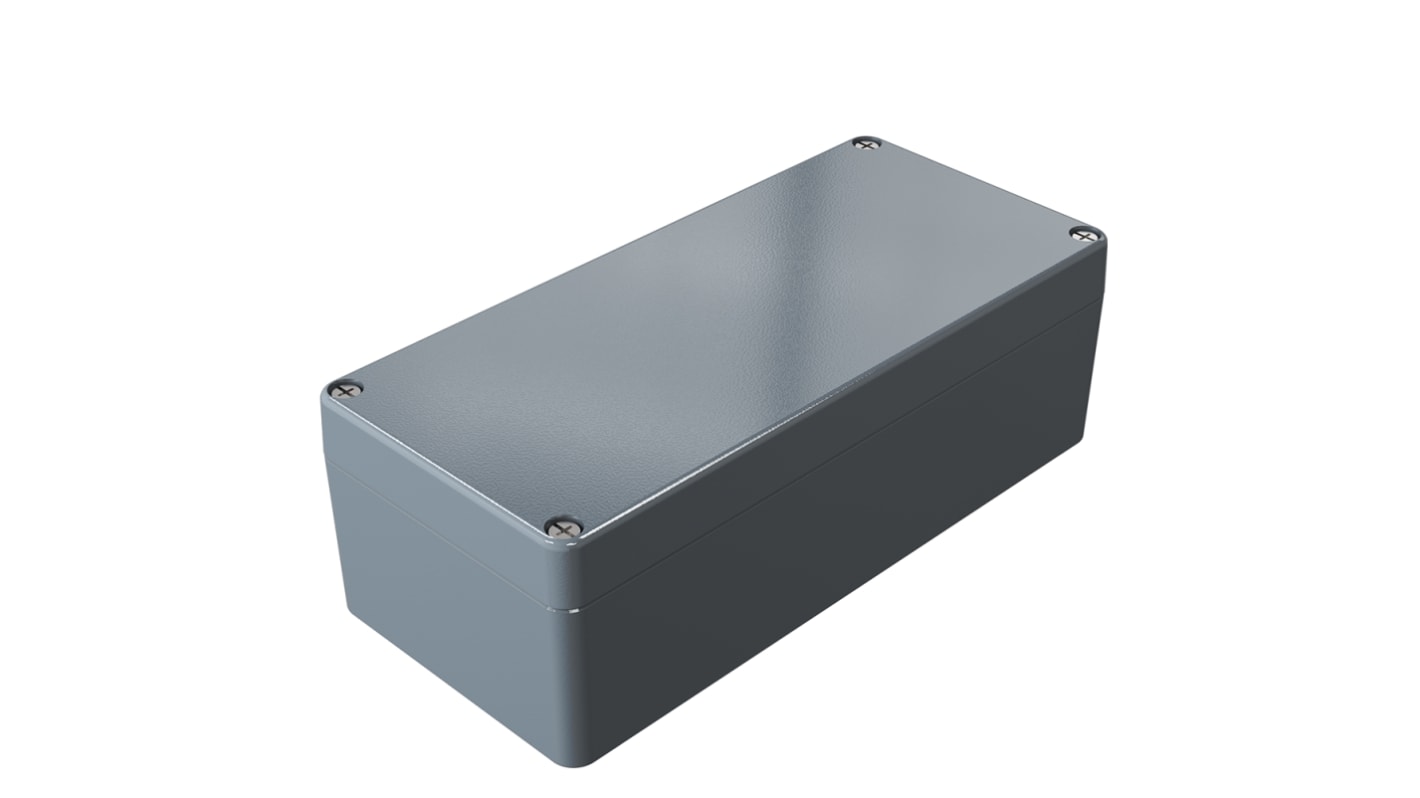

Rose Aluminium Standard Series Grey Die Cast Aluminium Enclosure, IP66, IK09, Grey Lid, 220 x 120 x 80mm
- RS Stock No.:
- 509-125
- Mfr. Part No.:
- 01122208
- Manufacturer:
- Rose
75 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Price Each
PHP4,110.81
(exc. VAT)
PHP4,604.11
(inc. VAT)
Units | Per Unit |
---|---|
1 - 24 | PHP4,110.81 |
25 - 49 | PHP3,983.64 |
50 + | PHP3,907.58 |
- RS Stock No.:
- 509-125
- Mfr. Part No.:
- 01122208
- Manufacturer:
- Rose
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
ROSE Grey Die-Cast Aluminium Enclosure, 220mm Width, 81mm Depth - Aluminium Standard Series - 01122208
Choose this weatherproof enclosure from ROSE to safely house your small industrial components. Its die-cast aluminium body is highly conductive, so it's a good choice for protecting electronic devices such as circuit breakers and relays. This material is also resistant to corrosion and impact, making it suitable for use in heavy-duty industrial environments. The enclosure has a PU (polyurethane) gasket that seals it against dust and other contaminants for enhanced electrical safety.
Features & Benefits
• IP66 (ingress protection) rating for protection against dust and high-pressure water jets
• Wide operating temperature range of -40°C to +90°C for use in demanding conditions
• Meets UL 508A safety standards for industrial control panels
• Light weight of 1.41kg will add minimal strain to the mounting surface
• Supplied with stainless steel captive screws for securing the lid in place to prevent unauthorised access and tampering
• Wide operating temperature range of -40°C to +90°C for use in demanding conditions
• Meets UL 508A safety standards for industrial control panels
• Light weight of 1.41kg will add minimal strain to the mounting surface
• Supplied with stainless steel captive screws for securing the lid in place to prevent unauthorised access and tampering
Applications
• Railway systems
• Construction sites
• Chemical processing facilities
• Construction sites
• Chemical processing facilities
How can I mount this enclosure?
This enclosure is suitable for mounting on a fixing plate or DIN rail, making it a versatile choice.
Specifications
Attribute | Value |
---|---|
Body Material | Die Cast Aluminium |
External Length | 220 mm |
External Height | 80 mm |
External Width | 120 mm |
External Dimensions | 220 x 120 x 80mm |
Range | Aluminium Enclosure |
IP Rating | IP66 |
Colour | Grey |
Lid Colour | Grey |
Flanged | No |
Hazardous Area Certification | Lloyds Register, Maritime Register, UL 508 |
Shielded | No |
Series | Aluminium Standard |
Number Of Knockouts | 0 |
IK Rating | IK09 |
Weight | 1400g |
Transparent Door | No |
Gasket Material | Polyurethane |
RAL Code | RAL 7001 |
