STEGO FF 018 Series Filter Fan, 230V ac, AC, 20 m³/h Filtered, IP55, 224 mm, 165 mm x
- RS Stock No.:
- 468-2757
- Mfr. Part No.:
- 01821.0-00
- Manufacturer:
- STEGO
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP18,815.89
(exc. VAT)
PHP21,073.80
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- Plus 4 unit(s) shipping from September 07, 2026
- Plus 12 unit(s) shipping from September 21, 2026
- Plus 4 unit(s) shipping from October 19, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | PHP18,815.89 |
| 10 - 24 | PHP18,251.41 |
| 25 - 49 | PHP17,703.84 |
| 50 - 99 | PHP17,310.59 |
| 100 + | PHP16,934.29 |
*price indicative
- RS Stock No.:
- 468-2757
- Mfr. Part No.:
- 01821.0-00
- Manufacturer:
- STEGO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STEGO | |
| Product Type | Filter Fan | |
| Noise Level | 40dB | |
| Filtered Air Flow | 20m³/h | |
| Input Current | 100mA | |
| Input Power | 15W | |
| AC or DC Operation | AC | |
| Installation Depth | 62mm | |
| Supply Voltage | 230V ac | |
| Face Height | 224mm | |
| Face Width | 165mm | |
| Standards/Approvals | CE, EN, RoHS, UL | |
| IP Rating | IP55 | |
| Bearing Type | Ball | |
| Configuration | Rectangular | |
| Series | FF 018 | |
| Select all | ||
|---|---|---|
Brand STEGO | ||
Product Type Filter Fan | ||
Noise Level 40dB | ||
Filtered Air Flow 20m³/h | ||
Input Current 100mA | ||
Input Power 15W | ||
AC or DC Operation AC | ||
Installation Depth 62mm | ||
Supply Voltage 230V ac | ||
Face Height 224mm | ||
Face Width 165mm | ||
Standards/Approvals CE, EN, RoHS, UL | ||
IP Rating IP55 | ||
Bearing Type Ball | ||
Configuration Rectangular | ||
Series FF 018 | ||
- COO (Country of Origin):
- DE

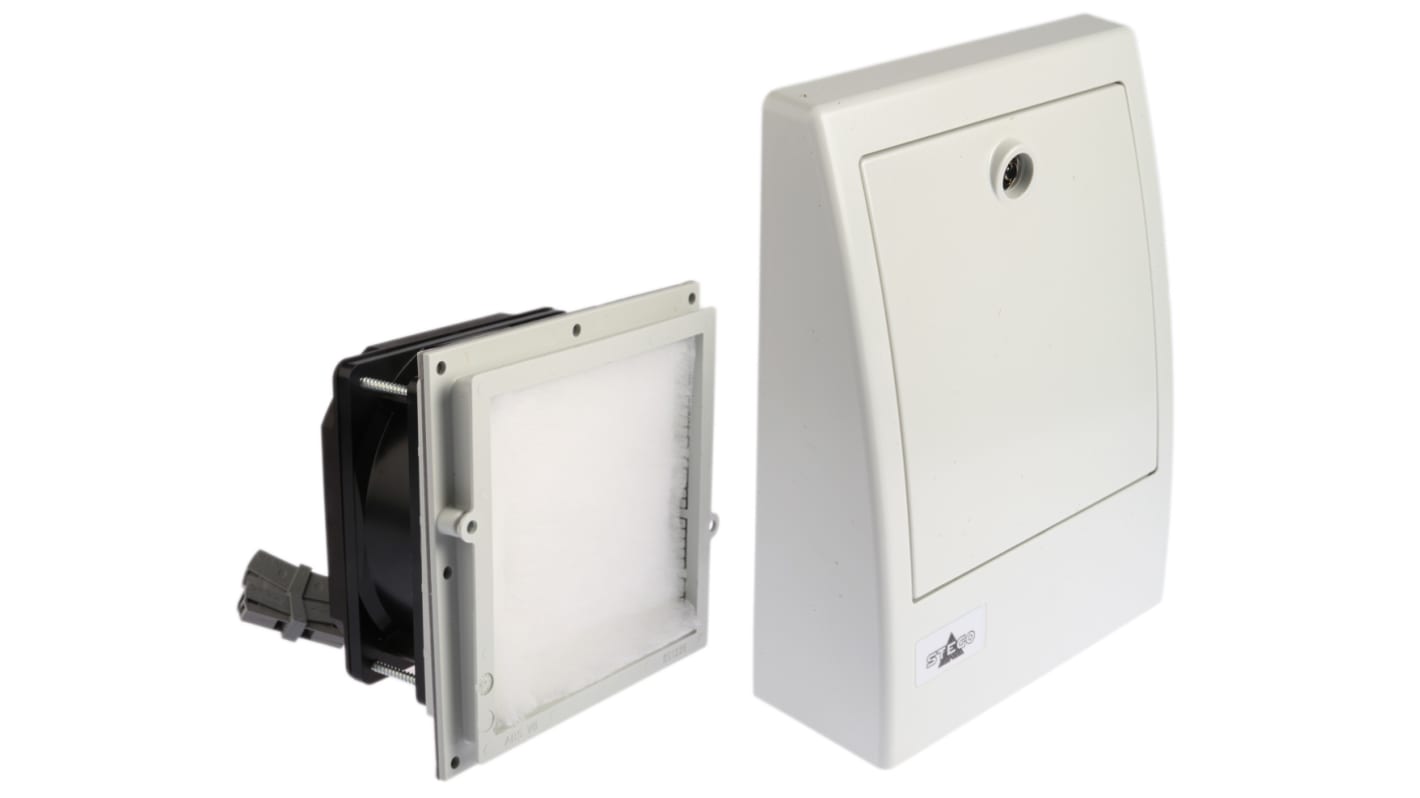

Stego Elektrotechnik Filter Fan
The Stego Elektrotechnik filter fan provides a filtered airflow of 20m³/h and has a supply voltage rating of 230VAC. This fan is designed to optimise climate efficiency within enclosures and cabinets containing electronic/electrical components. The electronic components generate heat and these units disperse that heat with cooler, filtered air from outside the enclosure. By reducing the heat inside the enclosure, this fan improves the performance and reliability of the electronic items and ultimately the cost is reduced. This fan has a face height of 224mm, face width of 165mm and installation depth of 62mm.
Features and Benefits
New air-flap outlet technology for high airflow
Easy mounting
Single filter mat system design
Filter fan located in the lower part of the enclosure draws cleaner, cooler air into the enclosure
FPI system consists of a filter fan and exhaust filter (ordered separately)
Designed for indoor use
Certifications
IP55 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
