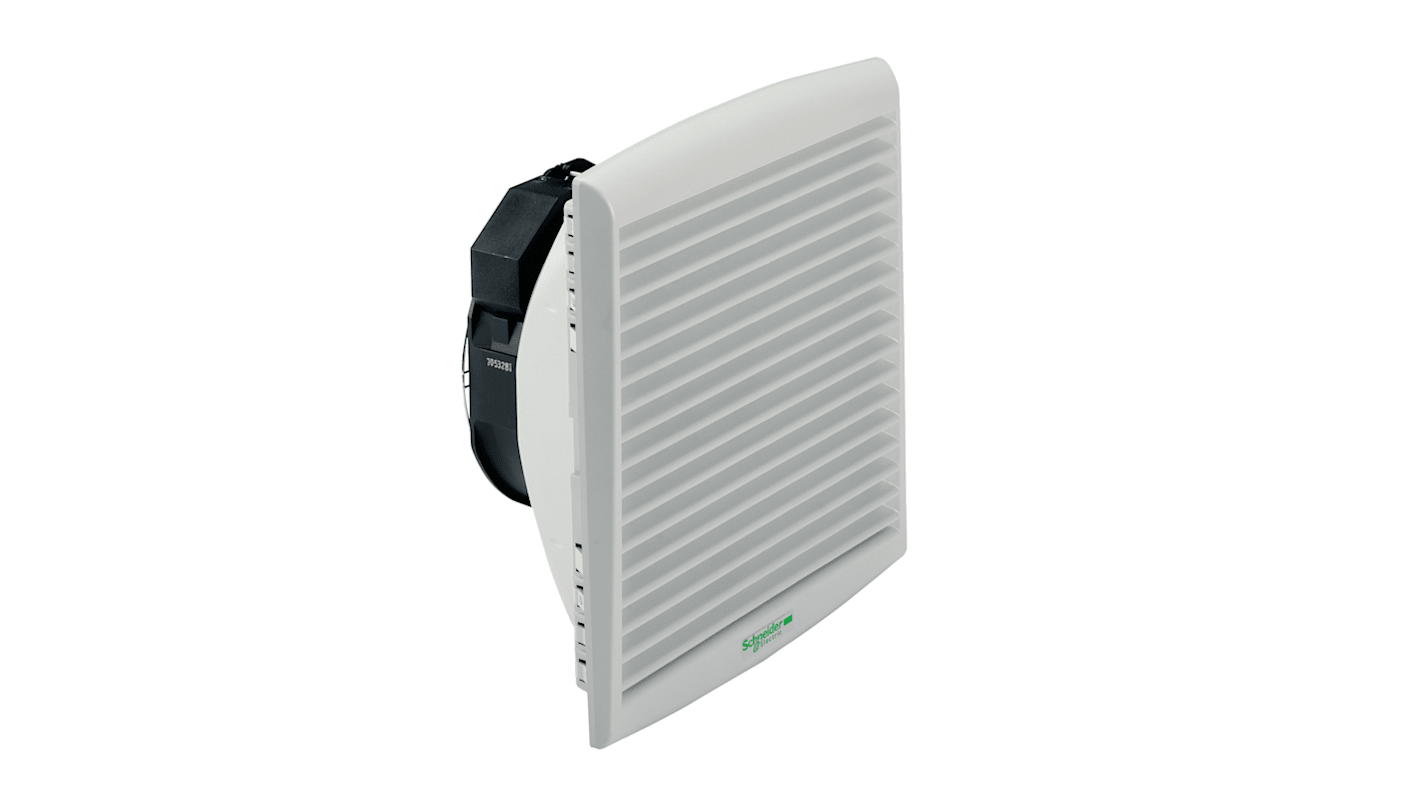

Schneider Electric ClimaSys Series Filter Fan, 24V dc, 190 m³/h Filtered, IP54, 268 mm, 248 mm x
- RS Stock No.:
- 211-2774
- Mfr. Part No.:
- NSYCVF165M24DPF
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
PHP22,161.91
(exc. VAT)
PHP24,821.34
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 2 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from July 30, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP22,161.91 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS Stock No.:
- 211-2774
- Mfr. Part No.:
- NSYCVF165M24DPF
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Filter Fan | |
| Noise Level | 51dB | |
| Filtered Air Flow | 190m³/h | |
| Input Current | 300mA | |
| Input Power | 8W | |
| Installation Depth | 104mm | |
| Supply Voltage | 24V dc | |
| Terminal Type | FASTON | |
| Face Height | 268mm | |
| Face Width | 248mm | |
| Standards/Approvals | REACH, RoHS | |
| Better World Claim | Designed for Disassembly | |
| Better World Product | Yes | |
| IP Rating | IP54 | |
| Bearing Type | Ball | |
| Configuration | Rectangular | |
| Series | ClimaSys | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Filter Fan | ||
Noise Level 51dB | ||
Filtered Air Flow 190m³/h | ||
Input Current 300mA | ||
Input Power 8W | ||
Installation Depth 104mm | ||
Supply Voltage 24V dc | ||
Terminal Type FASTON | ||
Face Height 268mm | ||
Face Width 248mm | ||
Standards/Approvals REACH, RoHS | ||
Better World Claim Designed for Disassembly | ||
Better World Product Yes | ||
IP Rating IP54 | ||
Bearing Type Ball | ||
Configuration Rectangular | ||
Series ClimaSys | ||
Non Compliant
- COO (Country of Origin):
- FR
The Schneider Electric ClimaSys CV range of fans comes with high protection rating and high flow rate of efficiency. The ventilation system is easy to install and the filter can be installed and replaced easily, even during operation. Large range of input voltages are available on all the motors delivered as standard, with alternating 50/60 Hz or direct current.
Easy maintenance
Quick filter replacement
High protection rating
Hot-fitted sealing gasket
UL certified
