Vent-Axia TX7RF T Square Ceiling Extractor Fan, 485 m³/h, 37 dBA, Standard Thermal Overload Protection, Duct Size 175 mm

View all Extractor Fans

Subtotal (1 unit)*

PHP30,743.92

(exc. VAT)

PHP34,433.19

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 2 unit(s) shipping from January 26, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +PHP30,743.92

*price indicative

RS Stock No.:
241-4974
Mfr. Part No.:
TX7RF
Manufacturer:
Vent-Axia
Find similar products by selecting one or more attributes.
Select all

Brand

Vent-Axia

Fan Type

Roof Fan

Product Type

Extractor Fan

Air Flow

485m³/h

Noise Level

37dBA

Mount Type

Ceiling

Colour

Grey

Installation Depth

130mm

Power Consumption

40W

Face Height

258mm

Face Width

268mm

Standards/Approvals

RoHS

Duct Size

175 mm

Supply Voltage

240 V

Configuration

Square

Series

T

Special Features

Standard Thermal Overload Protection

COO (Country of Origin):
GB

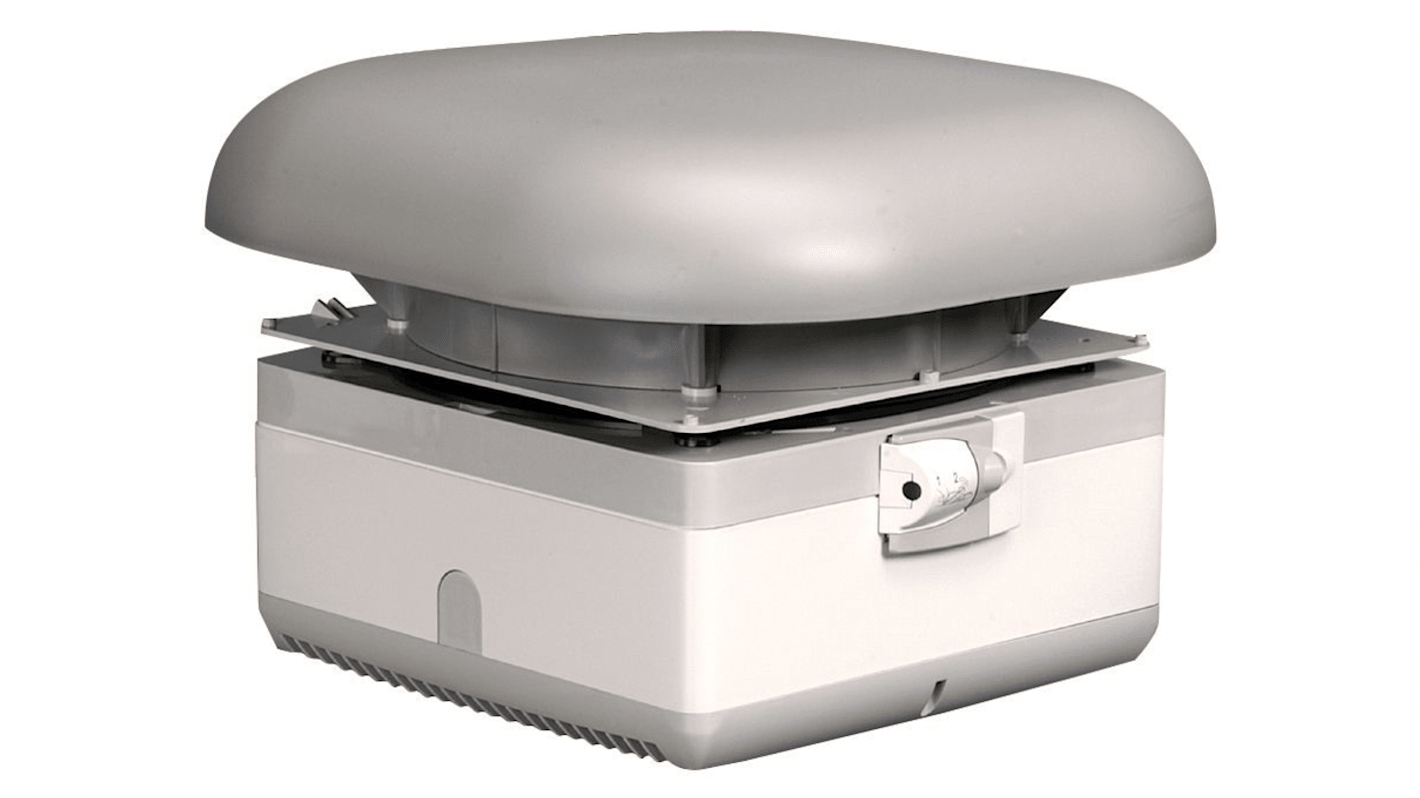

The Vent-Axia T-Series roof model extractor fan with a low profile cowl is suitable for installation in horizontal, angled maximum pitch 30 degree and vertical glass and for fixing plates in roofs. It features a unique speed control pack which enables high, medium or low speed to be pre-set to suit room size or required duty. The Ecotronic controller gives even greater running economy with its minimum speed setting and ’E’ mode.

Patented electronic shutter system ensures quiet, trouble free operation

Easy fit connector top socket, standard on all models

T-Series controllers and sensors save energy by only switching on the units when you want either manually or automatically

Supplied with an automatic louvre shutter which operates on both intake and extract and at any angle of mounting

Operation in ambient temperatures from -40 °C to +50 °C

Fitted with standard thermal overload protection

Supply voltage 220-240V/1/50 Hz
