ROHM BR25H040FVM-5ACTR, 4 kB EEPROM 8-Pin MSOP-8 SPI
- RS Stock No.:
- 265-201P
- Mfr. Part No.:
- BR25H040FVM-5ACTR
- Manufacturer:
- ROHM

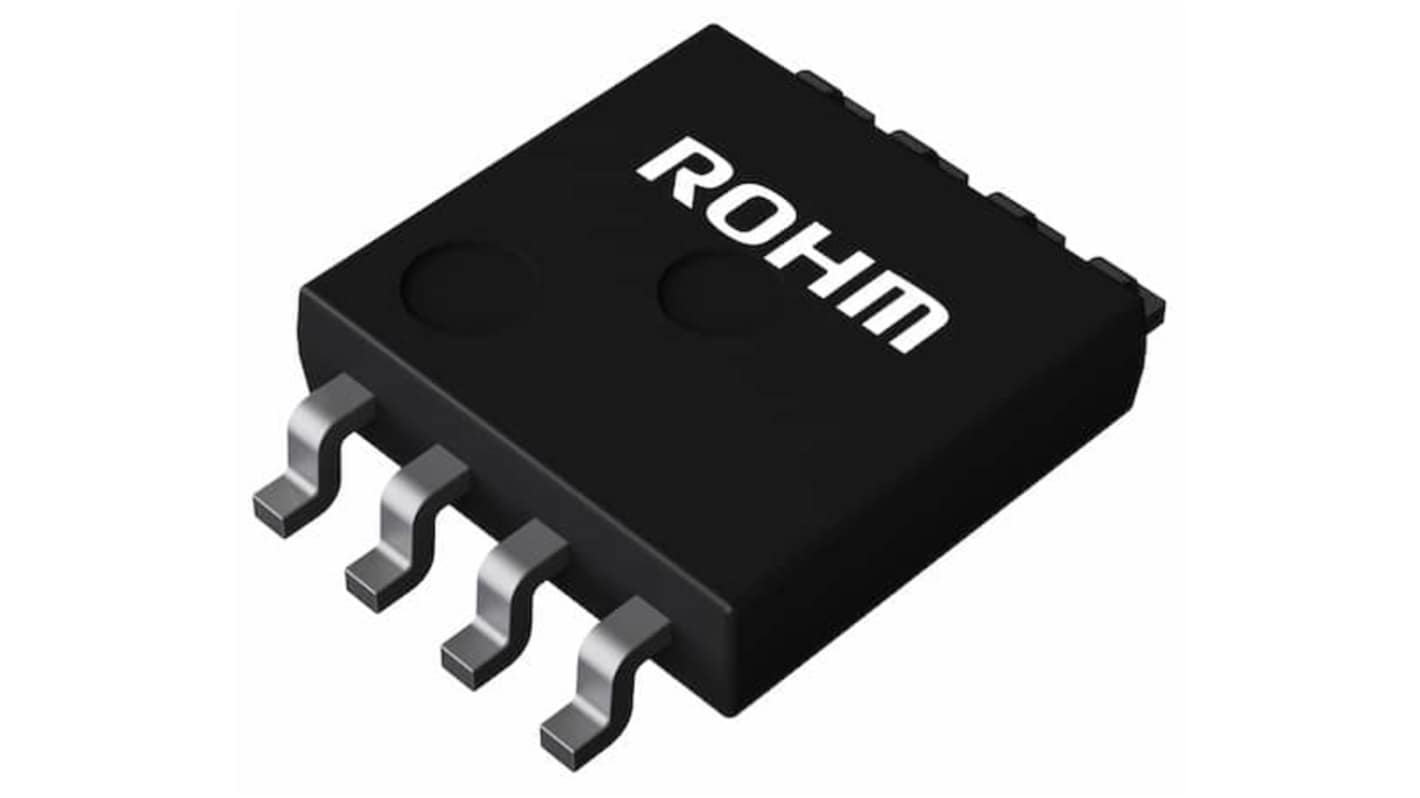

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal 100 units (supplied on a continuous strip)*
PHP4,112.00
(exc. VAT)
PHP4,605.00
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 100 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 100 - 225 | PHP41.12 |
| 250 - 475 | PHP38.089 |
| 500 - 975 | PHP35.057 |
| 1000 + | PHP33.778 |
*price indicative
- RS Stock No.:
- 265-201P
- Mfr. Part No.:
- BR25H040FVM-5ACTR
- Manufacturer:
- ROHM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | EEPROM | |
| Memory Size | 4kB | |
| Interface Type | SPI | |
| Package Type | MSOP-8 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Organisation | 512 x 8 bit | |
| Maximum Clock Frequency | 20MHz | |
| Minimum Supply Voltage | 1.7V | |
| Number of Bits per Word | 8 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 0.9mm | |
| Length | 4mm | |
| Standards/Approvals | RoHS, AEC-Q100 | |
| Width | 2.9mm | |
| Series | BR25H040xxx-5AC | |
| Automotive Standard | AEC-Q100 | |
| Number of Words | 512 | |
| Data Retention | 50year | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type EEPROM | ||
Memory Size 4kB | ||
Interface Type SPI | ||
Package Type MSOP-8 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Organisation 512 x 8 bit | ||
Maximum Clock Frequency 20MHz | ||
Minimum Supply Voltage 1.7V | ||
Number of Bits per Word 8 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Height 0.9mm | ||
Length 4mm | ||
Standards/Approvals RoHS, AEC-Q100 | ||
Width 2.9mm | ||
Series BR25H040xxx-5AC | ||
Automotive Standard AEC-Q100 | ||
Number of Words 512 | ||
Data Retention 50year | ||
The ROHM EEPROM offers advanced write protection features, including software-controlled write protect block settings (1/4, 1/2, or whole memory array). It includes a HOLD function via the HOLDB pin, write prohibition at power-on, and additional write protection through the WPB pin. The design ensures prevention of write mistakes, even at low voltage, providing robust data security.
Address Auto Increment Function at Read Operation
Auto Erase and Auto End Function at Data Rewrite
