ROHM BR24H01ANUX-5ACTR, 1 kB EEPROM 8-Pin VSON I2C
- RS Stock No.:
- 265-195
- Mfr. Part No.:
- BR24H01ANUX-5ACTR
- Manufacturer:
- ROHM

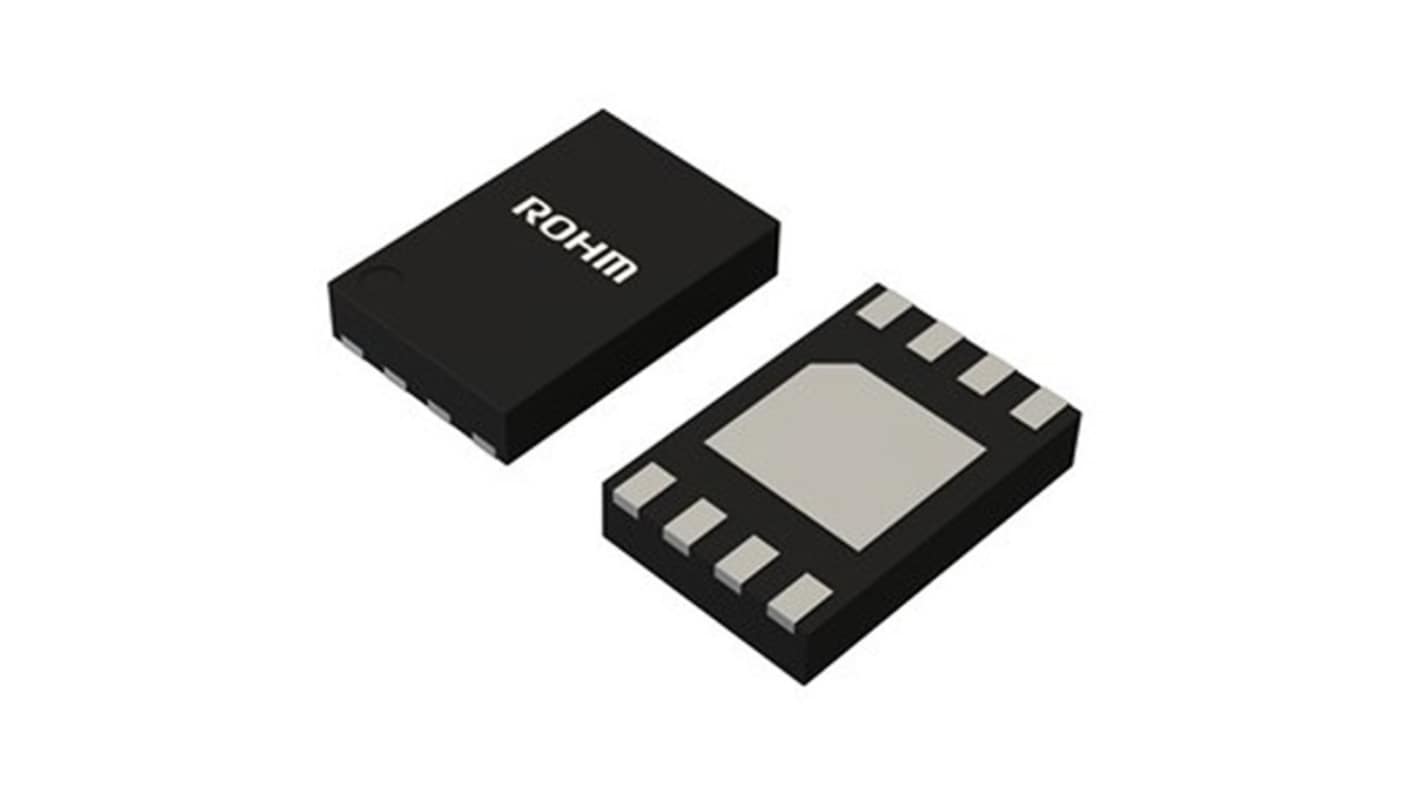

This image is representative of the product range
Bulk discount available
Subtotal (1 tape of 10 units)*
PHP380.53
(exc. VAT)
PHP426.19
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 100 unit(s) shipping from February 09, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tape* |
|---|---|---|
| 10 - 90 | PHP38.053 | PHP380.53 |
| 100 - 240 | PHP36.133 | PHP361.33 |
| 250 - 490 | PHP33.514 | PHP335.14 |
| 500 - 990 | PHP30.809 | PHP308.09 |
| 1000 + | PHP29.674 | PHP296.74 |
*price indicative
- RS Stock No.:
- 265-195
- Mfr. Part No.:
- BR24H01ANUX-5ACTR
- Manufacturer:
- ROHM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Memory Size | 1kB | |
| Product Type | EEPROM | |
| Interface Type | I2C | |
| Package Type | VSON | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Clock Frequency | 1MHz | |
| Organisation | 128 x 8 bit | |
| Minimum Supply Voltage | 1.7V | |
| Maximum Supply Voltage | 5.5V | |
| Number of Bits per Word | 8 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Length | 3mm | |
| Width | 2 mm | |
| Standards/Approvals | RoHS, AEC-Q100 | |
| Series | BR24H01xxx-5AC | |
| Height | 0.6mm | |
| Number of Words | 128 | |
| Automotive Standard | AEC-Q100 | |
| Supply Current | 2mA | |
| Data Retention | 100year | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Memory Size 1kB | ||
Product Type EEPROM | ||
Interface Type I2C | ||
Package Type VSON | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Clock Frequency 1MHz | ||
Organisation 128 x 8 bit | ||
Minimum Supply Voltage 1.7V | ||
Maximum Supply Voltage 5.5V | ||
Number of Bits per Word 8 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Length 3mm | ||
Width 2 mm | ||
Standards/Approvals RoHS, AEC-Q100 | ||
Series BR24H01xxx-5AC | ||
Height 0.6mm | ||
Number of Words 128 | ||
Automotive Standard AEC-Q100 | ||
Supply Current 2mA | ||
Data Retention 100year | ||
The ROHM EEPROM includes a WP (Write Protect) function to prevent miswriting, ensuring data integrity. It also features noise filtering on the SCL/SDA pins and protection against miswriting at low voltage, making it reliable for critical applications.
Initial Delivery State FFh
Low Current Consumption
