ROHM BR24H1MFVT-5ACE2, 1 MB EEPROM 8-Pin TSSOP-B8 I2C
- RS Stock No.:
- 265-194
- Mfr. Part No.:
- BR24H1MFVT-5ACE2
- Manufacturer:
- ROHM

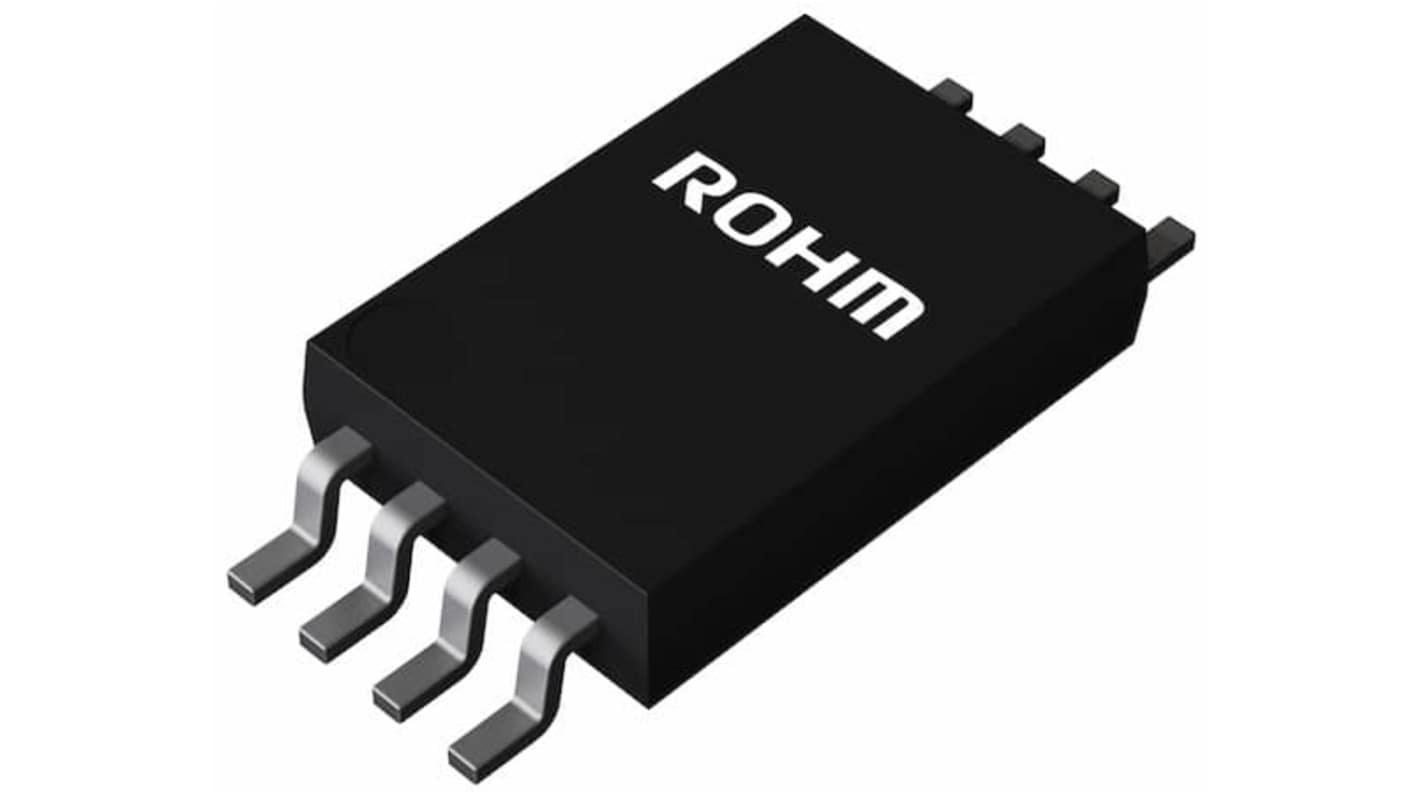

This image is representative of the product range
Bulk discount available
Subtotal (1 tape of 5 units)*
PHP577.77
(exc. VAT)
PHP647.10
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from April 20, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tape* |
|---|---|---|
| 5 - 45 | PHP115.554 | PHP577.77 |
| 50 - 95 | PHP109.794 | PHP548.97 |
| 100 - 495 | PHP101.764 | PHP508.82 |
| 500 - 995 | PHP93.56 | PHP467.80 |
| 1000 + | PHP90.07 | PHP450.35 |
*price indicative
- RS Stock No.:
- 265-194
- Mfr. Part No.:
- BR24H1MFVT-5ACE2
- Manufacturer:
- ROHM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | EEPROM | |
| Memory Size | 1MB | |
| Interface Type | I2C | |
| Package Type | TSSOP-B8 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Clock Frequency | 1MHz | |
| Organisation | 128 K x 8 Bit | |
| Minimum Supply Voltage | 2.5V | |
| Number of Bits per Word | 8 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 1.2mm | |
| Series | BR24H1Mxxx-5AC | |
| Width | 3 mm | |
| Length | 6.4mm | |
| Standards/Approvals | RoHS, AEC-Q100 | |
| Supply Current | 3mA | |
| Number of Words | 128k | |
| Data Retention | 100year | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type EEPROM | ||
Memory Size 1MB | ||
Interface Type I2C | ||
Package Type TSSOP-B8 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Clock Frequency 1MHz | ||
Organisation 128 K x 8 Bit | ||
Minimum Supply Voltage 2.5V | ||
Number of Bits per Word 8 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Height 1.2mm | ||
Series BR24H1Mxxx-5AC | ||
Width 3 mm | ||
Length 6.4mm | ||
Standards/Approvals RoHS, AEC-Q100 | ||
Supply Current 3mA | ||
Number of Words 128k | ||
Data Retention 100year | ||
Automotive Standard AEC-Q100 | ||
The ROHM EEPROM includes a WP (Write Protect) function to prevent miswriting, ensuring data integrity. It also features noise filtering on the SCL/SDA pins and protection against miswriting at low voltage, making it reliable for critical applications.
Initial Delivery State FFh
Low Current Consumption
