ROHM, 16 kB EEPROM 8-Pin VSON I2C
- RS Stock No.:
- 264-376P
- Mfr. Part No.:
- BR24G16NUX-5TR
- Manufacturer:
- ROHM

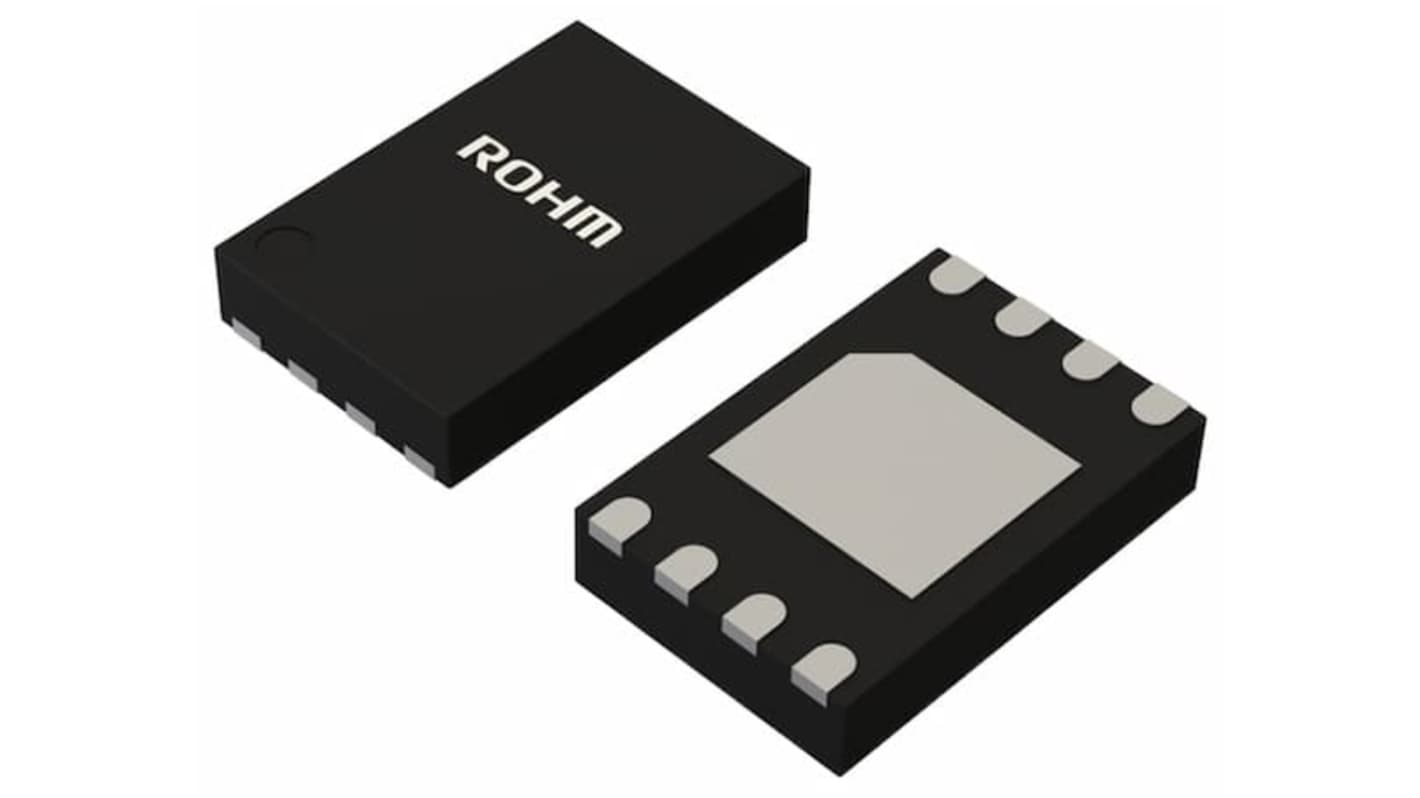

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (100 units, supplied on a continuous strip)*
PHP3,715.00
(exc. VAT)
PHP4,161.00
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Temporarily out of stock
- Shipping from March 11, 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 100 - 225 | PHP37.15 |
| 250 - 475 | PHP34.391 |
| 500 - 975 | PHP31.679 |
| 1000 + | PHP30.49 |
*price indicative
- RS Stock No.:
- 264-376P
- Mfr. Part No.:
- BR24G16NUX-5TR
- Manufacturer:
- ROHM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | EEPROM | |
| Memory Size | 16kB | |
| Interface Type | I2C | |
| Package Type | VSON | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Organisation | 2K x 8 bit | |
| Maximum Clock Frequency | 1MHz | |
| Minimum Supply Voltage | 1.6V | |
| Number of Bits per Word | 8 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 3mm | |
| Width | 2mm | |
| Standards/Approvals | JESD51-7, JESD51-5, JESD51-3, JESD51-2A | |
| Height | 600μm | |
| Series | BR24G16xxx-5 | |
| Data Retention | 200year | |
| Number of Words | 2048 | |
| Automotive Standard | No | |
| Supply Current | 1mA | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type EEPROM | ||
Memory Size 16kB | ||
Interface Type I2C | ||
Package Type VSON | ||
Mount Type Surface | ||
Pin Count 8 | ||
Organisation 2K x 8 bit | ||
Maximum Clock Frequency 1MHz | ||
Minimum Supply Voltage 1.6V | ||
Number of Bits per Word 8 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 3mm | ||
Width 2mm | ||
Standards/Approvals JESD51-7, JESD51-5, JESD51-3, JESD51-2A | ||
Height 600μm | ||
Series BR24G16xxx-5 | ||
Data Retention 200year | ||
Number of Words 2048 | ||
Automotive Standard No | ||
Supply Current 1mA | ||
The ROHM EEPROM offers flexible control via two serial ports, SCL and SDA, with an operating voltage range of 1.6V to 5.5V and supports up to 1MHz operation. It features a 16-byte page write mode and a 2K x 8-bit bit format, making it ideal for a variety of applications requiring efficient data storage and retrieval.
Noise Filter Built in SCL/SDA Pin
Initial Delivery State FFh
