ROHM BR25H1MFVT-5ACE2, 1 kB EEPROM 8-Pin TSSOP-B8 I2C
- RS Stock No.:
- 264-356P
- Mfr. Part No.:
- BR25H1MFVT-5ACE2
- Manufacturer:
- ROHM

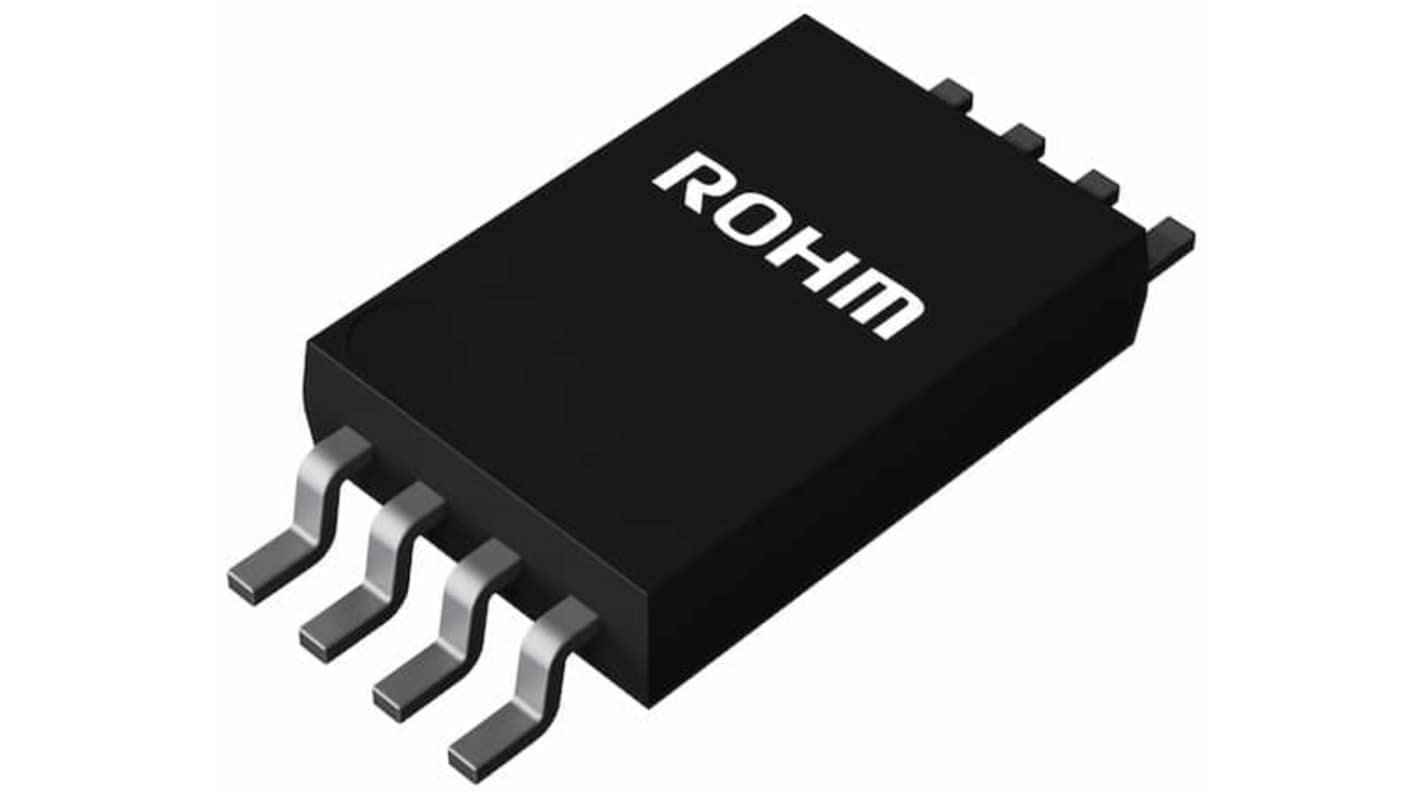

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal 50 units (supplied on a continuous strip)*
PHP6,505.00
(exc. VAT)
PHP7,285.50
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 100 unit(s) shipping from August 17, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 50 - 95 | PHP130.10 |
| 100 - 495 | PHP120.584 |
| 500 - 995 | PHP110.862 |
| 1000 + | PHP106.726 |
*price indicative
- RS Stock No.:
- 264-356P
- Mfr. Part No.:
- BR25H1MFVT-5ACE2
- Manufacturer:
- ROHM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Memory Size | 1kB | |
| Product Type | EEPROM | |
| Interface Type | I2C | |
| Package Type | TSSOP-B8 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Organisation | 131072 x 8 bit | |
| Maximum Clock Frequency | 20MHz | |
| Minimum Supply Voltage | 1.7V | |
| Maximum Supply Voltage | 5.5V | |
| Number of Bits per Word | 8 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 1.2mm | |
| Series | BR25H1Mxxx-5AC | |
| Width | 3mm | |
| Standards/Approvals | AEC-Q100 | |
| Length | 6.4mm | |
| Automotive Standard | AEC-Q100 | |
| Number of Words | 131072 | |
| Data Retention | 50year | |
| Supply Current | 8mA | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Memory Size 1kB | ||
Product Type EEPROM | ||
Interface Type I2C | ||
Package Type TSSOP-B8 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Organisation 131072 x 8 bit | ||
Maximum Clock Frequency 20MHz | ||
Minimum Supply Voltage 1.7V | ||
Maximum Supply Voltage 5.5V | ||
Number of Bits per Word 8 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Height 1.2mm | ||
Series BR25H1Mxxx-5AC | ||
Width 3mm | ||
Standards/Approvals AEC-Q100 | ||
Length 6.4mm | ||
Automotive Standard AEC-Q100 | ||
Number of Words 131072 | ||
Data Retention 50year | ||
Supply Current 8mA | ||
The ROHM EEPROM offers advanced write protection features, including software-controlled write protect block settings (1/4, 1/2, or whole memory array). It includes a HOLD function via the HOLDB pin, write prohibition at power-on, and additional write protection through the WPB pin. The design ensures prevention of write mistakes, even at low voltage, providing robust data security.
Address Auto Increment Function at Read Operation
Auto Erase and Auto End Function at Data Rewrite
