ROHM, 2 kB EEPROM 8-Pin TSSOP-B8 SPI
- RS Stock No.:
- 264-354P
- Mfr. Part No.:
- BR25H020FVT-5ACE2
- Manufacturer:
- ROHM

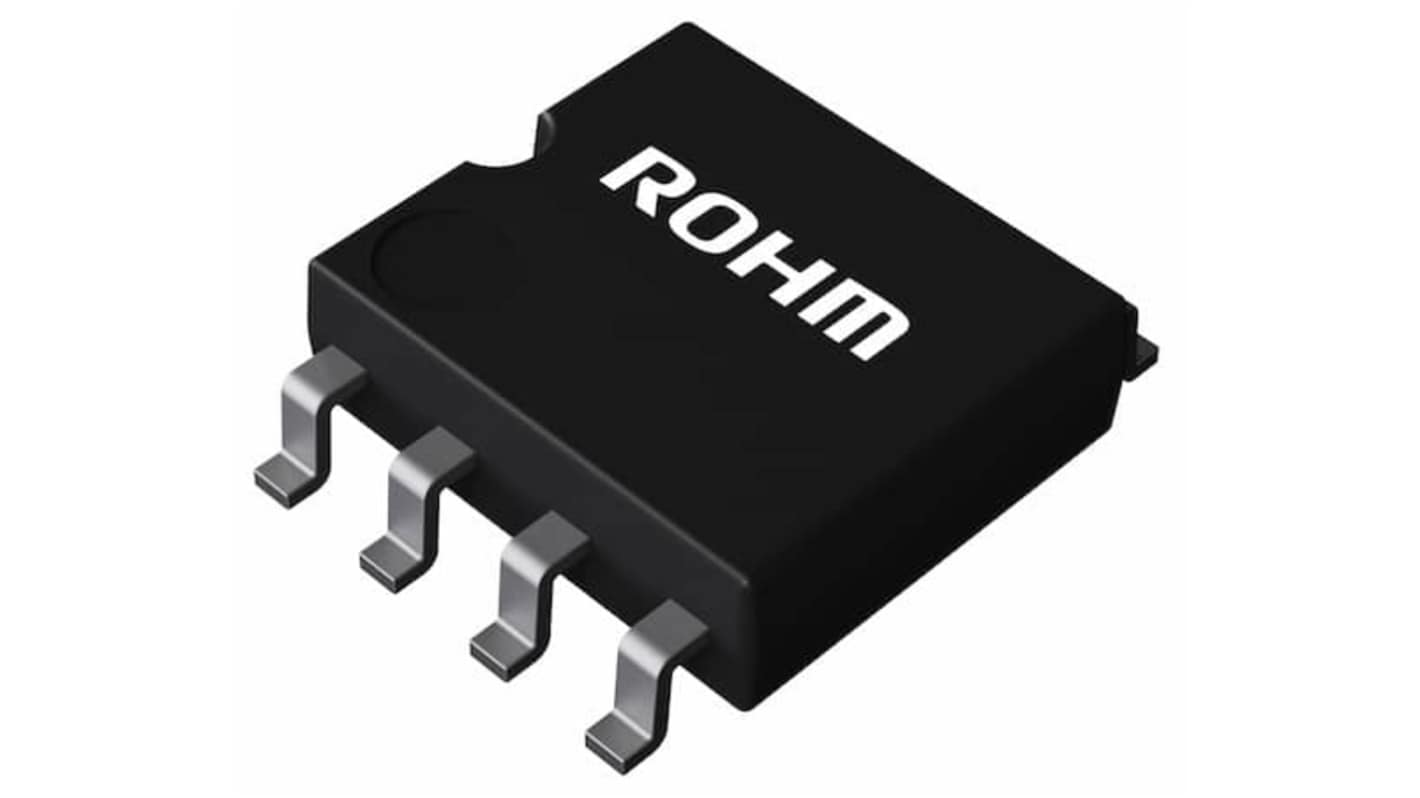

This image is representative of the product range
Bulk discount available
Subtotal 100 units (supplied on a continuous strip)*
PHP2,572.90
(exc. VAT)
PHP2,881.60
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 100 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 100 - 225 | PHP25.729 |
| 250 - 475 | PHP23.844 |
| 500 - 975 | PHP21.959 |
| 1000 + | PHP21.121 |
*price indicative
- RS Stock No.:
- 264-354P
- Mfr. Part No.:
- BR25H020FVT-5ACE2
- Manufacturer:
- ROHM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | EEPROM | |
| Memory Size | 2kB | |
| Interface Type | SPI | |
| Package Type | TSSOP-B8 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Clock Frequency | 20MHz | |
| Organisation | 256 x 8 bit | |
| Minimum Supply Voltage | 1.7V | |
| Number of Bits per Word | 8 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Width | 3 mm | |
| Series | BR25H020xxx-5AC | |
| Height | 1.2mm | |
| Standards/Approvals | AEC-Q100 | |
| Length | 6.4mm | |
| Automotive Standard | AEC-Q100 | |
| Data Retention | 50year | |
| Supply Current | 8mA | |
| Number of Words | 256 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type EEPROM | ||
Memory Size 2kB | ||
Interface Type SPI | ||
Package Type TSSOP-B8 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Clock Frequency 20MHz | ||
Organisation 256 x 8 bit | ||
Minimum Supply Voltage 1.7V | ||
Number of Bits per Word 8 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Width 3 mm | ||
Series BR25H020xxx-5AC | ||
Height 1.2mm | ||
Standards/Approvals AEC-Q100 | ||
Length 6.4mm | ||
Automotive Standard AEC-Q100 | ||
Data Retention 50year | ||
Supply Current 8mA | ||
Number of Words 256 | ||
The ROHM EEPROM offers advanced write protection features, including software-controlled write protect block settings (1/4, 1/2, or whole memory array). It includes a HOLD function via the HOLDB pin, write prohibition at power-on, and additional write protection through the WPB pin. The design ensures prevention of write mistakes, even at low voltage, providing robust data security.
Address Auto Increment Function at Read Operation
Auto Erase and Auto End Function at Data Rewrite
