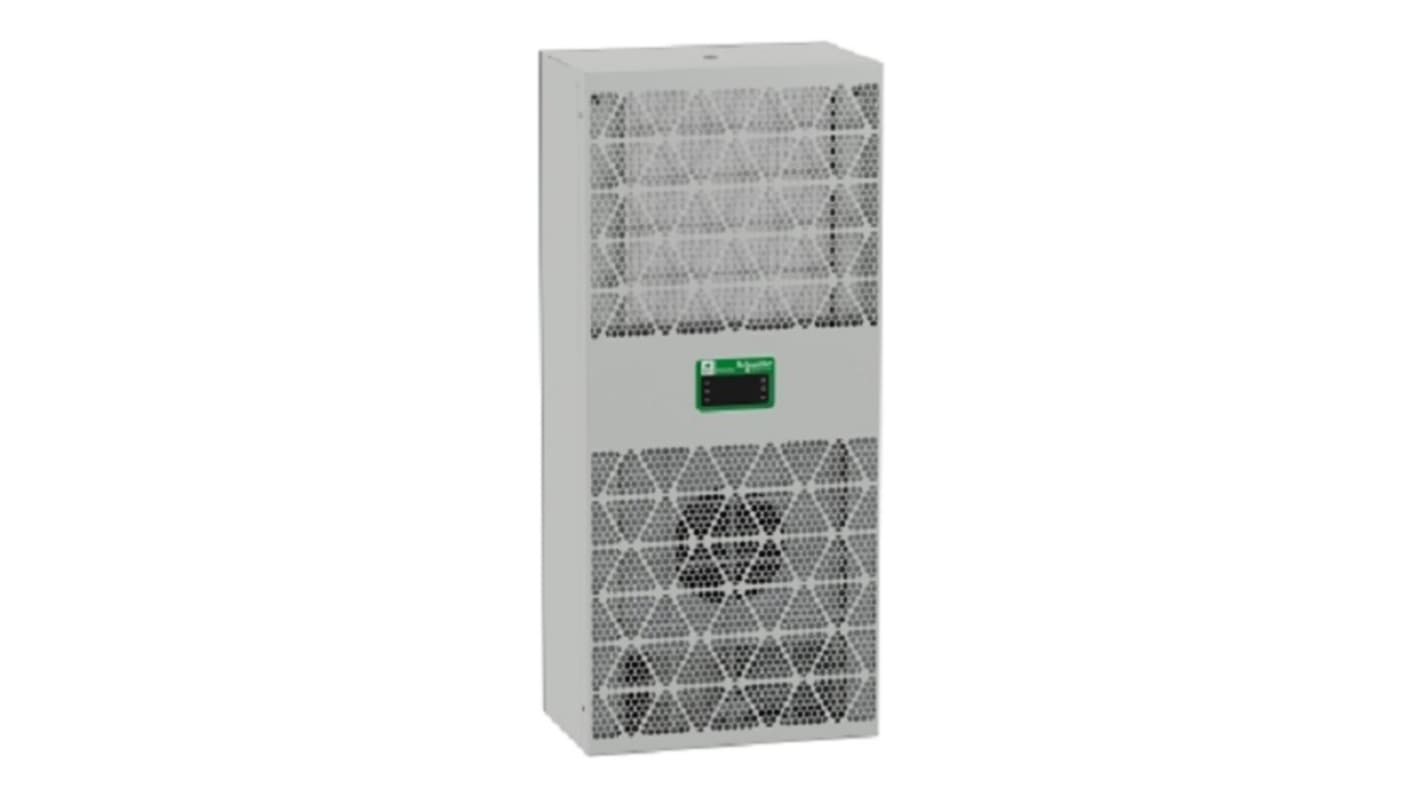

Schneider Electric ClimaSys Series Enclosure Cooling Unit, 900W, 550 m³/h 460 V ac 215 mm
- RS Stock No.:
- 285-5714
- Mfr. Part No.:
- NSYCU8002P4DG
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
PHP222,829.74
(exc. VAT)
PHP249,569.31
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from March 16, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP222,829.74 |
*price indicative
- RS Stock No.:
- 285-5714
- Mfr. Part No.:
- NSYCU8002P4DG
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Enclosure Cooling Unit | |
| Maximum Cooling Power | 900W | |
| Air Flow | 550m³/h | |
| Noise Level | 70dB | |
| Mount Type | Side | |
| Input Power | 900W | |
| Connection Type | Screw | |
| Power Consumption | 530W | |
| Maximum Supply Voltage | 460V ac | |
| IP Rating | IP24, IP55 | |
| Certification | UL | |
| Material | Steel | |
| Min Temperature Setting | 20°C | |
| Maximum Temperature Setting | 55°C | |
| Type of installation | Indoor | |
| Series | ClimaSys | |
| Standards/Approvals | EN/ISO 12100, EN 61000-6-3, EN 61000-3-2, EN 60335-2-40, EN 60335-1, EN 14511, EN 61000-3-3, EN 61000-6-2, EN/IEC 63000:2018 | |
| Weight | 27.4kg | |
| Depth | 215mm | |
| Cooler Type | Cooling Unit | |
| Nominal Current | 2.0A | |
| Refrigerant Type | R134A | |
| Frequency | 60Hz | |
| Cooling Capacity | 900W | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Enclosure Cooling Unit | ||
Maximum Cooling Power 900W | ||
Air Flow 550m³/h | ||
Noise Level 70dB | ||
Mount Type Side | ||
Input Power 900W | ||
Connection Type Screw | ||
Power Consumption 530W | ||
Maximum Supply Voltage 460V ac | ||
IP Rating IP24, IP55 | ||
Certification UL | ||
Material Steel | ||
Min Temperature Setting 20°C | ||
Maximum Temperature Setting 55°C | ||
Type of installation Indoor | ||
Series ClimaSys | ||
Standards/Approvals EN/ISO 12100, EN 61000-6-3, EN 61000-3-2, EN 60335-2-40, EN 60335-1, EN 14511, EN 61000-3-3, EN 61000-6-2, EN/IEC 63000:2018 | ||
Weight 27.4kg | ||
Depth 215mm | ||
Cooler Type Cooling Unit | ||
Nominal Current 2.0A | ||
Refrigerant Type R134A | ||
Frequency 60Hz | ||
Cooling Capacity 900W | ||
RoHS Status: Exempt
- COO (Country of Origin):
- MT
The Schneider Electric side connected cooling unit with a power consumption of 900W is the perfect solution for indoor enclosure mounting. With a sleek steel design and a noise level of 70dB, this cooling unit offers efficient temperature control for your equipment.
Rated Power of 900W for efficient cooling performance
Electronic controller for precise temperature control
Ambient Air Temperature range of 5-55°C for versatile use in different environments
Energy Efficiency Ratio of 1.8 for cost-effective operation
IP55 Degree of Protection for reliable performance even in challenging conditions
UL and IEC certifications for quality assurance
RoHS compliant for environmental sustainability
