Schneider Electric ClimaSys Series Enclosure Fan, 550 m³/h 230 V ac 260 mm 260 mm 260 mm
- RS Stock No.:
- 177-9013
- Mfr. Part No.:
- NSYCVF550M230FB
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
PHP19,001.86
(exc. VAT)
PHP21,282.08
(inc. VAT)
Add 1 unit to get free delivery
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP19,001.86 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 177-9013
- Mfr. Part No.:
- NSYCVF550M230FB
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Enclosure Fan | |
| Air Flow | 550m³/h | |
| Noise Level | 60dB | |
| Connection Type | Spring Clamp | |
| Maximum Supply Voltage | 230V ac | |
| IP Rating | IP55, IP44 | |
| Min Temperature Setting | -40°C | |
| Certification | CE, CSA, Eco-design directive 2009/125/EC, UL | |
| Depth | 260mm | |
| Height | 260mm | |
| Width | 260 mm | |
| Series | ClimaSys | |
| Weight | 1.7kg | |
| Standards/Approvals | No | |
| Better World Product | Yes | |
| Frequency | 60Hz | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Enclosure Fan | ||
Air Flow 550m³/h | ||
Noise Level 60dB | ||
Connection Type Spring Clamp | ||
Maximum Supply Voltage 230V ac | ||
IP Rating IP55, IP44 | ||
Min Temperature Setting -40°C | ||
Certification CE, CSA, Eco-design directive 2009/125/EC, UL | ||
Depth 260mm | ||
Height 260mm | ||
Width 260 mm | ||
Series ClimaSys | ||
Weight 1.7kg | ||
Standards/Approvals No | ||
Better World Product Yes | ||
Frequency 60Hz | ||

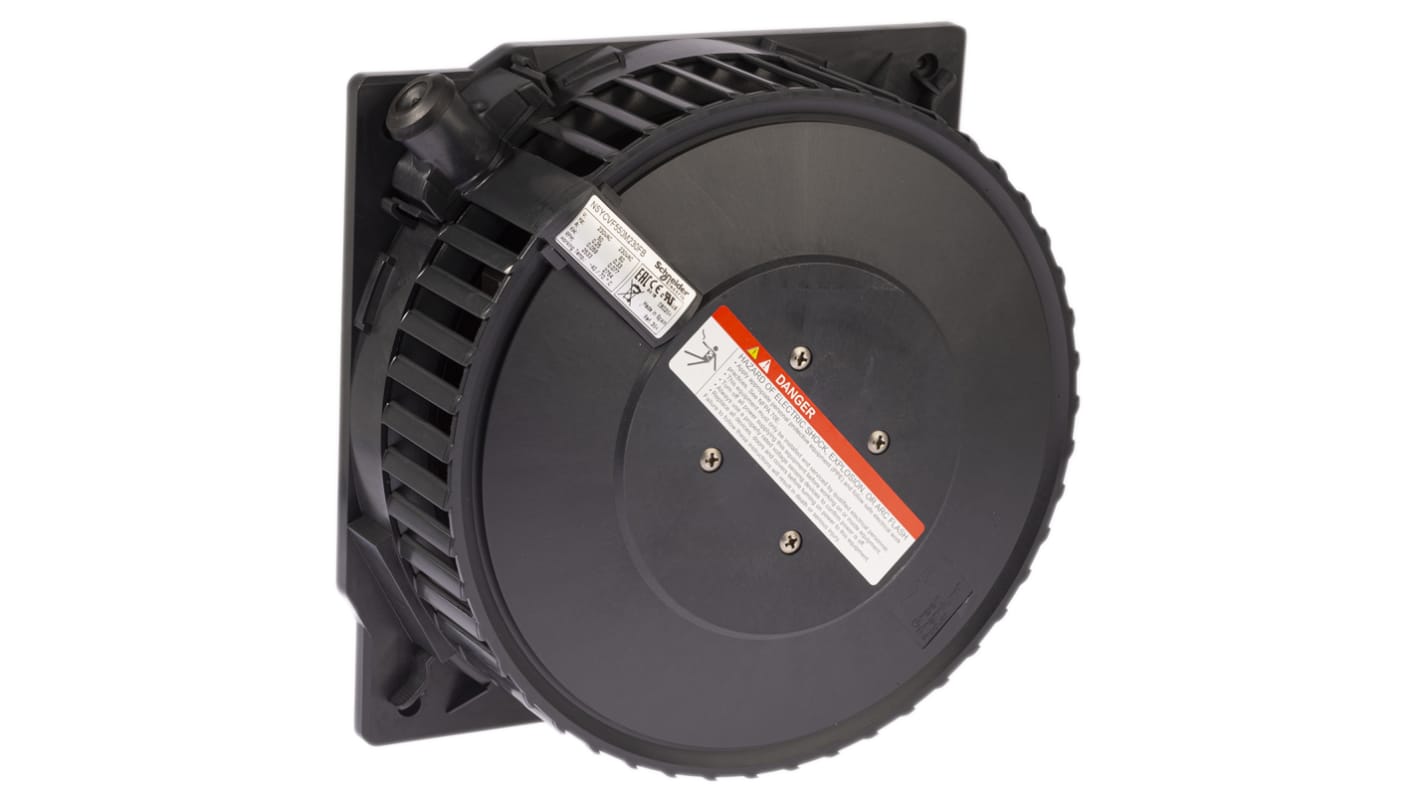

Schneider Electric Enclosure Fan Module
The Schneider Electric enclosure fan module is ClimaSys standard outdoor HD fanbox. It requires 230V supply voltage with air flow at 550m³/h. It is a demand-oriented ventilation device designed to provide cooling with nominal current of 400mA.
Features and Benefits
• 350Pa static pressure
• Fanbox without grill and filter
• High energy efficiency
• Lightweight
• Requires less space
Applications
• Hospitals
• IT and electrical cabinets
• Offices
• Schools
Certifications
• CE certified
• CSA certified
• UL approved
