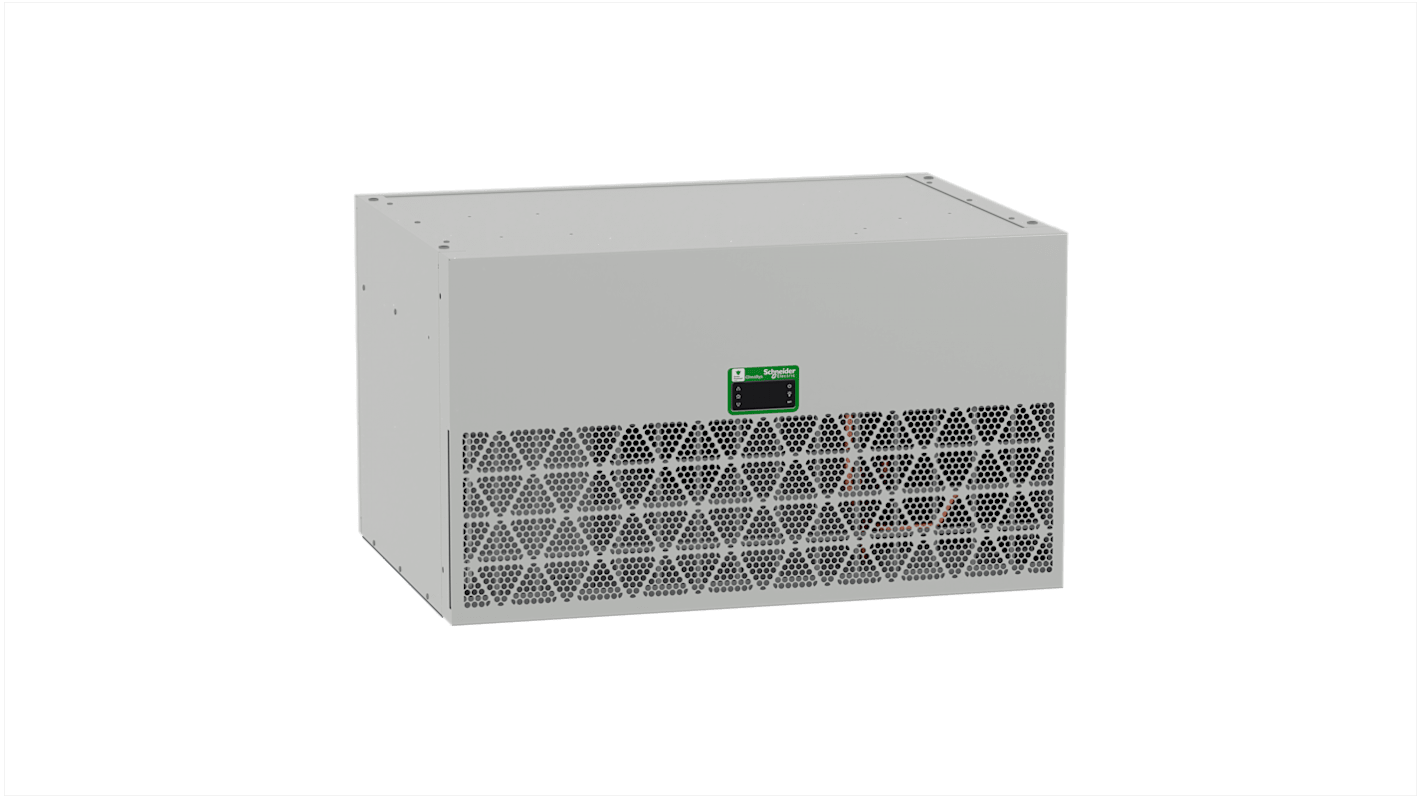

Schneider Electric ClimaSys Series Enclosure Cooling Unit, 4000W, 1200 m³/h 460 V ac 575 mm
- RS Stock No.:
- 285-5412
- Mfr. Part No.:
- NSYCU4K3P4RDG
- Manufacturer:
- Schneider Electric
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 285-5412
- Mfr. Part No.:
- NSYCU4K3P4RDG
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Maximum Cooling Power | 4000W | |
| Product Type | Enclosure Cooling Unit | |
| Air Flow | 1200m³/h | |
| Noise Level | 72dB | |
| Input Power | 4000W | |
| Mount Type | Roof | |
| Connection Type | Screw | |
| Power Consumption | 1770W | |
| IP Rating | IP54, IP24 | |
| Maximum Supply Voltage | 460V ac | |
| Maximum Temperature Setting | 55°C | |
| Min Temperature Setting | 20°C | |
| Certification | UL | |
| Material | Steel | |
| Type of installation | Indoor Roof | |
| Weight | 57.2kg | |
| Standards/Approvals | EN 60335-2-40, EN 60335-1, EN 61000-6-3, EN/IEC 63000:2018, EN 14511, EN 61000-3-3, EN/ISO 12100, EN 61000-3-2, EN 61000-6-2 | |
| Series | ClimaSys | |
| Depth | 575mm | |
| Cooler Type | Roof Connected | |
| Nominal Current | 4.1A | |
| Frequency | 60Hz | |
| Cooling Capacity | 4000W | |
| Refrigerant Type | R134A | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Maximum Cooling Power 4000W | ||
Product Type Enclosure Cooling Unit | ||
Air Flow 1200m³/h | ||
Noise Level 72dB | ||
Input Power 4000W | ||
Mount Type Roof | ||
Connection Type Screw | ||
Power Consumption 1770W | ||
IP Rating IP54, IP24 | ||
Maximum Supply Voltage 460V ac | ||
Maximum Temperature Setting 55°C | ||
Min Temperature Setting 20°C | ||
Certification UL | ||
Material Steel | ||
Type of installation Indoor Roof | ||
Weight 57.2kg | ||
Standards/Approvals EN 60335-2-40, EN 60335-1, EN 61000-6-3, EN/IEC 63000:2018, EN 14511, EN 61000-3-3, EN/ISO 12100, EN 61000-3-2, EN 61000-6-2 | ||
Series ClimaSys | ||
Depth 575mm | ||
Cooler Type Roof Connected | ||
Nominal Current 4.1A | ||
Frequency 60Hz | ||
Cooling Capacity 4000W | ||
Refrigerant Type R134A | ||
RoHS Status: Exempt
- COO (Country of Origin):
- MT
The Schneider Electric cooling unit by is designed for roof installation in enclosures, providing efficient cooling power of 4000W. With features like electronic controller for precise temperature settings and energy efficiency ratio of 2.7, this unit ensures optimal performance while maintaining a low noise level of 72 dB.
Roof installation design for enclosures
4000W cooling power with energy efficiency ratio of 2.7
Electronic controller for precise temperature settings
Low noise level of 72 dB for quiet operation
Compact dimensions for easy installation and maintenance
Compliant with EU RoHS Directive for environmental sustainability
