Rittal SK Series Enclosure Cooling Unit, 1000W, 290 m³/h 230 V ac 550 mm 280 mm 120 mm
- RS Stock No.:
- 224-0055
- Mfr. Part No.:
- 3364500
- Manufacturer:
- Rittal
Subtotal (1 unit)*
PHP86,782.95
(exc. VAT)
PHP97,196.90
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from May 11, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP86,782.95 |
*price indicative
- RS Stock No.:
- 224-0055
- Mfr. Part No.:
- 3364500
- Manufacturer:
- Rittal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Product Type | Enclosure Cooling Unit | |
| Maximum Cooling Power | 1000W | |
| Air Flow | 290m³/h | |
| Input Power | 37W | |
| Mount Type | Wall | |
| Connection Type | G 3/8 in External Thread, 1/2 in Connector Sleeve | |
| Power Consumption | 38W | |
| IP Rating | IP55 | |
| Maximum Supply Voltage | 230V ac | |
| Type of installation | External Mounting or Full Internal Mounting | |
| Certification | cUL, FTTA uR, cUr, CSA, UL | |
| Material | Copper, Brass (Cu/Cuzn) | |
| Maximum Temperature Setting | 55°C | |
| Min Temperature Setting | 1°C | |
| Series | SK | |
| Standards/Approvals | CSA UL+C-UL-FTTA UR+C-UR | |
| Weight | 9kg | |
| Depth | 120mm | |
| Width | 280 mm | |
| Height | 550mm | |
| Cooling Capacity | 1kW | |
| Nominal Current | 0.18A | |
| Frequency | 60Hz | |
| Refrigerant Type | Water | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Product Type Enclosure Cooling Unit | ||
Maximum Cooling Power 1000W | ||
Air Flow 290m³/h | ||
Input Power 37W | ||
Mount Type Wall | ||
Connection Type G 3/8 in External Thread, 1/2 in Connector Sleeve | ||
Power Consumption 38W | ||
IP Rating IP55 | ||
Maximum Supply Voltage 230V ac | ||
Type of installation External Mounting or Full Internal Mounting | ||
Certification cUL, FTTA uR, cUr, CSA, UL | ||
Material Copper, Brass (Cu/Cuzn) | ||
Maximum Temperature Setting 55°C | ||
Min Temperature Setting 1°C | ||
Series SK | ||
Standards/Approvals CSA UL+C-UL-FTTA UR+C-UR | ||
Weight 9kg | ||
Depth 120mm | ||
Width 280 mm | ||
Height 550mm | ||
Cooling Capacity 1kW | ||
Nominal Current 0.18A | ||
Frequency 60Hz | ||
Refrigerant Type Water | ||
- COO (Country of Origin):
- IT

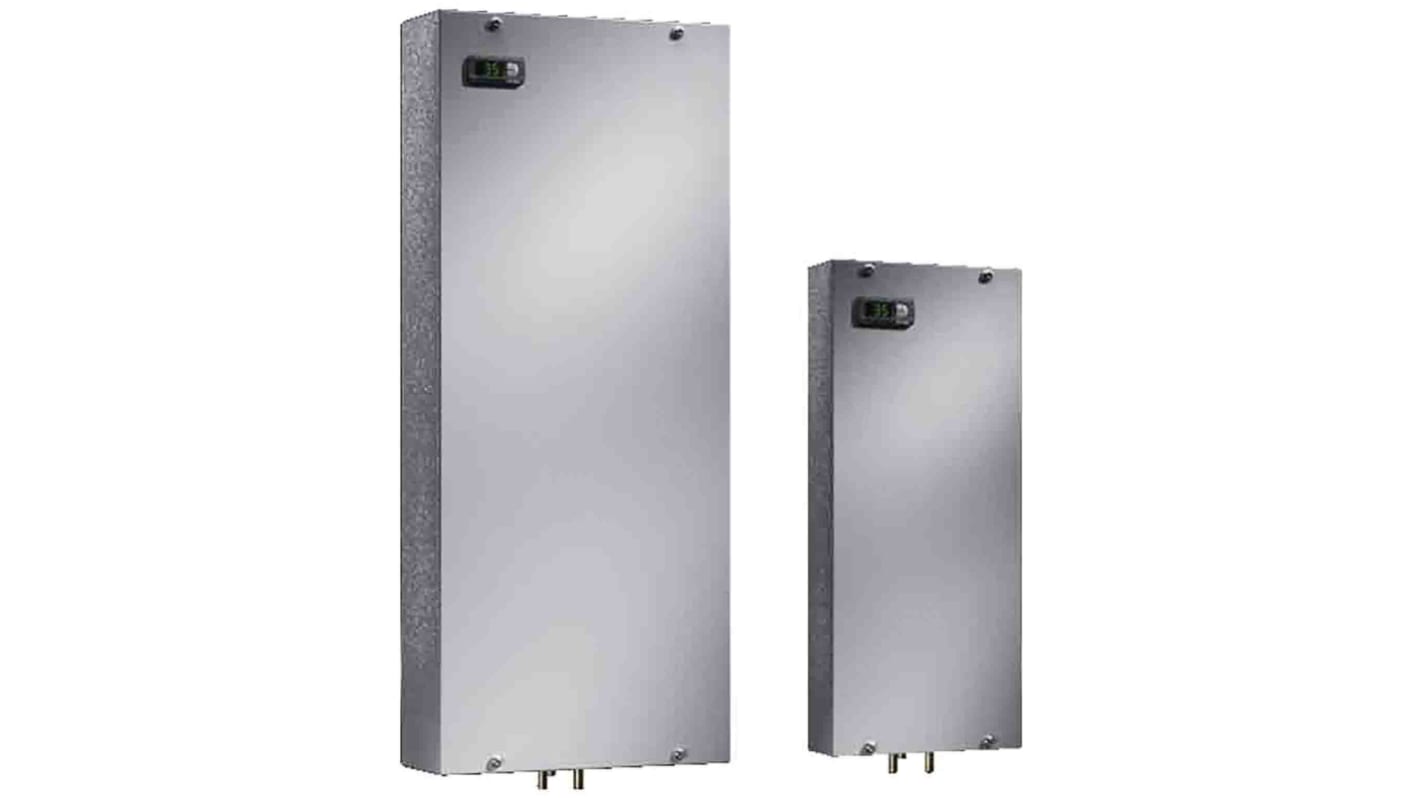

The Rittal SK series is the wall-mounted heat exchanger for use in harsh environments and temperature ranges up to +70 °C. Its user-friendly assembly plus flexible water connection options. External mounting or full internal mounting are supported. The total cooling output of the heat exchanger is 1kW.
IP degree of protection is IP55
Colour is RAL 7035
Operation temperature is +1 °C to 70 °C
