Rittal SK Series Enclosure Cooling Unit, 1000W, 0.4 m³/h 230 V ac 550 mm 280 mm 120 mm

RS Stock No.:: 224-0054
Mfr. Part No.:: 3364100
Manufacturer:: Rittal

Rittal SK Series Enclosure Cooling Unit, 1000W, 0.4 m³/h 230 V ac 550 mm 280 mm 120 mm

Subtotal (1 unit)*

PHP67,883.33

(exc. VAT)

PHP76,029.33

(inc. VAT)

Add 1 unit to get free delivery

Orders below PHP3,000.00 (exc. VAT) cost PHP150.00.

In Stock

1 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP67,883.33

*price indicative

RS Stock No.:: 224-0054
Mfr. Part No.:: 3364100
Manufacturer:: Rittal

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Rittal
	Product Type	Enclosure Cooling Unit
	Maximum Cooling Power	1000W
	Air Flow	0.4m³/h
	Input Power	37W
	Mount Type	Wall
	Connection Type	G 3/8 in External Thread, 1/2 in Connector Sleeve
	Power Consumption	38W
	Maximum Supply Voltage	230V ac
	IP Rating	IP55
	Min Temperature Setting	1°C
	Maximum Temperature Setting	55°C
	Material	Copper, Brass (Cu/Cuzn)
	Type of installation	External Mounting or Full Internal Mounting
	Certification	FTTA uR, UL, cUL, cUr, CSA
	Standards/Approvals	CSA UL+C-UL-FTTA UR+C-UR
	Width	280 mm
	Series	SK
	Depth	120mm
	Weight	9kg
	Height	550mm
	Cooler Type	Water Cooler
	Nominal Current	0.18A
	Frequency	60Hz
	Refrigerant Type	Water
	Cooling Capacity	1kW

	Select all
	Brand Rittal
	Product Type Enclosure Cooling Unit
	Maximum Cooling Power 1000W
	Air Flow 0.4m³/h
	Input Power 37W
	Mount Type Wall
	Connection Type G 3/8 in External Thread, 1/2 in Connector Sleeve
	Power Consumption 38W
	Maximum Supply Voltage 230V ac
	IP Rating IP55
	Min Temperature Setting 1°C
	Maximum Temperature Setting 55°C
	Material Copper, Brass (Cu/Cuzn)
	Type of installation External Mounting or Full Internal Mounting
	Certification FTTA uR, UL, cUL, cUr, CSA
	Standards/Approvals CSA UL+C-UL-FTTA UR+C-UR
	Width 280 mm
	Series SK
	Depth 120mm
	Weight 9kg
	Height 550mm
	Cooler Type Water Cooler
	Nominal Current 0.18A
	Frequency 60Hz
	Refrigerant Type Water
	Cooling Capacity 1kW

COO (Country of Origin):: IT

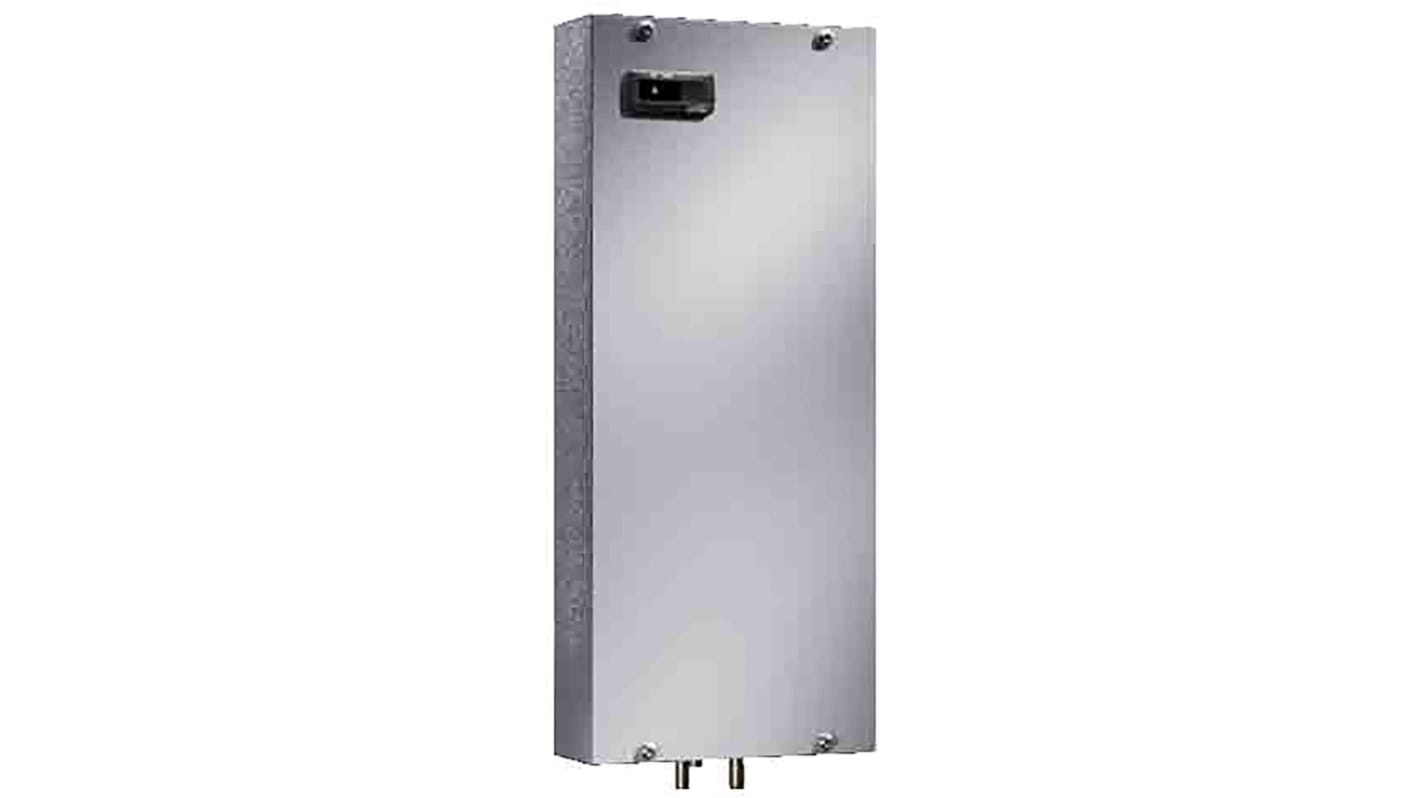

Rittal Enclosure Cooling Unit, Fully Wired, 9kg Weight - SK Series - 3364100

Protect electrical components in your panel from getting too hot with this enclosure cooling unit from Rittal. It swaps out the warm air for a cooler breeze to help maintain the ideal ambient temperature. As the appliance is fully wired and ready for connection, you can swiftly set it up without complex tools. The unit supports full internal or external mounting for flexible installation. All sealing and assembly parts are included, so you can put it together in a jiffy.

Features & Benefits

• Internal circuit airflow of 345m³/h for efficient performance

• Temperature setting range of +20°C to +55°C for versatile configuration

• Copper and brass water-carrying components for resistance to corrosion

Applications

• HVAC systems

• Factory floors

• Warehouses and loading bays

What source of cool air does this device use?

The unit runs on a water-based connection system that delivers cool air to the output.
