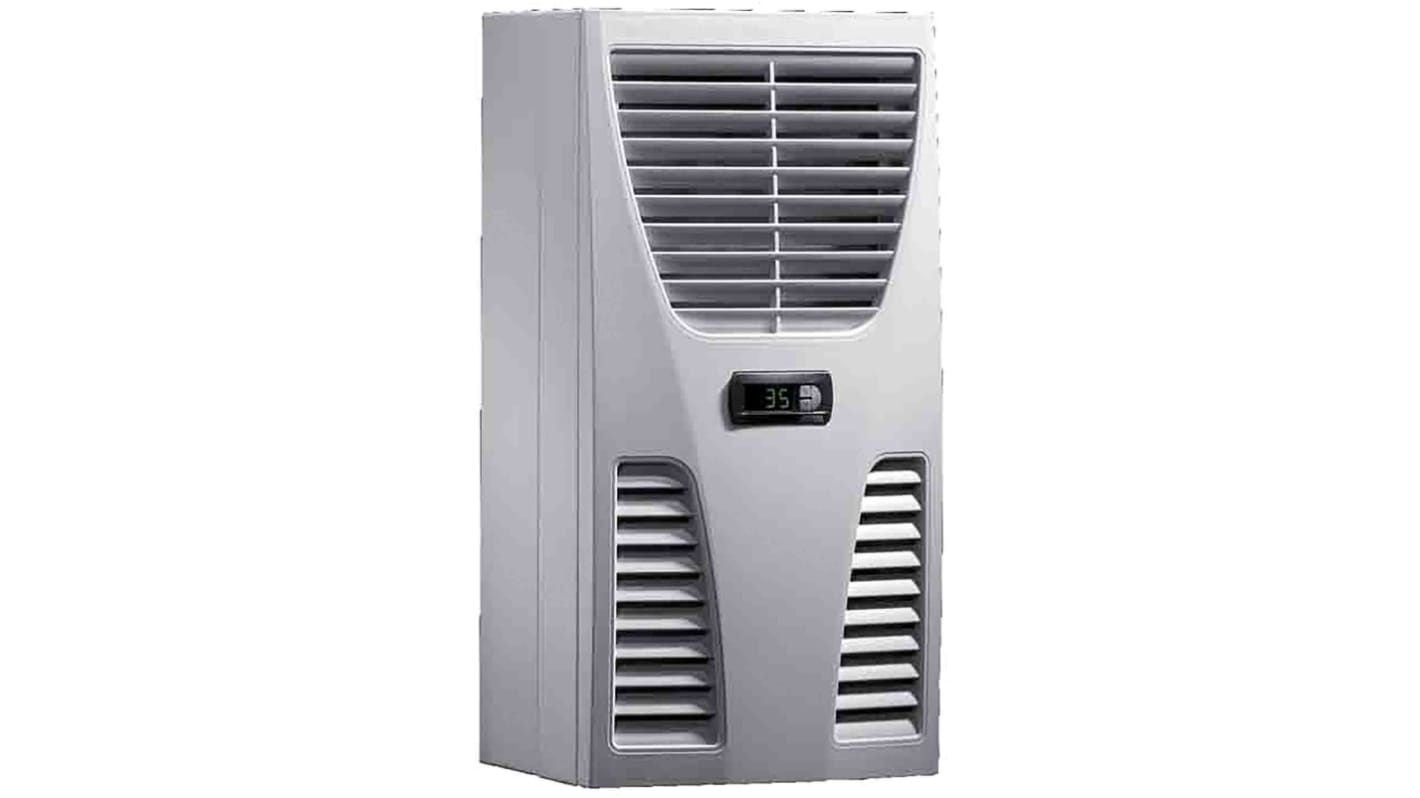

Rittal TopTherm Blue e Series Enclosure Cooling Unit, 890W, 625 m³/h 115V ac 550 mm 280mm 280 mm
- RS Stock No.:
- 224-0049
- Mfr. Part No.:
- 3361510
- Manufacturer:
- Rittal
Subtotal (1 unit)*
PHP211,567.95
(exc. VAT)
PHP236,956.10
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Stocked by manufacturer
- Ready to ship from June 01, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP211,567.95 |
*price indicative
- RS Stock No.:
- 224-0049
- Mfr. Part No.:
- 3361510
- Manufacturer:
- Rittal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Maximum Cooling Power | 890W | |
| Product Type | Enclosure Cooling Unit | |
| Air Flow | 625m³/h | |
| Mount Type | Wall | |
| Input Power | 550W | |
| Connection Type | Plug-In Terminal Strip | |
| Power Consumption | 660W | |
| IP Rating | IP34, IP54 | |
| Maximum Supply Voltage | 115V ac | |
| Certification | UL, cUL, uR, CCC Exception Letter CSA, cUr, FTTA | |
| Material | Sheet Steel | |
| Maximum Temperature Setting | 55°C | |
| Min Temperature Setting | -40°C | |
| Type of installation | Wall-Mounted | |
| Series | TopTherm Blue e | |
| Width | 280mm | |
| Weight | 22kg | |
| Depth | 280mm | |
| Standards/Approvals | CCC exception letter CSA UL + C-UL - FTTA UR + C-UR | |
| Height | 550mm | |
| Cooler Type | Blue wall Mounted Cooling Units | |
| Frequency | 60Hz | |
| Nominal Current | 5.3A | |
| Refrigerant Type | R134A | |
| Cooling Capacity | 0.75kW | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Maximum Cooling Power 890W | ||
Product Type Enclosure Cooling Unit | ||
Air Flow 625m³/h | ||
Mount Type Wall | ||
Input Power 550W | ||
Connection Type Plug-In Terminal Strip | ||
Power Consumption 660W | ||
IP Rating IP34, IP54 | ||
Maximum Supply Voltage 115V ac | ||
Certification UL, cUL, uR, CCC Exception Letter CSA, cUr, FTTA | ||
Material Sheet Steel | ||
Maximum Temperature Setting 55°C | ||
Min Temperature Setting -40°C | ||
Type of installation Wall-Mounted | ||
Series TopTherm Blue e | ||
Width 280mm | ||
Weight 22kg | ||
Depth 280mm | ||
Standards/Approvals CCC exception letter CSA UL + C-UL - FTTA UR + C-UR | ||
Height 550mm | ||
Cooler Type Blue wall Mounted Cooling Units | ||
Frequency 60Hz | ||
Nominal Current 5.3A | ||
Refrigerant Type R134A | ||
Cooling Capacity 0.75kW | ||
- COO (Country of Origin):
- IT
The Rittal SK series is the energy efficient wall mounted cooling units with integral e-comfort controller with integral e-comfort controller and RiNano coating on the condenser as standard. The total cooling output is 0.89 kW with 5.3 A rated current and the material used is the sheet steel.
Nano coated condenser
Fully wired ready for connection
External circuit IP 34
Internal circuit IP 54
May be linked to the IoT interface via the Blue e IoT adaptor
