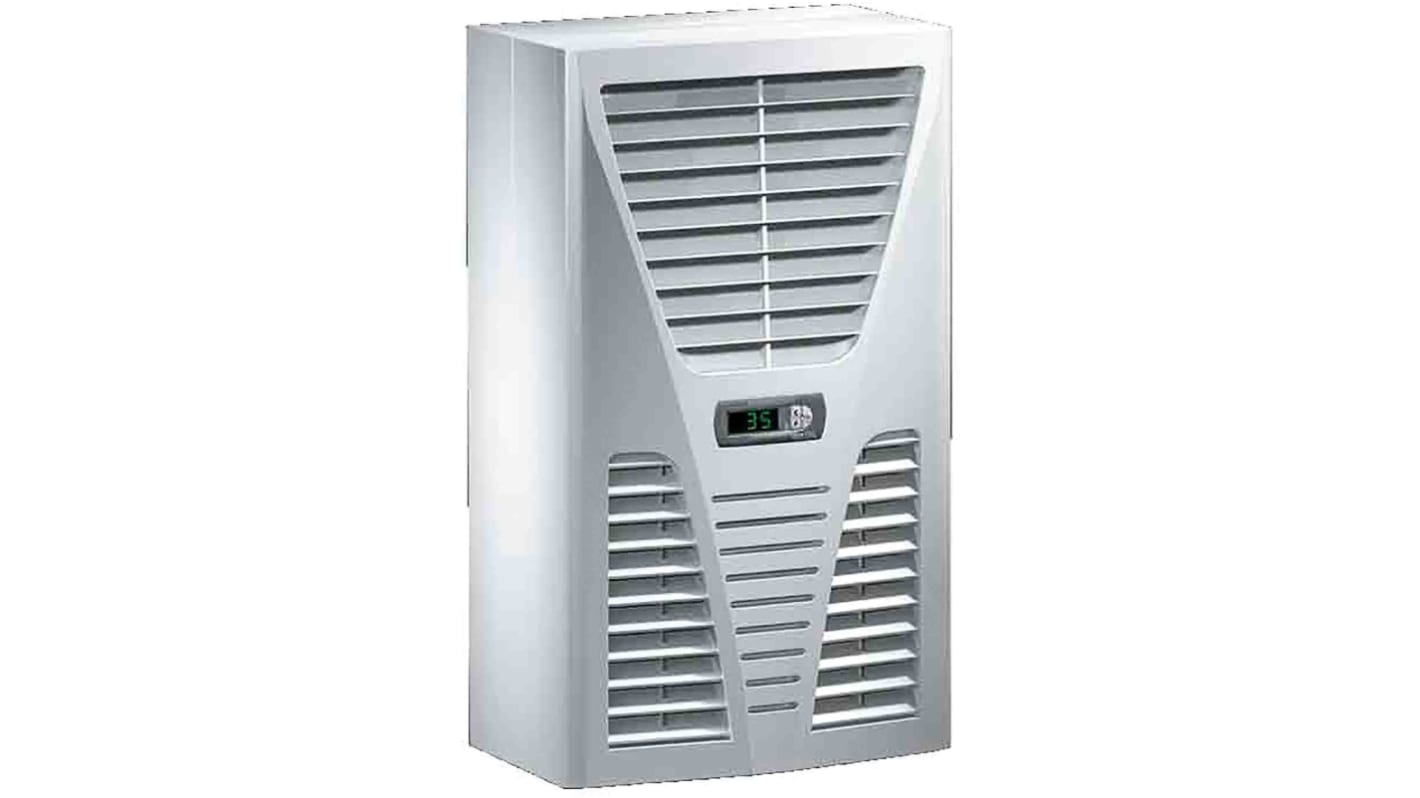

Rittal TopTherm Blue e Series Enclosure Cooling Unit, 850W, 230 m³/h 230 V ac 550 mm 280 mm 280 mm
- RS Stock No.:
- 224-0048
- Mfr. Part No.:
- 3361500
- Manufacturer:
- Rittal
Subtotal (1 unit)*
PHP216,387.19
(exc. VAT)
PHP242,353.65
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP216,387.19 |
*price indicative
- RS Stock No.:
- 224-0048
- Mfr. Part No.:
- 3361500
- Manufacturer:
- Rittal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Product Type | Enclosure Cooling Unit | |
| Maximum Cooling Power | 850W | |
| Air Flow | 230m³/h | |
| Input Power | 400W | |
| Mount Type | Wall | |
| Connection Type | Plug-In Terminal Strip | |
| Maximum Supply Voltage | 230V ac | |
| IP Rating | IP34, IP54 | |
| Min Temperature Setting | 20°C | |
| Maximum Temperature Setting | 55°C | |
| Material | Sheet Steel | |
| Certification | CSA, uR, CCC, FTTA, FCC, EAC, cUL, cUr, UL | |
| Standards/Approvals | EAC, UR+C-UR, CCC, CSA, FCC, UL+C-UL-FTTA | |
| Series | TopTherm Blue e | |
| Width | 280 mm | |
| Height | 550mm | |
| Depth | 280mm | |
| Weight | 22kg | |
| Cooler Type | Wall Mounted | |
| Nominal Current | 2.7A | |
| Refrigerant Type | R134A | |
| Frequency | 60Hz | |
| Cooling Capacity | 0.5kW | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Product Type Enclosure Cooling Unit | ||
Maximum Cooling Power 850W | ||
Air Flow 230m³/h | ||
Input Power 400W | ||
Mount Type Wall | ||
Connection Type Plug-In Terminal Strip | ||
Maximum Supply Voltage 230V ac | ||
IP Rating IP34, IP54 | ||
Min Temperature Setting 20°C | ||
Maximum Temperature Setting 55°C | ||
Material Sheet Steel | ||
Certification CSA, uR, CCC, FTTA, FCC, EAC, cUL, cUr, UL | ||
Standards/Approvals EAC, UR+C-UR, CCC, CSA, FCC, UL+C-UL-FTTA | ||
Series TopTherm Blue e | ||
Width 280 mm | ||
Height 550mm | ||
Depth 280mm | ||
Weight 22kg | ||
Cooler Type Wall Mounted | ||
Nominal Current 2.7A | ||
Refrigerant Type R134A | ||
Frequency 60Hz | ||
Cooling Capacity 0.5kW | ||
- COO (Country of Origin):
- IT
Rittal Enclosure Cooling Unit, 550m³/h External Air Flow, Wall Mounting - TopTherm Series - 3361500
Keep your enclosures ventilated with this enclosure cooling unit from Rittal. It has a powerful external circuit airflow of 550m³/h and an internal circuit airflow of 230m³/h, which helps to prevent your equipment from overheating. For versatility, you can set the temperature between +20°C and +55°C. The unit has a wall-mount design for easy and convenient installation.
• Internal circuit has an IP54 rating for resistance to limited amounts of dust and water splashes
• Comes fully wired for ease of installation
• Made of sheet steel for resistance to corrosion and impact
Applications
• Server rooms
• Office spaces
• Data centres
The Rittal SK series is the energy efficient wall mounted cooling units with integral e-comfort controller with RiNano coating on the condenser as standard. The total cooling output is 0.77 kW with 2.7 A rated current and the material used is the sheet steel.
What's the size of this cooling unit?
Nano coated condenser
Fully wired ready for connection
External circuit IP 34
Internal circuit IP 54
May be linked to the IoT interface via the Blue e IoT adaptor
This cooling unit has compact dimensions of 550 (H) x 280 (W) x 280mm (D), so it will take up minimal space in your enclosure.
