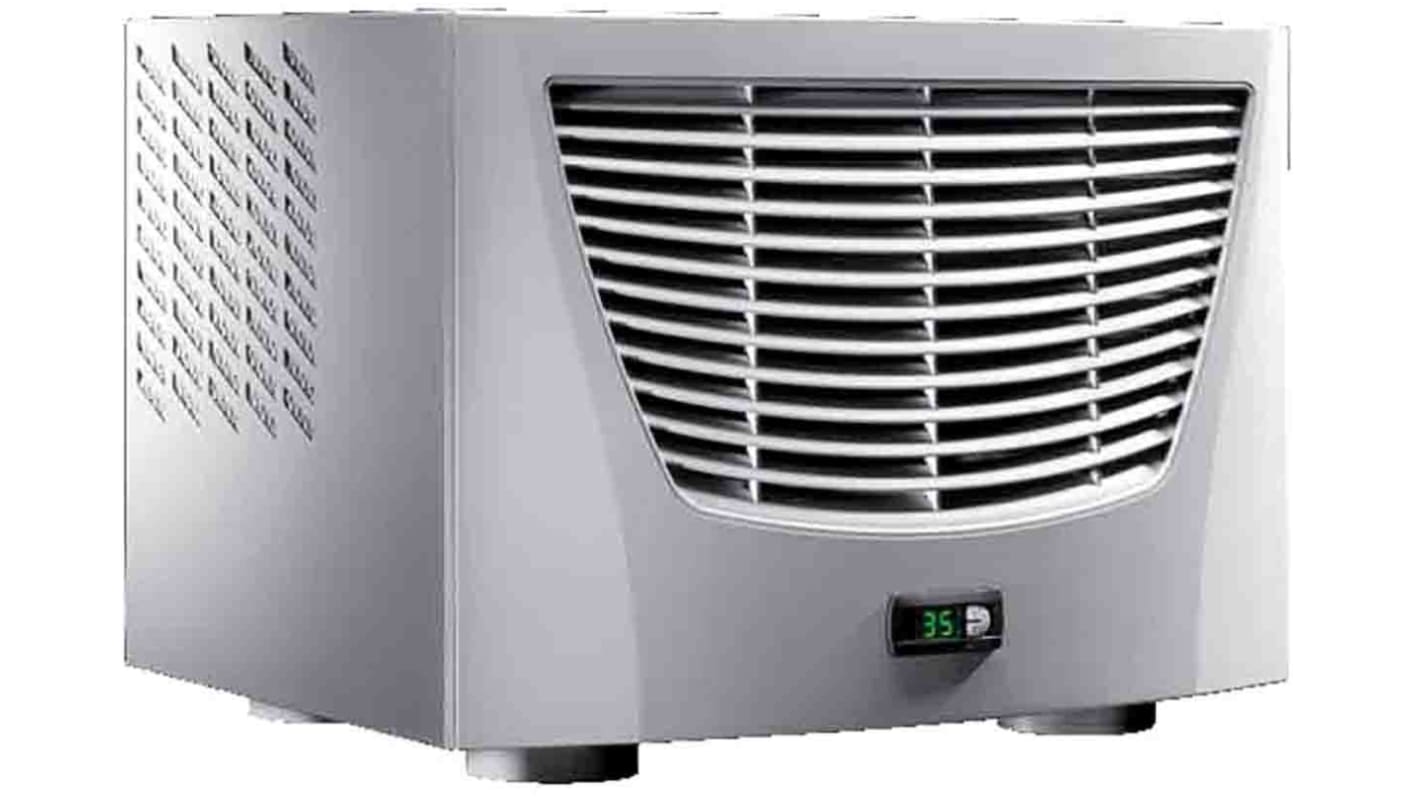

Rittal TopTherm Blue e Series Enclosure Cooling Unit, 770W, 800 m³/h 230 V ac 417 mm 597 mm 380 mm
- RS Stock No.:
- 224-0047
- Mfr. Part No.:
- 3359600
- Manufacturer:
- Rittal
Subtotal (1 unit)*
PHP244,088.13
(exc. VAT)
PHP273,378.71
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from May 08, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP244,088.13 |
*price indicative
- RS Stock No.:
- 224-0047
- Mfr. Part No.:
- 3359600
- Manufacturer:
- Rittal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Maximum Cooling Power | 770W | |
| Product Type | Enclosure Cooling Unit | |
| Air Flow | 800m³/h | |
| Mount Type | Roof | |
| Input Power | 330W | |
| Connection Type | Plug-In Terminal Strip | |
| IP Rating | IP54, IP34 | |
| Maximum Supply Voltage | 230V ac | |
| Min Temperature Setting | 20°C | |
| Maximum Temperature Setting | 55°C | |
| Material | Stainless Steel | |
| Type of installation | Roof Mount | |
| Certification | cUL, uR, cUr, UL, FTTA, EAC | |
| Depth | 380mm | |
| Height | 417mm | |
| Standards/Approvals | UL+C-UL-FTTA UR+C-UR EAC | |
| Series | TopTherm Blue e | |
| Width | 597 mm | |
| Weight | 32kg | |
| Cooler Type | Roof Connected | |
| Cooling Capacity | 4kW | |
| Refrigerant Type | R134A | |
| Nominal Current | 3.7A | |
| Frequency | 60Hz | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Maximum Cooling Power 770W | ||
Product Type Enclosure Cooling Unit | ||
Air Flow 800m³/h | ||
Mount Type Roof | ||
Input Power 330W | ||
Connection Type Plug-In Terminal Strip | ||
IP Rating IP54, IP34 | ||
Maximum Supply Voltage 230V ac | ||
Min Temperature Setting 20°C | ||
Maximum Temperature Setting 55°C | ||
Material Stainless Steel | ||
Type of installation Roof Mount | ||
Certification cUL, uR, cUr, UL, FTTA, EAC | ||
Depth 380mm | ||
Height 417mm | ||
Standards/Approvals UL+C-UL-FTTA UR+C-UR EAC | ||
Series TopTherm Blue e | ||
Width 597 mm | ||
Weight 32kg | ||
Cooler Type Roof Connected | ||
Cooling Capacity 4kW | ||
Refrigerant Type R134A | ||
Nominal Current 3.7A | ||
Frequency 60Hz | ||
- COO (Country of Origin):
- IT
The Rittal SK series is the roof mounted cooling units with integral e-comfort controller with RiNano coating on the condenser and electric condensate evaporation as standard. The total cooling output is 0.77 kW with 2.8 A rated current and the material used is the stainless steel.
Nano coated condenser
Fully wired ready for connection
External circuit IP 34
Internal circuit IP 54
May be linked to the IoT interface via the Blue e IoT adaptor
