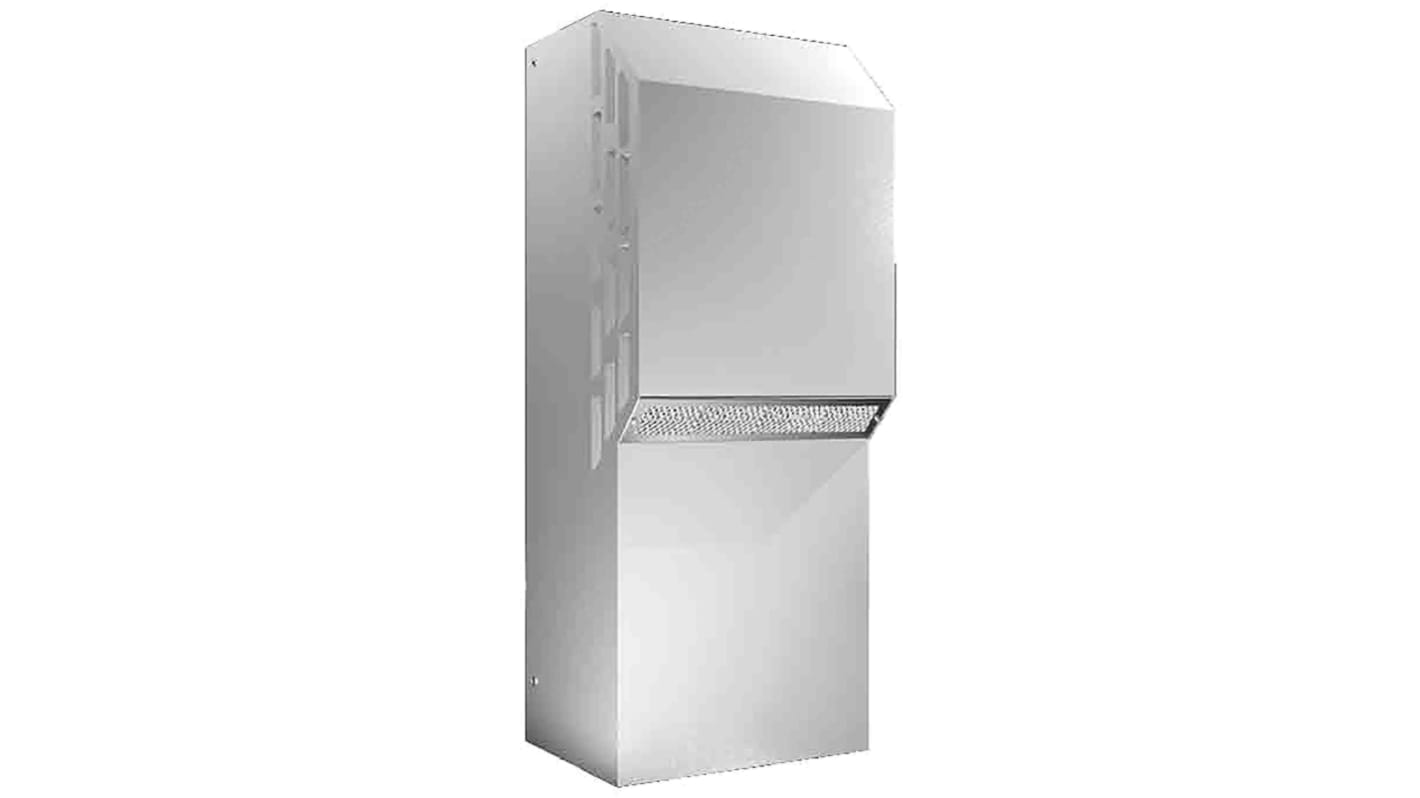

Rittal TopTherm Blue e Series Enclosure Cooling Unit, 1490W, 540 m³/h 400V ac 1020 mm 405mm 358 mm
- RS Stock No.:
- 224-0011
- Mfr. Part No.:
- 3305548
- Manufacturer:
- Rittal
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP359,224.87
(exc. VAT)
PHP402,331.85
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Stocked by manufacturer
- Ready to ship from August 31, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP359,224.87 |
| 5 - 9 | PHP352,040.39 |
| 10 + | PHP344,999.60 |
*price indicative
- RS Stock No.:
- 224-0011
- Mfr. Part No.:
- 3305548
- Manufacturer:
- Rittal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Product Type | Enclosure Cooling Unit | |
| Maximum Cooling Power | 1490W | |
| Air Flow | 540m³/h | |
| Input Power | 650W | |
| Mount Type | Wall | |
| Connection Type | Plug-In Terminal Strip | |
| Maximum Supply Voltage | 400V ac | |
| IP Rating | IP34, IP56 | |
| Certification | CCC, cUL, FTTA, UL, EAC | |
| Material | Sheet Steel | |
| Maximum Temperature Setting | 50°C | |
| Type of installation | Wall-Mounted | |
| Min Temperature Setting | -20°C | |
| Height | 1020mm | |
| Depth | 358mm | |
| Series | TopTherm Blue e | |
| Width | 405mm | |
| Standards/Approvals | UL Type 3R/4, NEMA | |
| Weight | 52kg | |
| Cooler Type | Wall Mounted | |
| Refrigerant Type | Refrigerant: R134A | |
| Frequency | 60Hz | |
| Nominal Current | 2.8A | |
| Cooling Capacity | 2.5kW | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Product Type Enclosure Cooling Unit | ||
Maximum Cooling Power 1490W | ||
Air Flow 540m³/h | ||
Input Power 650W | ||
Mount Type Wall | ||
Connection Type Plug-In Terminal Strip | ||
Maximum Supply Voltage 400V ac | ||
IP Rating IP34, IP56 | ||
Certification CCC, cUL, FTTA, UL, EAC | ||
Material Sheet Steel | ||
Maximum Temperature Setting 50°C | ||
Type of installation Wall-Mounted | ||
Min Temperature Setting -20°C | ||
Height 1020mm | ||
Depth 358mm | ||
Series TopTherm Blue e | ||
Width 405mm | ||
Standards/Approvals UL Type 3R/4, NEMA | ||
Weight 52kg | ||
Cooler Type Wall Mounted | ||
Refrigerant Type Refrigerant: R134A | ||
Frequency 60Hz | ||
Nominal Current 2.8A | ||
Cooling Capacity 2.5kW | ||
- COO (Country of Origin):
- IT
The Rittal SK series is the energy efficient wall mounted cooling unit with e comfort controller integrated as standard with RiNano coating on the condenser and electrical condensate evaporation. The total cooling output is 1.49 kW and the material used is the sheet steel. The rated current of cooling unite is 2.5A
Suitable for outdoor siting
Blue e technology
May be linked to the IoT interface via the Blue e IoT adaptor
