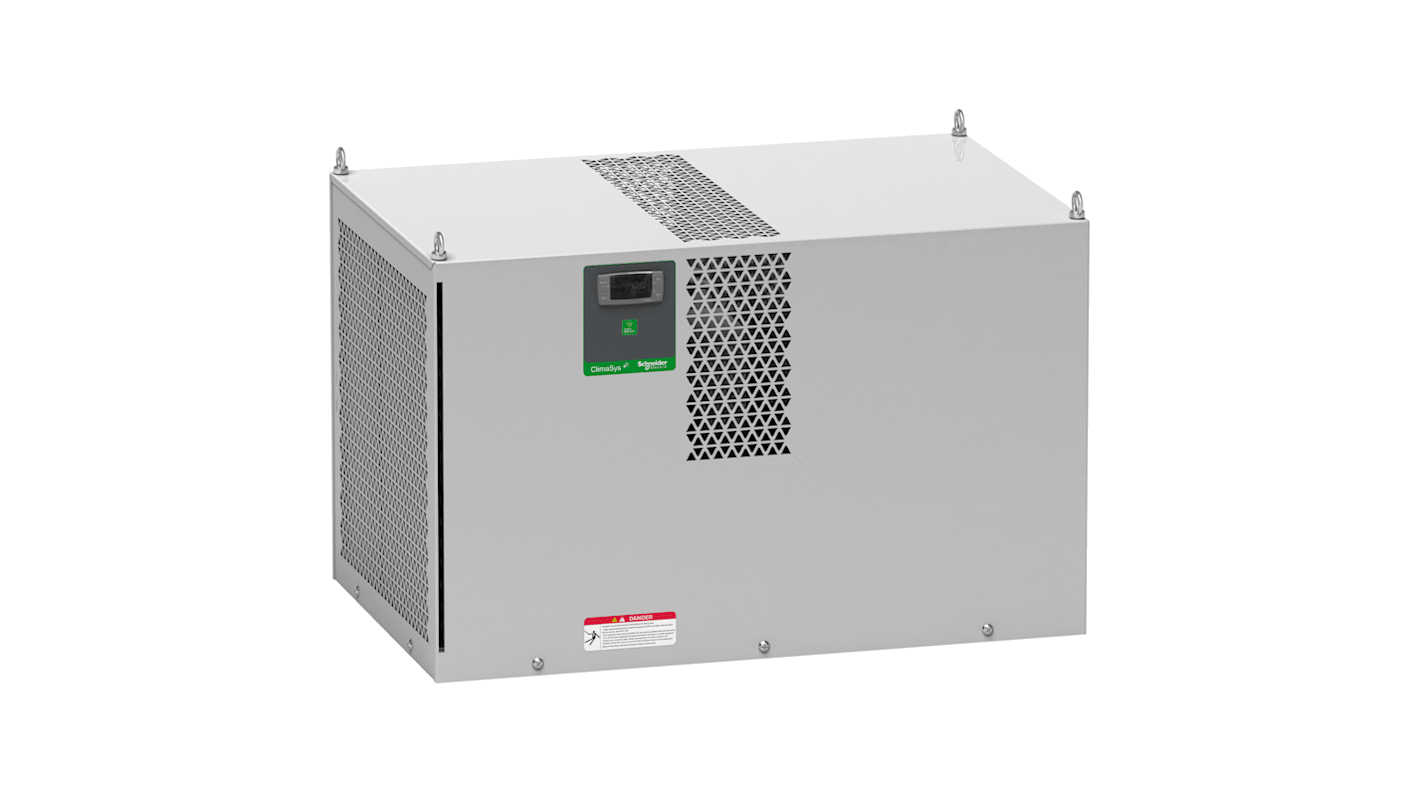

Schneider Electric ClimaSys Series Enclosure Cooling Unit, 2900W, 860 m³/h 400V ac 496 mm 797mm 492 mm
- RS Stock No.:
- 211-2770
- Mfr. Part No.:
- NSYCUX3K3P4R
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
PHP434,479.21
(exc. VAT)
PHP486,616.72
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Stocked by manufacturer
- Ready to ship from June 26, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP434,479.21 |
*price indicative
- RS Stock No.:
- 211-2770
- Mfr. Part No.:
- NSYCUX3K3P4R
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Maximum Cooling Power | 2900W | |
| Product Type | Enclosure Cooling Unit | |
| Air Flow | 860m³/h | |
| Noise Level | 75dB | |
| Input Power | 1.21kW | |
| Mount Type | Roof | |
| Power Consumption | 1450W | |
| IP Rating | IP34, IP54 | |
| Maximum Supply Voltage | 400V ac | |
| Certification | CE | |
| Material | Stainless Steel | |
| Min Temperature Setting | 20°C | |
| Maximum Temperature Setting | 50°C | |
| Type of installation | Indoor | |
| Height | 496mm | |
| Depth | 492mm | |
| Series | ClimaSys | |
| Standards/Approvals | EN 60204-1, EN/ISO 12100, EN 378, EN 60335-2-40, EN 60335-1 | |
| Width | 797mm | |
| Weight | 83kg | |
| Refrigerant Type | R134A (1.2 Kg) | |
| Frequency | 60Hz | |
| Cooling Capacity | 2900W | |
| Nominal Current | 2.5A | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Maximum Cooling Power 2900W | ||
Product Type Enclosure Cooling Unit | ||
Air Flow 860m³/h | ||
Noise Level 75dB | ||
Input Power 1.21kW | ||
Mount Type Roof | ||
Power Consumption 1450W | ||
IP Rating IP34, IP54 | ||
Maximum Supply Voltage 400V ac | ||
Certification CE | ||
Material Stainless Steel | ||
Min Temperature Setting 20°C | ||
Maximum Temperature Setting 50°C | ||
Type of installation Indoor | ||
Height 496mm | ||
Depth 492mm | ||
Series ClimaSys | ||
Standards/Approvals EN 60204-1, EN/ISO 12100, EN 378, EN 60335-2-40, EN 60335-1 | ||
Width 797mm | ||
Weight 83kg | ||
Refrigerant Type R134A (1.2 Kg) | ||
Frequency 60Hz | ||
Cooling Capacity 2900W | ||
Nominal Current 2.5A | ||
- COO (Country of Origin):
- IT
The Schneider Electric ClimaSys CU range are cooling units for harsh environments, where ambient temperatures can reach up to 55°C. The unit’s integrated alarm system will signal you in the event of any operational anomaly. An internal grid of a new design protects the components and personnel during operation of the equipment while at the same time facilitating cleaning and maintenance. The cooling units has three models of mounting which are roof model, floor model and side model.
Several mounting solutions
Enhanced protection
Precision of temperature control
Simplicity
UL, CE, EAC Certified
