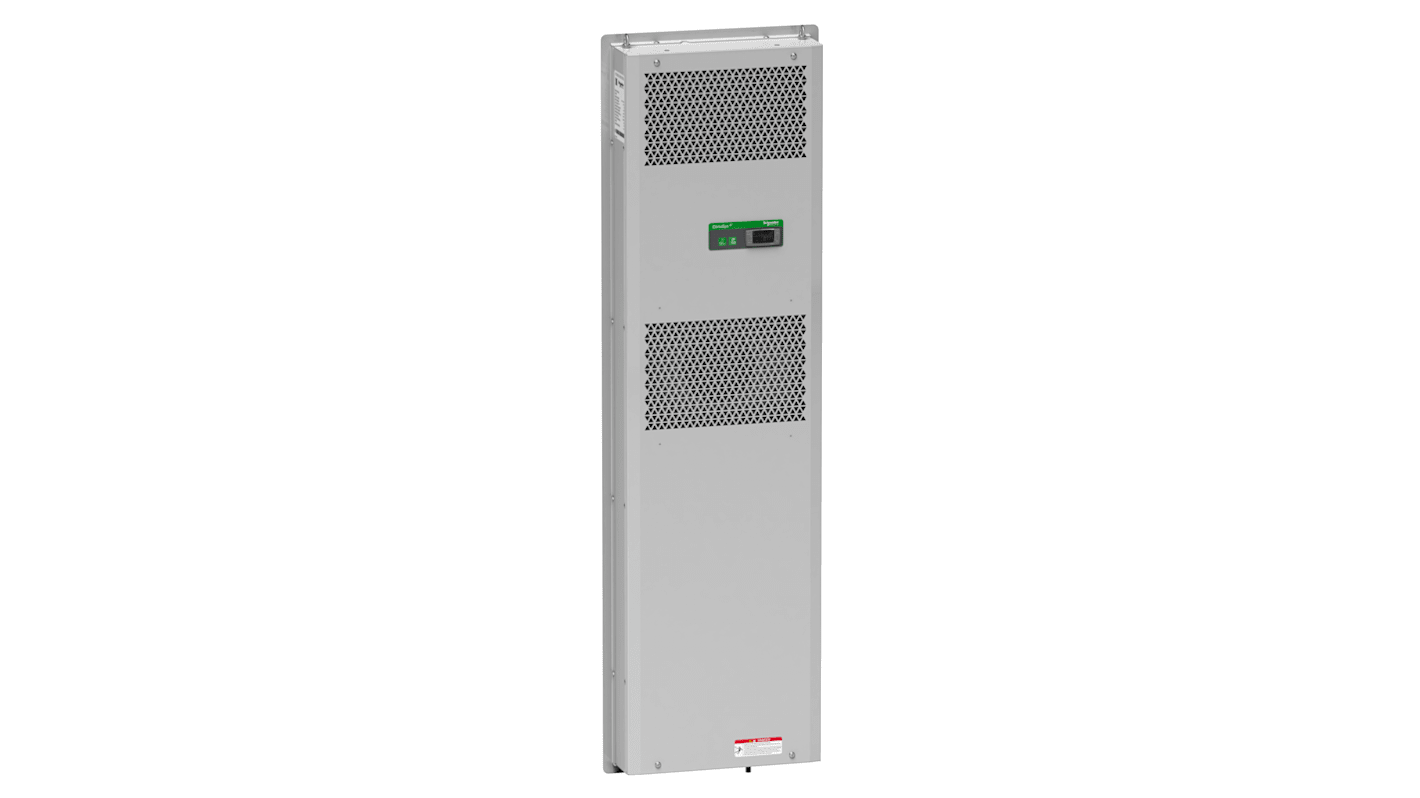

Schneider Electric ClimaSys Series Enclosure Cooling Unit, 1500W, 860 m³/h 230V ac 1696 mm 495mm 195 mm
- RS Stock No.:
- 211-2766
- Mfr. Part No.:
- NSYCUS1K5UL
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
PHP278,561.35
(exc. VAT)
PHP311,988.71
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Stocked by manufacturer
- Ready to ship from July 06, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP278,561.35 |
*price indicative
- RS Stock No.:
- 211-2766
- Mfr. Part No.:
- NSYCUS1K5UL
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Maximum Cooling Power | 1500W | |
| Product Type | Enclosure Cooling Unit | |
| Air Flow | 860m³/h | |
| Noise Level | 66dB | |
| Input Power | 970W | |
| Power Consumption | 840W | |
| Maximum Supply Voltage | 230V ac | |
| IP Rating | IP55, IP34 | |
| Certification | UL | |
| Material | Steel | |
| Min Temperature Setting | 20°C | |
| Maximum Temperature Setting | 50°C | |
| Type of installation | Indoor | |
| Weight | 55kg | |
| Standards/Approvals | UL, REACH Declaration, EU RoHS Directive | |
| Height | 1696mm | |
| Series | ClimaSys | |
| Width | 495mm | |
| Depth | 195mm | |
| Cooler Type | Slim Cooling Unit block | |
| Cooling Capacity | 5118Btu/h | |
| Refrigerant Type | R134A (0.46 Kg) | |
| Frequency | 60Hz | |
| Nominal Current | 5.7A | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Maximum Cooling Power 1500W | ||
Product Type Enclosure Cooling Unit | ||
Air Flow 860m³/h | ||
Noise Level 66dB | ||
Input Power 970W | ||
Power Consumption 840W | ||
Maximum Supply Voltage 230V ac | ||
IP Rating IP55, IP34 | ||
Certification UL | ||
Material Steel | ||
Min Temperature Setting 20°C | ||
Maximum Temperature Setting 50°C | ||
Type of installation Indoor | ||
Weight 55kg | ||
Standards/Approvals UL, REACH Declaration, EU RoHS Directive | ||
Height 1696mm | ||
Series ClimaSys | ||
Width 495mm | ||
Depth 195mm | ||
Cooler Type Slim Cooling Unit block | ||
Cooling Capacity 5118Btu/h | ||
Refrigerant Type R134A (0.46 Kg) | ||
Frequency 60Hz | ||
Nominal Current 5.7A | ||
The Schneider Electric ClimaSys CU range are cooling units for harsh environments, where ambient temperatures can reach up to 55°C. The unit’s integrated alarm system will signal you in the event of any operational anomaly. An internal grid of a new design protects the components and personnel during operation of the equipment while at the same time facilitating cleaning and maintenance. The cooling units has three models of mounting which are roof model, floor model and side model.
Several mounting solutions
Enhanced protection
Precision of temperature control
Simplicity
UL, CE, EAC Certified
