nVent HOFFMAN DEK04 Series, 235 m³/h Air Conditioning Unit, 410 230V 260 mm 259mm 481 mm
- RS Stock No.:
- 171-401
- Mfr. Part No.:
- DEK04BTUB
- Manufacturer:
- nVent HOFFMAN
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 171-401
- Mfr. Part No.:
- DEK04BTUB
- Manufacturer:
- nVent HOFFMAN
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | nVent HOFFMAN | |
| Product Type | Air Conditioning Unit | |
| Maximum Cooling Power | 410 | |
| Air Flow | 235m³/h | |
| Noise Level | 65dB | |
| Mount Type | Roof | |
| Power Consumption | 230W | |
| Maximum Supply Voltage | 230V | |
| IP Rating | IP54 | |
| Certification | UL, CE | |
| Min Temperature Setting | 20°C | |
| Type of installation | Roof | |
| Maximum Temperature Setting | 50°C | |
| Material | Galvanised Steel | |
| Height | 260mm | |
| Depth | 481mm | |
| Series | DEK04 | |
| Width | 259mm | |
| Standards/Approvals | CE, UL | |
| Weight | 18kg | |
| Cooler Type | Roof Connected | |
| Cooling Capacity | 240W | |
| Nominal Current | 1.5A | |
| Frequency | 60Hz | |
| Select all | ||
|---|---|---|
Brand nVent HOFFMAN | ||
Product Type Air Conditioning Unit | ||
Maximum Cooling Power 410 | ||
Air Flow 235m³/h | ||
Noise Level 65dB | ||
Mount Type Roof | ||
Power Consumption 230W | ||
Maximum Supply Voltage 230V | ||
IP Rating IP54 | ||
Certification UL, CE | ||
Min Temperature Setting 20°C | ||
Type of installation Roof | ||
Maximum Temperature Setting 50°C | ||
Material Galvanised Steel | ||
Height 260mm | ||
Depth 481mm | ||
Series DEK04 | ||
Width 259mm | ||
Standards/Approvals CE, UL | ||
Weight 18kg | ||
Cooler Type Roof Connected | ||
Cooling Capacity 240W | ||
Nominal Current 1.5A | ||
Frequency 60Hz | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT

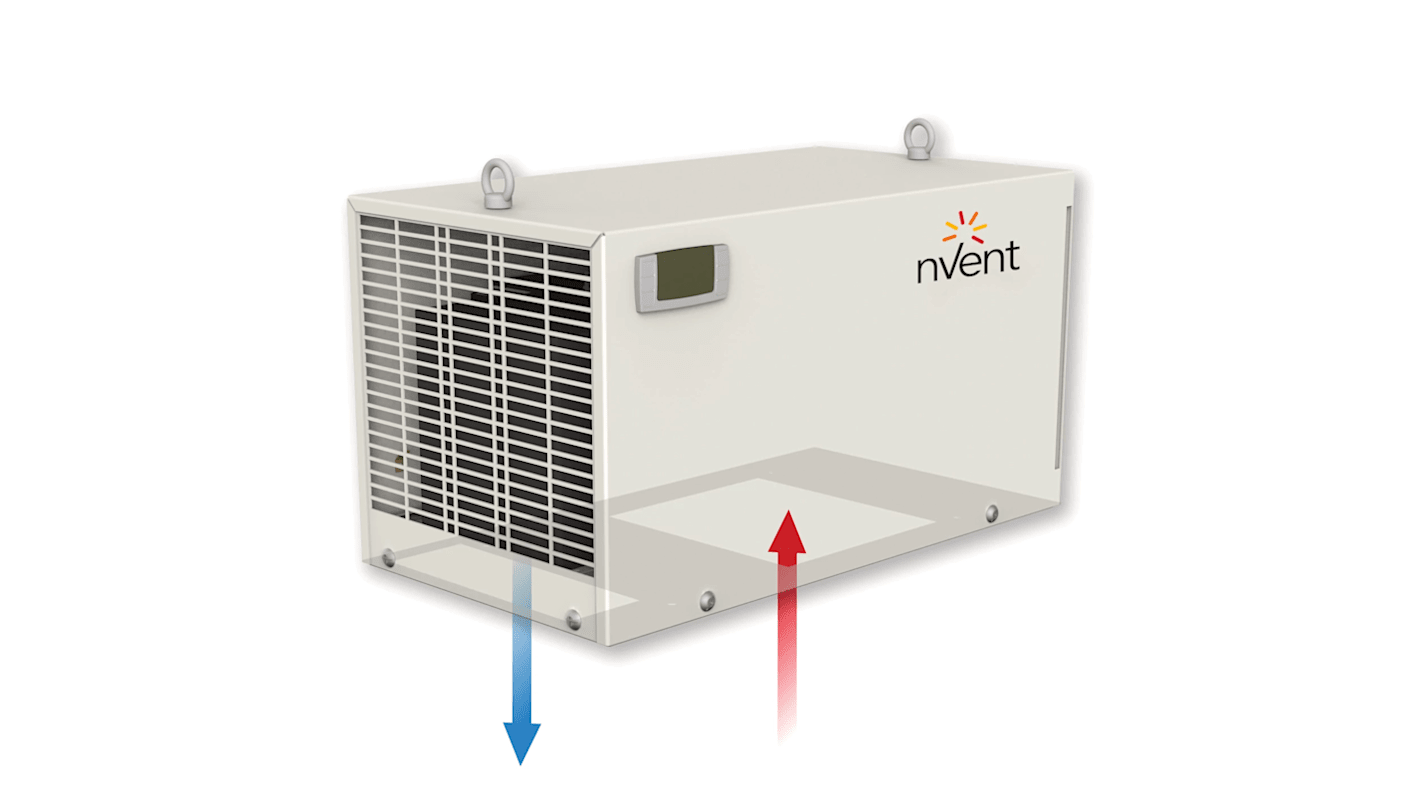

The nVent Hoffman Roof Cooling Unit offers an IP54 protection degree and is designed to provide efficient cooling for either a single enclosure or an entire assembly, based on cooling needs and energy consumption preferences. Installed on top of the enclosure, it is an ideal solution for situations where door or side panel space is limited.
Temperature limits outside is +20°C to +50°C
Galvanized steel construction
