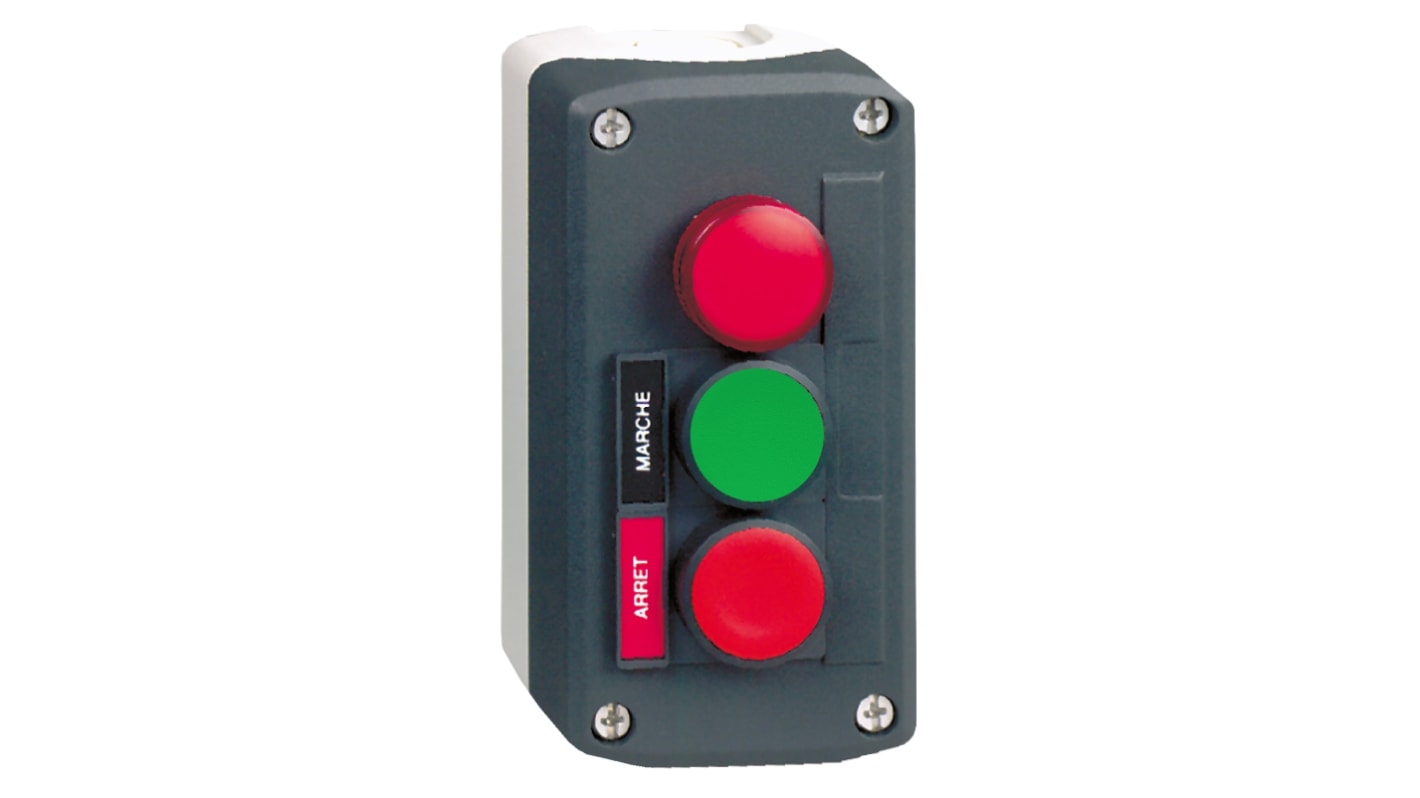

Schneider Electric Slow Break Push Button Control Station - 1 NO/1 NC, Polycarbonate, Green, Red, IP66, IP67, IP69K
- RS Stock No.:
- 276-2495
- Mfr. Part No.:
- XALD361M
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
PHP10,492.96
(exc. VAT)
PHP11,752.12
(inc. VAT)
Add 1 unit to get free delivery
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP10,492.96 |
*price indicative
- RS Stock No.:
- 276-2495
- Mfr. Part No.:
- XALD361M
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Series | Harmony XALD | |
| Product Type | Push Button Control Station | |
| Push Button Colour | Green, Red | |
| Push Button Material | Polycarbonate | |
| Enclosure Colour | Base: Dark Grey | |
| Contact Configuration | 1 NO/1 NC | |
| Enclosure Material | Polycarbonate | |
| IP Rating | IP66, IP67, IP69K | |
| Push Button Actuation | Slow Break | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | IEC 60947-5-1, CSA C22.2 No. 14, IEC 60947-1, IEC 60947-5-5, IEC 60947-5-4, UL 508 | |
| Hazardous Area Certification | No | |
| Terminal Type | Screw | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Series Harmony XALD | ||
Product Type Push Button Control Station | ||
Push Button Colour Green, Red | ||
Push Button Material Polycarbonate | ||
Enclosure Colour Base: Dark Grey | ||
Contact Configuration 1 NO/1 NC | ||
Enclosure Material Polycarbonate | ||
IP Rating IP66, IP67, IP69K | ||
Push Button Actuation Slow Break | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals IEC 60947-5-1, CSA C22.2 No. 14, IEC 60947-1, IEC 60947-5-5, IEC 60947-5-4, UL 508 | ||
Hazardous Area Certification No | ||
Terminal Type Screw | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
The Schneider Electric complete control station for start and stop function is ideal for your complete control station. It operates with spring return mechanism and uses screw-clamp terminals. This control station with flush push buttons is ideal to control start and stop operation in your machines.
Impact resistant
Dust resistant
Water resistant
Corrosion resistant
Vibration resistant
