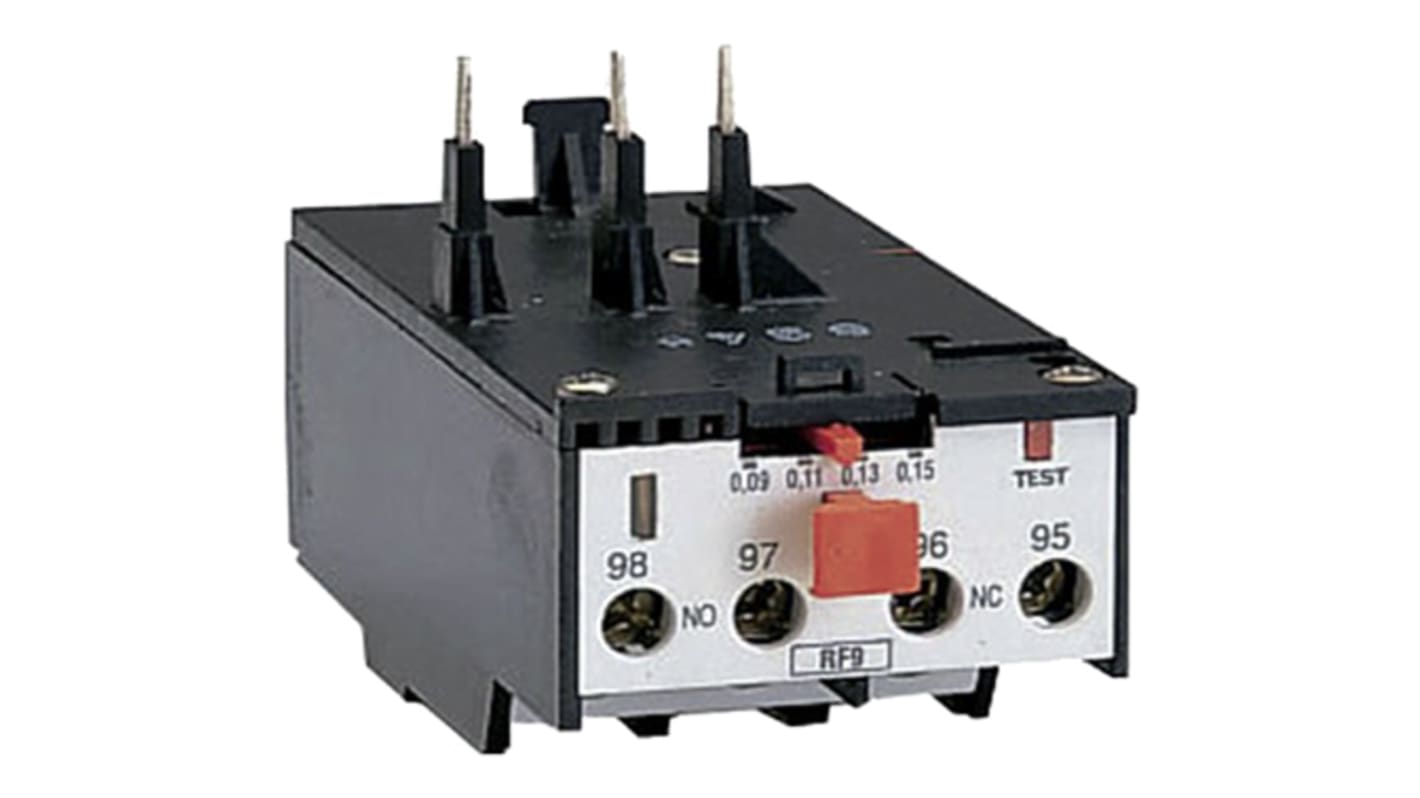

Lovato, RF9 Thermal Overload Relay 1 NO/1 NC, 2.3A Contact Rating, 1.5 kW, 690V ac 3
- RS Stock No.:
- 890-4297
- Mfr. Part No.:
- 11RF92V3
- Manufacturer:
- Lovato
Subtotal (1 unit)*
PHP4,088.48
(exc. VAT)
PHP4,579.10
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 7 unit(s) ready to ship from another location
- Plus 25 unit(s) shipping from June 25, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP4,088.48 |
*price indicative
- RS Stock No.:
- 890-4297
- Mfr. Part No.:
- 11RF92V3
- Manufacturer:
- Lovato
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato | |
| Product Type | Thermal Overload Relay | |
| Relay Contact Current | 2.3A | |
| Series | RF9 | |
| Power Rating | 1.5kW | |
| Pole and Throw Configuration | 3 | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| Reset Method | Manual | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -20°C | |
| Width | 44mm | |
| Adjustable Current Range | 1.4 to 2.3 A | |
| Number of Auxiliary Contacts | 2 | |
| Maximum Operating Temperature | 55°C | |
| Contact Voltage | 690V | |
| Length | 54.5mm | |
| Standards/Approvals | CSA Approved, CCC approved, IEC/EN 60947-1. IEC/EN 60947-4-1, EAC Approved, cULus Approved, CSA C22.2 n° 14, UL508 | |
| Depth | 89.2mm | |
| Control Voltage | 690V ac | |
| Select all | ||
|---|---|---|
Brand Lovato | ||
Product Type Thermal Overload Relay | ||
Relay Contact Current 2.3A | ||
Series RF9 | ||
Power Rating 1.5kW | ||
Pole and Throw Configuration 3 | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
Reset Method Manual | ||
IP Rating IP20 | ||
Minimum Operating Temperature -20°C | ||
Width 44mm | ||
Adjustable Current Range 1.4 to 2.3 A | ||
Number of Auxiliary Contacts 2 | ||
Maximum Operating Temperature 55°C | ||
Contact Voltage 690V | ||
Length 54.5mm | ||
Standards/Approvals CSA Approved, CCC approved, IEC/EN 60947-1. IEC/EN 60947-4-1, EAC Approved, cULus Approved, CSA C22.2 n° 14, UL508 | ||
Depth 89.2mm | ||
Control Voltage 690V ac | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- IT
3-Pole Thermal Overload Relays 11 RF9
Type RF9 Motor protection relays for BG Series mini-contactors
Phase failure sensitive
Manual resetting
