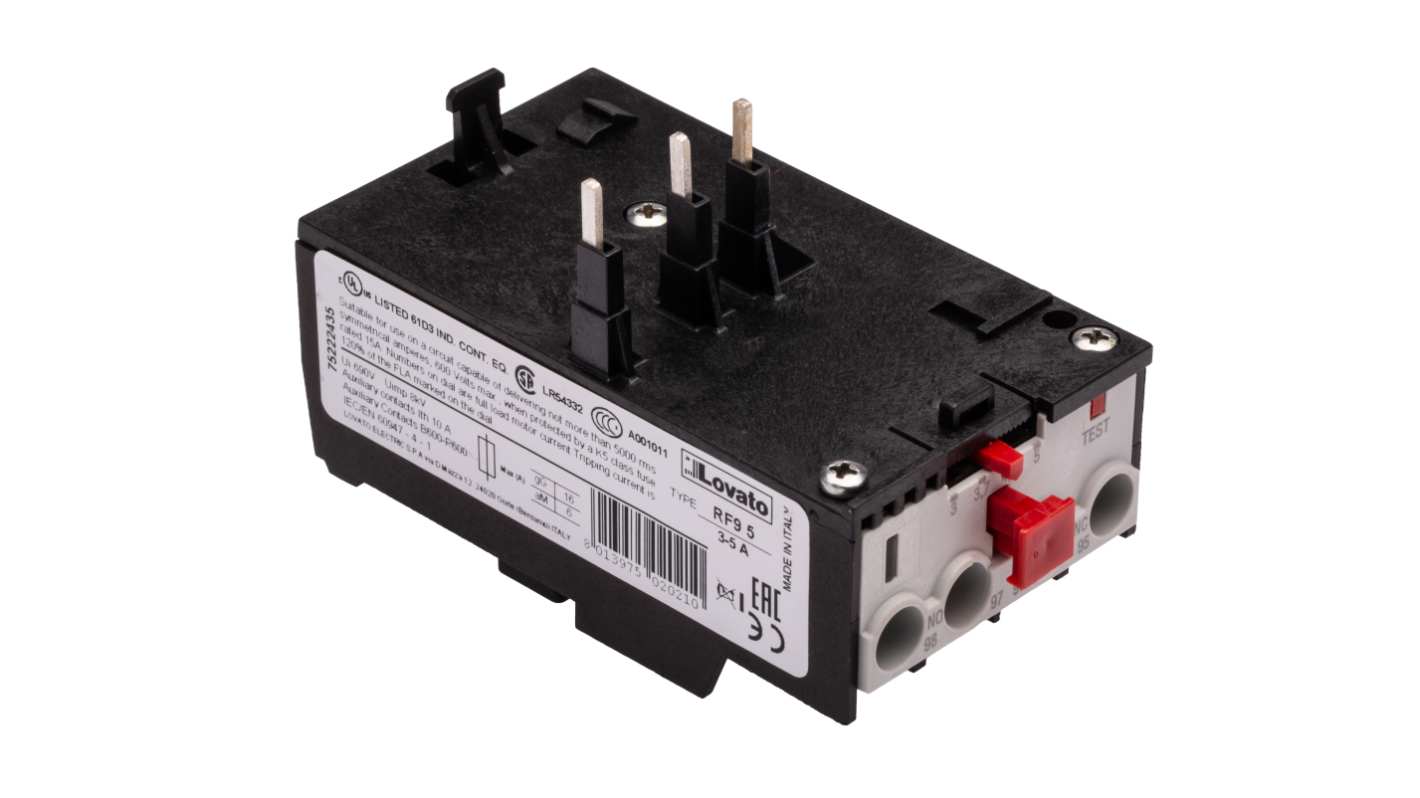

Lovato, RF9 Thermal Overload Relay 1 NO/1 NC, 5 A Contact Rating, 3.7 kW, 690V ac 3

RS Stock No.:: 890-4294
Mfr. Part No.:: 11RF95
Manufacturer:: Lovato

Lovato, RF9 Thermal Overload Relay 1 NO/1 NC, 5 A Contact Rating, 3.7 kW, 690V ac 3

Bulk discount available

Subtotal (1 unit)*

PHP2,664.92

(exc. VAT)

PHP2,984.71

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

22 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 4	PHP2,664.92
5 +	PHP2,584.97

*price indicative

RS Stock No.:: 890-4294
Mfr. Part No.:: 11RF95
Manufacturer:: Lovato

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lovato
	Product Type	Thermal Overload Relay
	Relay Contact Current	5 A
	Series	RF9
	Power Rating	3.7kW
	Pole and Throw Configuration	3
	Normal State Configuration	1 NO/1 NC
	Terminal Type	Screw
	IP Rating	IP20
	Reset Method	Manual
	Minimum Operating Temperature	-20°C
	Number of Auxiliary Contacts	2
	Adjustable Current Range	3 to 5 A
	Width	44 mm
	Contact Voltage	690V
	Length	54.5mm
	Maximum Operating Temperature	55°C
	Depth	89.2mm
	Standards/Approvals	CSA Approved, CCC approved, UL508, IEC/EN 60947-1. IEC/EN 60947-4-1, EAC Approved, cULus Approved, CSA C22.2 n° 14
	Control Voltage	690V ac

	Select all
	Brand Lovato
	Product Type Thermal Overload Relay
	Relay Contact Current 5 A
	Series RF9
	Power Rating 3.7kW
	Pole and Throw Configuration 3
	Normal State Configuration 1 NO/1 NC
	Terminal Type Screw
	IP Rating IP20
	Reset Method Manual
	Minimum Operating Temperature -20°C
	Number of Auxiliary Contacts 2
	Adjustable Current Range 3 to 5 A
	Width 44 mm
	Contact Voltage 690V
	Length 54.5mm
	Maximum Operating Temperature 55°C
	Depth 89.2mm
	Standards/Approvals CSA Approved, CCC approved, UL508, IEC/EN 60947-1. IEC/EN 60947-4-1, EAC Approved, cULus Approved, CSA C22.2 n° 14
	Control Voltage 690V ac

Datasheet - 11RF95

RoHS Status: Not Applicable

COO (Country of Origin):: IT

Lovato RF9 Series Thermal Overload Relay, 5A Contact, 3 to 3.7kW Power Rating - 11RF95

This thermal overload relay provides motor protection in industrial settings by automatically interrupting the power supply during an overload. It operates within a temperature range of -20°C to +55°C, making it adaptable to various environments. This component is critical for preventing motor damage and ensuring reliable operation.

Features & Benefits

• 5A contact current rating for dependable performance

• Manual reset option allows for controlled operation after an overload

• Direct mounting design for straightforward installation

• 3-pole configuration for versatile applications

• Screw terminals for secure connections

• Dual auxiliary contacts provide additional control options

Applications

• Suitable for use with electric motors in control panels

• Protects motors in machinery to prevent damage

• Employed in conveyor systems to safeguard motor functionality

• Applied in pump controls for efficient operation

What happens in the event of an overload during operation?

The device cuts off the power supply, safeguarding the motor.

Can it be installed in confined spaces?

Yes, its direct mount design facilitates installation in limited areas.
