RS PRO Omni-Directional, Through Hole 6 mm Microphone Condenser -40dB
- RS Stock No.:
- 724-3125
- Manufacturer:
- RS PRO

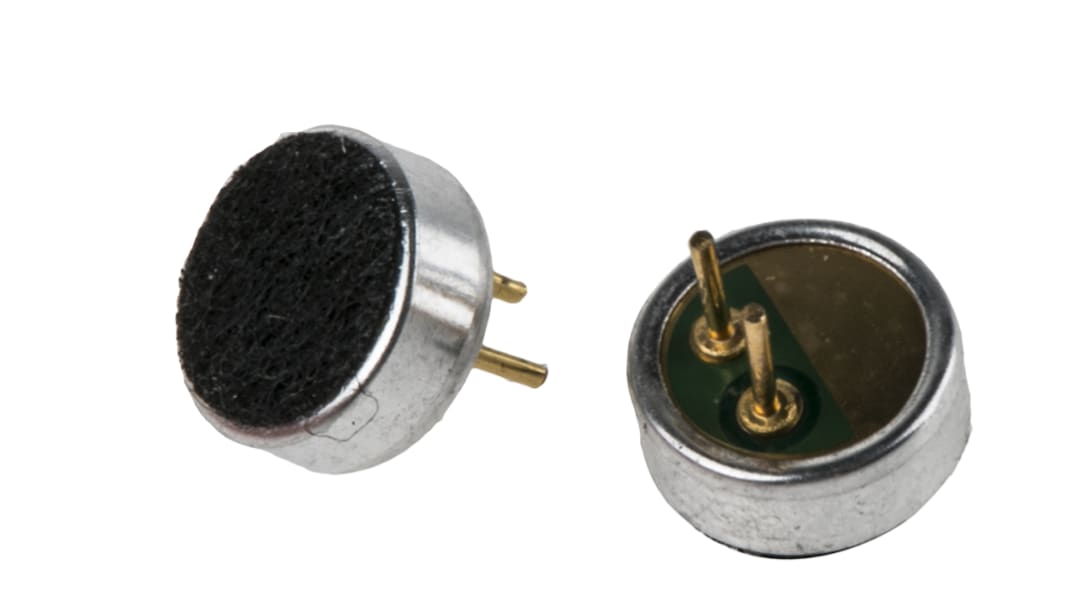

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 2 units)*
PHP178.83
(exc. VAT)
PHP200.29
(inc. VAT)
Add 36 units to get free delivery
In Stock
- 374 unit(s) ready to ship from another location
- Plus 48 unit(s) shipping from February 26, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 2 - 8 | PHP89.415 | PHP178.83 |
| 10 - 18 | PHP86.745 | PHP173.49 |
| 20 - 48 | PHP84.14 | PHP168.28 |
| 50 - 98 | PHP81.62 | PHP163.24 |
| 100 + | PHP67.17 | PHP134.34 |
*price indicative
- RS Stock No.:
- 724-3125
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Microphone Condenser | |
| Sensitivity | -40dB | |
| Directivity | Omni-Directional | |
| Standard Operating Voltage | 2V | |
| Mount Type | Through Hole | |
| Output Impedance | 2.2kΩ | |
| Signal to Noise Ratio | 60dB | |
| Diameter | 6 mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Frequency | 16kHz | |
| Maximum Operating Temperature | 70°C | |
| Minimum Frequency | 100Hz | |
| Termination Style | Solder Pad | |
| Standards/Approvals | No | |
| Height | 2.2mm | |
| Supply Current | 0.5mA | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Microphone Condenser | ||
Sensitivity -40dB | ||
Directivity Omni-Directional | ||
Standard Operating Voltage 2V | ||
Mount Type Through Hole | ||
Output Impedance 2.2kΩ | ||
Signal to Noise Ratio 60dB | ||
Diameter 6 mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Frequency 16kHz | ||
Maximum Operating Temperature 70°C | ||
Minimum Frequency 100Hz | ||
Termination Style Solder Pad | ||
Standards/Approvals No | ||
Height 2.2mm | ||
Supply Current 0.5mA | ||
- COO (Country of Origin):
- CN
Electret Microphone Inserts
Range of SMT and PCB mounting miniature electret condenser microphone inserts
