Fluke 374 Clamp Meter, 600A dc, Max Current 600A ac CAT III 1000 V, CAT IV 600 V
- RS Stock No.:
- 914-5436
- Mfr. Part No.:
- 3790599
- Manufacturer:
- Fluke
View all Clamp Meters
Available for back order.
Price Each
Was PHP29,749.00
You pay
PHP26,179.00
(exc. VAT)
PHP29,320.48
(inc. VAT)
| units | Per Unit |
| 1 + | PHP26,179.00 |
- RS Stock No.:
- 914-5436
- Mfr. Part No.:
- 3790599
- Manufacturer:
- Fluke
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details

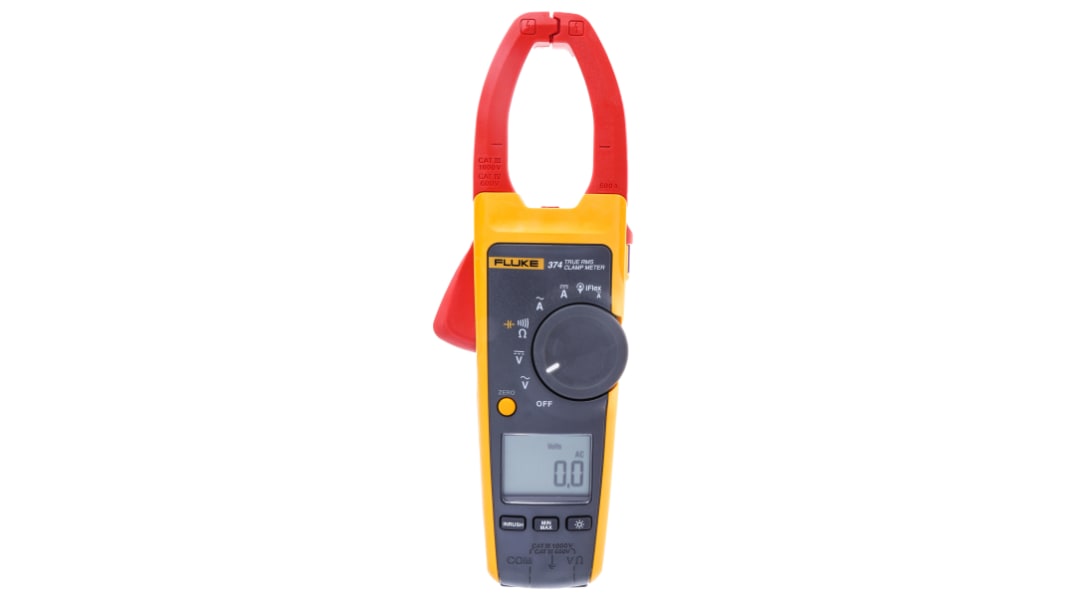

Fluke Clamp Meter
The Fluke True-RMS clamp meter measures current up to 600A (AC/DC) and voltage up to 600VAC/DC. It is also compatible with the new iFlex flexible current clamp (not included), which extends the measurement range, giving you more flexibility and better access to cables. This meter contains TL75 test leads, 2 x AA alkaline batteries, a soft carrying case, coated instruction card and safety information sheet.
Features and Benefits
6kohm resistance measurement
1000μF capacitance measurements
Minimum, maximum, average and inrush recording to capture variations automatically
Backlit display
Operating temperature ranges between -10°C and 50°C
1000μF capacitance measurements
Minimum, maximum, average and inrush recording to capture variations automatically
Backlit display
Operating temperature ranges between -10°C and 50°C
Applications
Electricians
Commercial sites
Residential plant maintenance
Home inspections
Commercial sites
Residential plant maintenance
Home inspections
Certifications
CE
cCSAus
TUV
CAT III 1000V, CAT IV 600V safety rating
cCSAus
TUV
CAT III 1000V, CAT IV 600V safety rating
Specifications
Attribute | Value |
|---|---|
| Absolute Maximum AC Current Measurement | 600A ac |
| Absolute Maximum DC Current Measurement | 600A dc |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 6kΩ |
| Model Number | 374 |
| AC Current Measurement Resolution | 0.1A |
| DC Current Measurement Resolution | 0.1A |
| Best DC Current Accuracy | 2 % |
| Clamp Meter Type | AC/DC Clamp Meter |
| Best AC Current Accuracy | 2 % |
| Best AC Voltage Accuracy | 1.5 % |
| Functions Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance |
| True RMS | Yes |
| Best DC Voltage Accuracy | 1 % |
| Display Type | Backlight |
| Best Resistance Measurement Accuracy | 1 % |
| Safety Category | CAT III 1000 V, CAT IV 600 V |
| Battery Type | AA |
| Safety Category Voltage | 600 V, 1000 V |
| Safety Category Level | CAT III, CAT IV |
| Weight | 388g |
| Jaw Capacity Busbars | 34mm |
| AC Voltage Measurement Resolution | 0.1V |
| Height | 246mm |
| Minimum Operating Temperature | +10°C |
| DC Voltage Measurement Resolution | 0.1V |
| Dimensions | 83 x 43 x 246mm |
| Resistance Measurement Resolution | 100mΩ |
| Length | 83mm |
| Maximum Operating Temperature | +50°C |
| Power Source | Battery |
| Width | 43mm |
