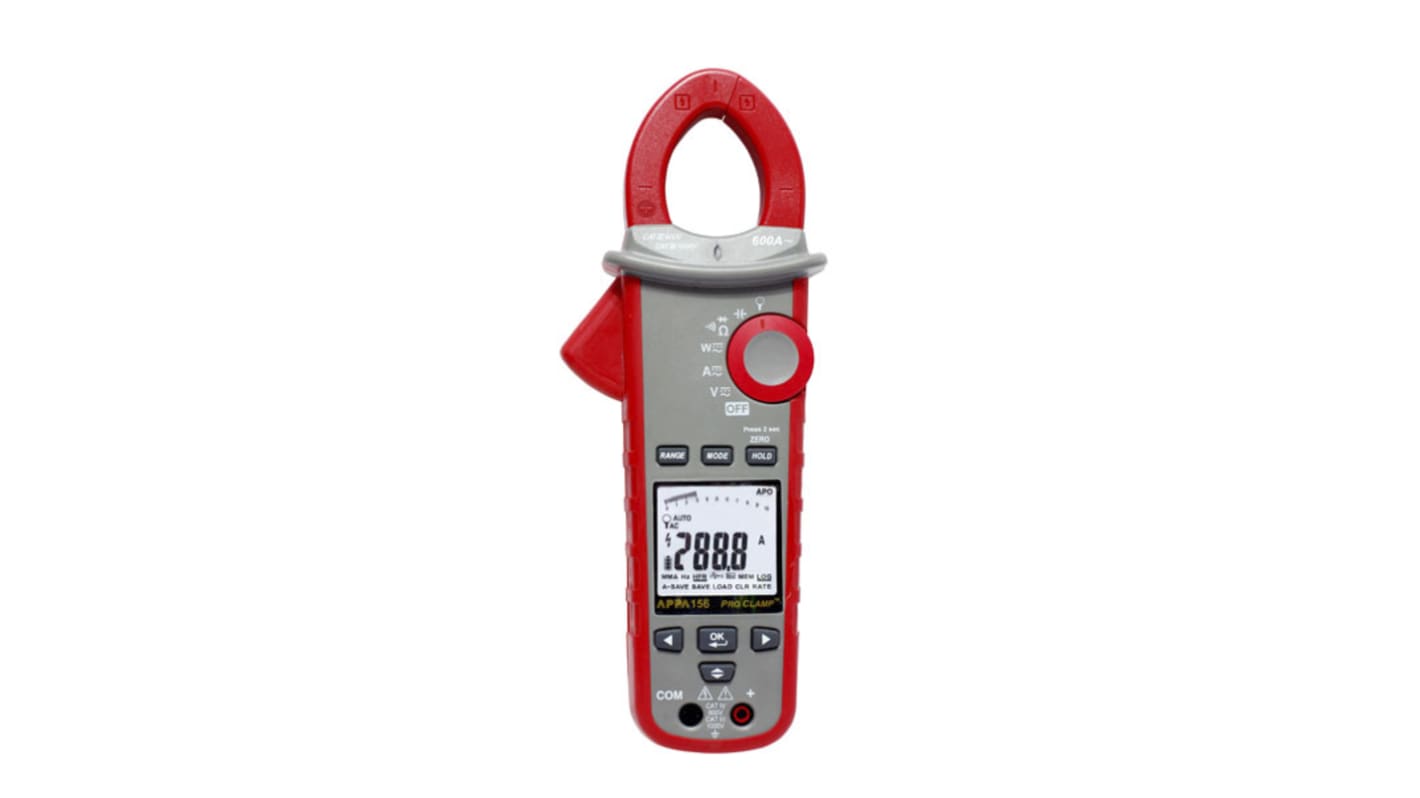

RS PRO 156B Clamp Meter Bluetooth, 600A dc, Max Current 600A ac CAT III 1000 V, CAT IV 600 V
- RS Stock No.:
- 162-4456
- Distrelec Article No.:
- 304-02-707
- Manufacturer:
- RS PRO
Subtotal (1 unit)**
PHP12,939.71
(exc. VAT)
PHP14,492.48
(inc. VAT)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for over PHP3,000.00 (ex VAT)
Units | Per Unit |
|---|---|
| 1 + | PHP12,939.71 |
**price indicative
- RS Stock No.:
- 162-4456
- Distrelec Article No.:
- 304-02-707
- Manufacturer:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Absolute Maximum AC Current Measurement | 600A ac | |
| Absolute Maximum DC Current Measurement | 600A dc | |
| Absolute Maximum AC Voltage Measurement | 1000V ac | |
| Absolute Maximum DC Voltage Measurement | 1000V dc | |
| Absolute Maximum Resistance Measurement | 100kΩ | |
| Connectivity | Bluetooth | |
| Model Number | 156B | |
| Best DC Current Accuracy | ±(1.5% rdg + 5dgts) | |
| Clamp Meter Type | Power Clamp Meter | |
| Best AC Current Accuracy | ±(1.5% rdg + 5dgts) | |
| Best AC Voltage Accuracy | ±(1% rdg + 5dgts) | |
| Best DC Voltage Accuracy | ±(0.7% rdg + 2dgts) | |
| Jaw Capacity Busbars | 33mm | |
| True RMS | Yes | |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance | |
| Maximum Operating Temperature | +50°C | |
| Safety Category Level | CAT III, CAT IV | |
| Safety Category Voltage | 600 V, 1000 V | |
| Safety Category | CAT III 1000 V, CAT IV 600 V | |
| Battery Type | 1.5 V AAA, Alkaline | |
| Minimum Operating Temperature | 0°C | |
| Height | 55mm | |
| Maximum Conductor Size | 33 Dia.mm | |
| Battery Life | 50 h | |
| Display Type | Bar Graphs, LED | |
| Weight | 540g | |
| Width | 103mm | |
| Dimensions | 243 x 103 x 55mm | |
| Resistance Measurement Resolution | 100mΩ | |
| Length | 243mm | |
| Best Resistance Measurement Accuracy | ±1 + 5 Digits % | |
| Non-Contact Voltage Detector | Yes | |
| Power Source | Battery | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Absolute Maximum AC Current Measurement 600A ac | ||
Absolute Maximum DC Current Measurement 600A dc | ||
Absolute Maximum AC Voltage Measurement 1000V ac | ||
Absolute Maximum DC Voltage Measurement 1000V dc | ||
Absolute Maximum Resistance Measurement 100kΩ | ||
Connectivity Bluetooth | ||
Model Number 156B | ||
Best DC Current Accuracy ±(1.5% rdg + 5dgts) | ||
Clamp Meter Type Power Clamp Meter | ||
Best AC Current Accuracy ±(1.5% rdg + 5dgts) | ||
Best AC Voltage Accuracy ±(1% rdg + 5dgts) | ||
Best DC Voltage Accuracy ±(0.7% rdg + 2dgts) | ||
Jaw Capacity Busbars 33mm | ||
True RMS Yes | ||
Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance | ||
Maximum Operating Temperature +50°C | ||
Safety Category Level CAT III, CAT IV | ||
Safety Category Voltage 600 V, 1000 V | ||
Safety Category CAT III 1000 V, CAT IV 600 V | ||
Battery Type 1.5 V AAA, Alkaline | ||
Minimum Operating Temperature 0°C | ||
Height 55mm | ||
Maximum Conductor Size 33 Dia.mm | ||
Battery Life 50 h | ||
Display Type Bar Graphs, LED | ||
Weight 540g | ||
Width 103mm | ||
Dimensions 243 x 103 x 55mm | ||
Resistance Measurement Resolution 100mΩ | ||
Length 243mm | ||
Best Resistance Measurement Accuracy ±1 + 5 Digits % | ||
Non-Contact Voltage Detector Yes | ||
Power Source Battery | ||
