RS PRO ICM136R Clamp Meter, 600A dc, Max Current 600A ac CAT II 1000 V, CAT III 600 V

RS Stock No.:: 123-3222
Manufacturer:: RS PRO

RS PRO ICM136R Clamp Meter, 600A dc, Max Current 600A ac CAT II 1000 V, CAT III 600 V

1 / 4

Subtotal (1 unit)**

Was PHP18,567.60

You pay

PHP16,578.21

(exc. VAT)

PHP18,567.60

(inc. VAT)

3 In PH stock for Delivery NCR Plus within 2 working days, rest of PH within 7 working days*

14 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for over PHP3,000.00 (ex VAT)

Real time qty checker

Units	Per Unit
1 +	PHP16,578.21

**price indicative

RS Stock No.:: 123-3222
Manufacturer:: RS PRO

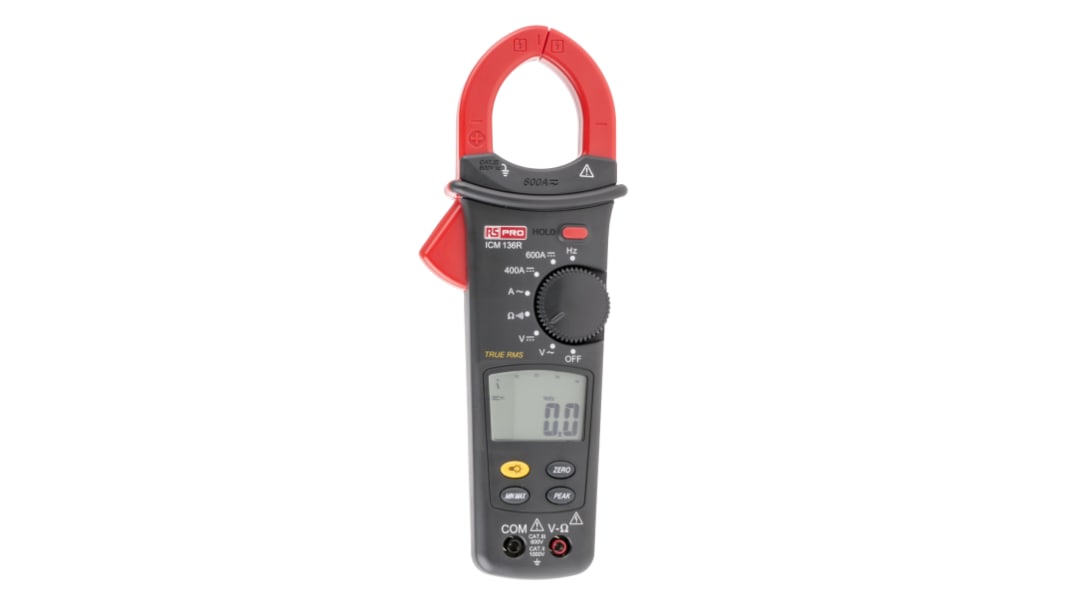

RS Pro ICM136R True RMS Clampmeter

From the trusted RS PRO brand, this ICM 136R clamp meter has true RMS reading to ensure accurate current measurement. It utilises Hall Effect technology and features nickel steel alloy jaws for precise measurement of ac and dc current up to 600 A.

Battery-powered for maximum portability, and with a large backlit screen, this multifunction current clamp meter is ideal for on-the-go applications in almost any environment.

It is also supplied in a carry case to keep the clampmeter safe and secure during transit.

Features and Benefits

• Backlit 4000 Count LCD display with analogue bar graph
• True RMS Reading on ac mode
• 600 A ac/dc current measurement
• 600 V ac/dc voltage measurement
• Resistance measurement with continuity beeper
• Display hold & peak hold (10 ms)
• Maximum Conduct Size of 35 mm diameter
• Maximum Busbar Size: 40 ' 15 mm
• DCA zeroing key
• Min/max function
• Frequency counter
• Auto power off

Applications

This current clamp meter is designed for current measurement in electrical testing, and combines a digital multimeter with a clamping current sensor. The nature of the clamp means that it can fit around a wire at any point to sense AC and DC Current. This has the advantage of allowing electricians to take a reading from a wire without touching it, which is both more convenient and safer than other methods.

True RMS (Root Mean Square) reading has advantages over average RMS reading in that it compensates for interfering electronic loads or distorted sinewaves to give an accurate reading.

This current clamp is used for measuring high levels of current in service and maintenance applications. It can also be used when installing electrical equipment.

Why RS PRO?

RS PRO aims to be your go-to brand when you need reliability, quality, and affordability. We source high-quality tools and parts from trusted sources and employ expert testing to build a brand you can rely on.

When it comes to test and measurement equipment, RS PRO has an extensive range of solutions. From electrical to environmental measurement, we offer calibrated and multi-function instruments to suit your needs.

Standards

EN61010 CAT. III 600 V

Supplied with

Test leads, battery, carry case and instructions

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Absolute Maximum AC Current Measurement	600A ac
	Absolute Maximum DC Current Measurement	600A dc
	Absolute Maximum AC Voltage Measurement	600V ac
	Absolute Maximum DC Voltage Measurement	600V dc
	Absolute Maximum Resistance Measurement	400Ω
	Model Number	ICM136R
	AC Current Measurement Resolution	100mA
	DC Current Measurement Resolution	100mA
	Best DC Current Accuracy	±(1.9% rdg + 5dgts)
	Clamp Meter Type	AC/DC Clamp Meter
	Best AC Current Accuracy	±(1.9% rdg + 5dgts)
	Best AC Voltage Accuracy	±(1% rdg + 5dgts)
	True RMS	Yes
	Functions Measured	AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance
	Best DC Voltage Accuracy	±(0.7% rdg + 2dgts)
	Jaw Capacity Busbars	35mm
	Battery Life	300 h
	AC Voltage Measurement Resolution	100mV
	Weight	380g
	Safety Category Level	CAT II, CAT III
	Height	235mm
	Resistance Measurement Resolution	100mΩ
	Minimum Operating Temperature	0°C
	Length	78mm
	Width	51mm
	Power Source	Battery
	DC Voltage Measurement Resolution	100mV
	Safety Category Voltage	600 V, 1000 V
	Battery Type	9V, IEC 6F22, NEDA 1604
	Maximum Operating Temperature	+50°C
	Safety Category	CAT II 1000 V, CAT III 600 V
	Best Resistance Measurement Accuracy	±1% + 3 Digits
	Dimensions	78 x 51 x 235mm
	Maximum Conductor Size	35 (Dia.)mm
	Display Type	LCD

	Select all
	Brand RS PRO
	Absolute Maximum AC Current Measurement 600A ac
	Absolute Maximum DC Current Measurement 600A dc
	Absolute Maximum AC Voltage Measurement 600V ac
	Absolute Maximum DC Voltage Measurement 600V dc
	Absolute Maximum Resistance Measurement 400Ω
	Model Number ICM136R
	AC Current Measurement Resolution 100mA
	DC Current Measurement Resolution 100mA
	Best DC Current Accuracy ±(1.9% rdg + 5dgts)
	Clamp Meter Type AC/DC Clamp Meter
	Best AC Current Accuracy ±(1.9% rdg + 5dgts)
	Best AC Voltage Accuracy ±(1% rdg + 5dgts)
	True RMS Yes
	Functions Measured AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance
	Best DC Voltage Accuracy ±(0.7% rdg + 2dgts)
	Jaw Capacity Busbars 35mm
	Battery Life 300 h
	AC Voltage Measurement Resolution 100mV
	Weight 380g
	Safety Category Level CAT II, CAT III
	Height 235mm
	Resistance Measurement Resolution 100mΩ
	Minimum Operating Temperature 0°C
	Length 78mm
	Width 51mm
	Power Source Battery
	DC Voltage Measurement Resolution 100mV
	Safety Category Voltage 600 V, 1000 V
	Battery Type 9V, IEC 6F22, NEDA 1604
	Maximum Operating Temperature +50°C
	Safety Category CAT II 1000 V, CAT III 600 V
	Best Resistance Measurement Accuracy ±1% + 3 Digits
	Dimensions 78 x 51 x 235mm
	Maximum Conductor Size 35 (Dia.)mm
	Display Type LCD
