ISO-TECH IPM245F Clamp Meter, Max Current 999.9A ac CAT III 1000 V, CAT IV 600 V

View all Clamp Meters

Subtotal (1 kit)*

PHP15,022.00

(exc. VAT)

PHP16,824.64

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 3 unit(s), ready to ship from another location
Kit(s)
Per Kit
1 +PHP15,022.00

*price indicative

RS Stock No.:
123-1010
Manufacturer:
ISO-TECH
Find similar products by selecting one or more attributes.
Select all

Brand

ISO-TECH

Absolute Maximum AC Current Measurement

999.9A ac

Absolute Maximum AC Voltage Measurement

999.9V ac

Absolute Maximum DC Voltage Measurement

999.9V dc

Absolute Maximum Resistance Measurement

99.99kΩ

Model Number

IPM245F

Clamp Meter Type

AC Clamp Meter

Best AC Current Accuracy

±1.5% + 5 Digits

Best AC Voltage Accuracy

±1% + 5 Digits

Jaw Capacity Busbars

62 x 12mm

Functions Measured

AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance

Best DC Voltage Accuracy

±0.7% + 2 Digits

True RMS

Yes

Dimensions

87.5 x 50.5 x 257mm

Safety Category

CAT III 1000 V, CAT IV 600 V

Best Resistance Measurement Accuracy

±1% + 5 Digits

Display Type

Backlight

Maximum Operating Temperature

+50°C

Minimum Operating Temperature

0°C

Power Source

Battery

Length

87.5mm

Maximum Conductor Size

42mm

Battery Life

50 (Backlight Off) h

Height

257mm

Non-Contact Voltage Detector

Yes

Width

50.5mm

Weight

470 (with Battery)g

Safety Category Level

CAT III, CAT IV

Safety Category Voltage

600 V, 1000 V

Battery Type

9V Alkaline

COO (Country of Origin):
TW

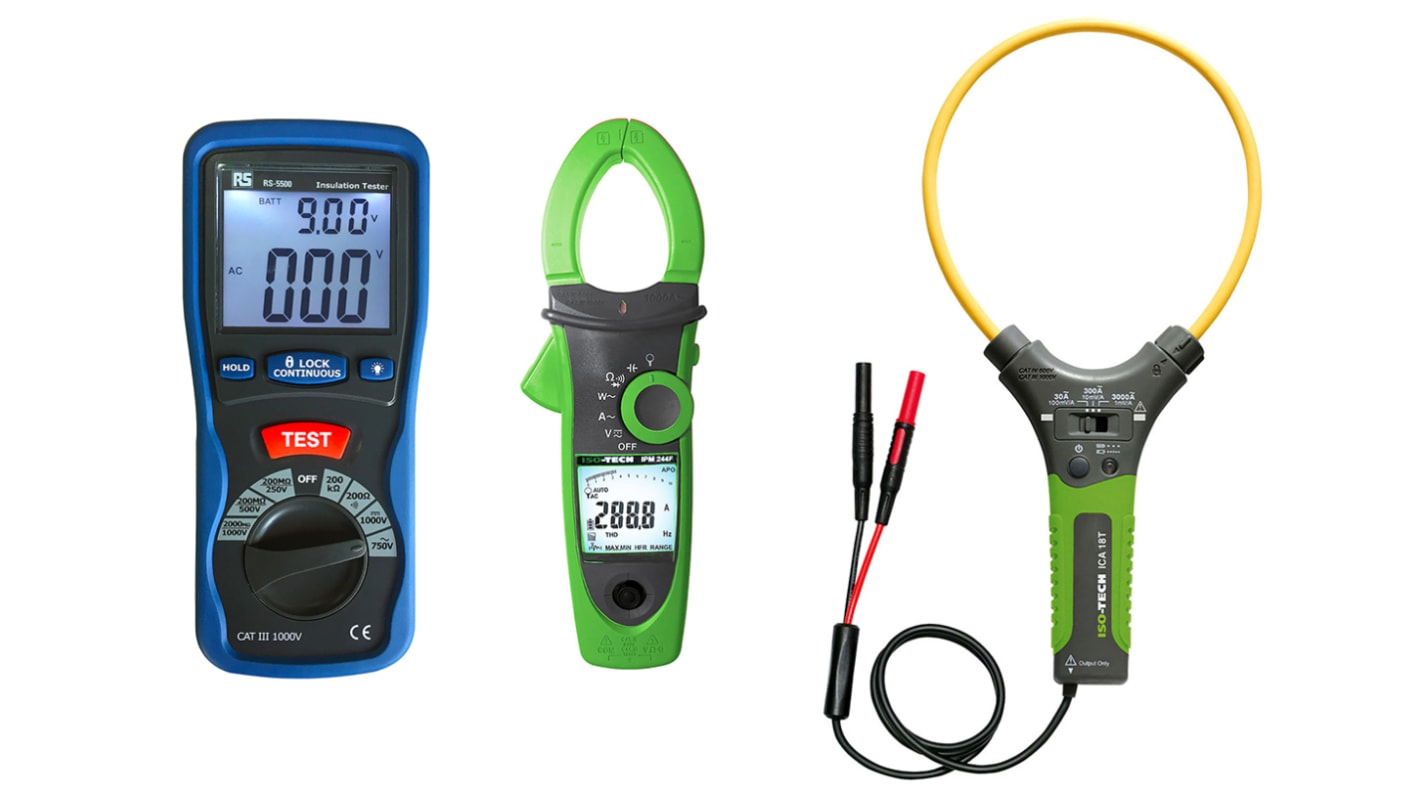

IPM 244F Clampmeter, Current Clamp Adapter & Insulation Tester


IPM 244F Power clamp meter 1000 A AC with high performance.

10000 Count digital display
Active Backlit, Large-scale display
VoltSense (None Contact Voltage)
Analogue bar graph
True RMS reading on AC and AC+DC mode
Torch lightening when clamping
AC 1000 Amps capability
AC Current via Flexible Current Probe
Auto AC-DC 1000 V capability and selection
Auto Ohms/Continuity/Diode selection
100K Ω Resistance capability
Continuity Beeper
Frequency Counter
Power and Power factor measurement
Total Harmonics distortion and Harmonics 1 to 25
Capacitance capability
Inrush Current
Peak Hold
MIN/MAX HOLD
Smart Data Hold
Phase rotation indication
Low pass Filter
Auto Power Off
Standards: IEC 61010-1: CAT IV 600 V, CAT III 1000 V
Supplied with clampmeter, battery (installed), carrying case and user manual.

ICA18T Current Clamp Adapter

3000 A AC current measurement
Slide switch to change range
Voltage output to universal voltage meters
18" head cable length
7.5 mm coil diameter for tight space measurement
2 m Extension cable
Low Battery LED indicator
Ergonomically designed one hand operation
Standards: IEC 61010-1: CAT IV 600 V, CAT III 1000 V

RS-5500 is a great value insulation and continuity tester complying with IEC10101, CAT III for measurements performed in building installations.

Large dual display with backlight
Triple insulation voltage test ranges: 200MΩ/250 V, 200MΩ/500 V & 2000MΩ/1000V
Test Lock function for easy repeat measurement operation
200KΩ Resistance measurement range
200 mA short current continuity range
Display Hold
Test-hold function for easy operation
Over range Indication
Low battery Indication
CAT III 1000 V
1 mA test current for MΩ range at rated voltage
Double-moulded plastic housing
Dimensions 200 x 92 x 50 mm
Weight approximately 700 g
Supplied with Test leads, AA 1.5 V batteries (x6), plastic carrying case, user manual
