TE Connectivity Male Crimp Circular Connector Contact, Contact Size 16, Wire Size 10AWG, 8 AWG
- RS Stock No.:
- 669-3241
- Mfr. Part No.:
- 66259-4
- Manufacturer:
- TE Connectivity

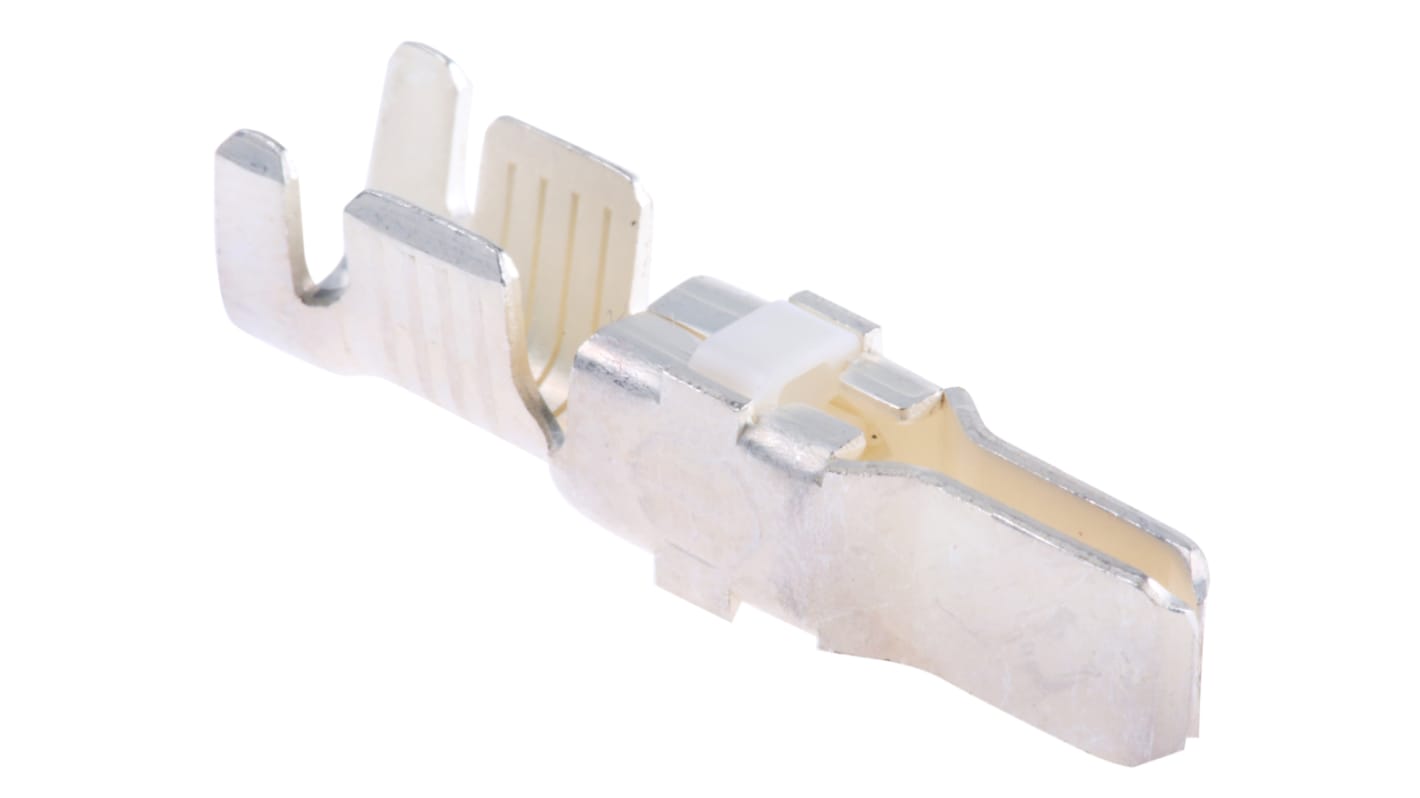

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP573.08
(exc. VAT)
PHP641.85
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 568 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | PHP573.08 |
| 10 - 24 | PHP558.76 |
| 25 - 49 | PHP544.80 |
| 50 - 99 | PHP531.18 |
| 100 + | PHP517.92 |
*price indicative
- RS Stock No.:
- 669-3241
- Mfr. Part No.:
- 66259-4
- Manufacturer:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Circular Connector Contact | |
| Gender | Male | |
| Contact Size | 16 | |
| Wire Size | 10, 8AWG | |
| Current | 35A | |
| Series | Type XII | |
| For Use With | CPC Connector, M Series Connector, G Series Connector | |
| Contact Type | Power | |
| Length | 37.54mm | |
| Contact Plating | Silver | |
| Termination Type | Crimp | |
| Contact Material | Copper | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Circular Connector Contact | ||
Gender Male | ||
Contact Size 16 | ||
Wire Size 10, 8AWG | ||
Current 35A | ||
Series Type XII | ||
For Use With CPC Connector, M Series Connector, G Series Connector | ||
Contact Type Power | ||
Length 37.54mm | ||
Contact Plating Silver | ||
Termination Type Crimp | ||
Contact Material Copper | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Series XII Contacts
A range of TE Connectivity Multimate Series XII crimp contacts.
TE Connectivity Multimate Contacts
Multimate signal contacts feature a high normal force which provides a low resistance in critical applications such as dry circuit signal conditions. Mating entry is closed-ended to prevent damage from stubbing due to misalignment. Stainless steel spring provides superior normal force and retention in the housing
