RS PRO, 47 Ω 250 W Aluminium Chassis Mount Resistor ±5 %
- RS Stock No.:
- 185-2288
- Manufacturer:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Sponsored
- RS Stock No.:
- 185-2288
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Chassis Mount Resistor | |
| Resistance | 47Ω | |
| Power Rating | 250W | |
| Series | RS PRO | |
| Package/Case | Aluminium | |
| Tolerance | ±5 % | |
| Temperature Coefficient | ±100 ppm/°C | |
| Automotive Standard | No | |
| Technology | Aluminium | |
| Termination Style | Wire | |
| Minimum Operating Temperature | -25°C | |
| Overall Length | 180mm | |
| Maximum Operating Temperature | 250°C | |
| Overall Height | 10mm | |
| Standards/Approvals | UL, RoHS | |
| Overall Width | 80mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Chassis Mount Resistor | ||
Resistance 47Ω | ||
Power Rating 250W | ||
Series RS PRO | ||
Package/Case Aluminium | ||
Tolerance ±5 % | ||
Temperature Coefficient ±100 ppm/°C | ||
Automotive Standard No | ||
Technology Aluminium | ||
Termination Style Wire | ||
Minimum Operating Temperature -25°C | ||
Overall Length 180mm | ||
Maximum Operating Temperature 250°C | ||
Overall Height 10mm | ||
Standards/Approvals UL, RoHS | ||
Overall Width 80mm | ||
- COO (Country of Origin):
- IN

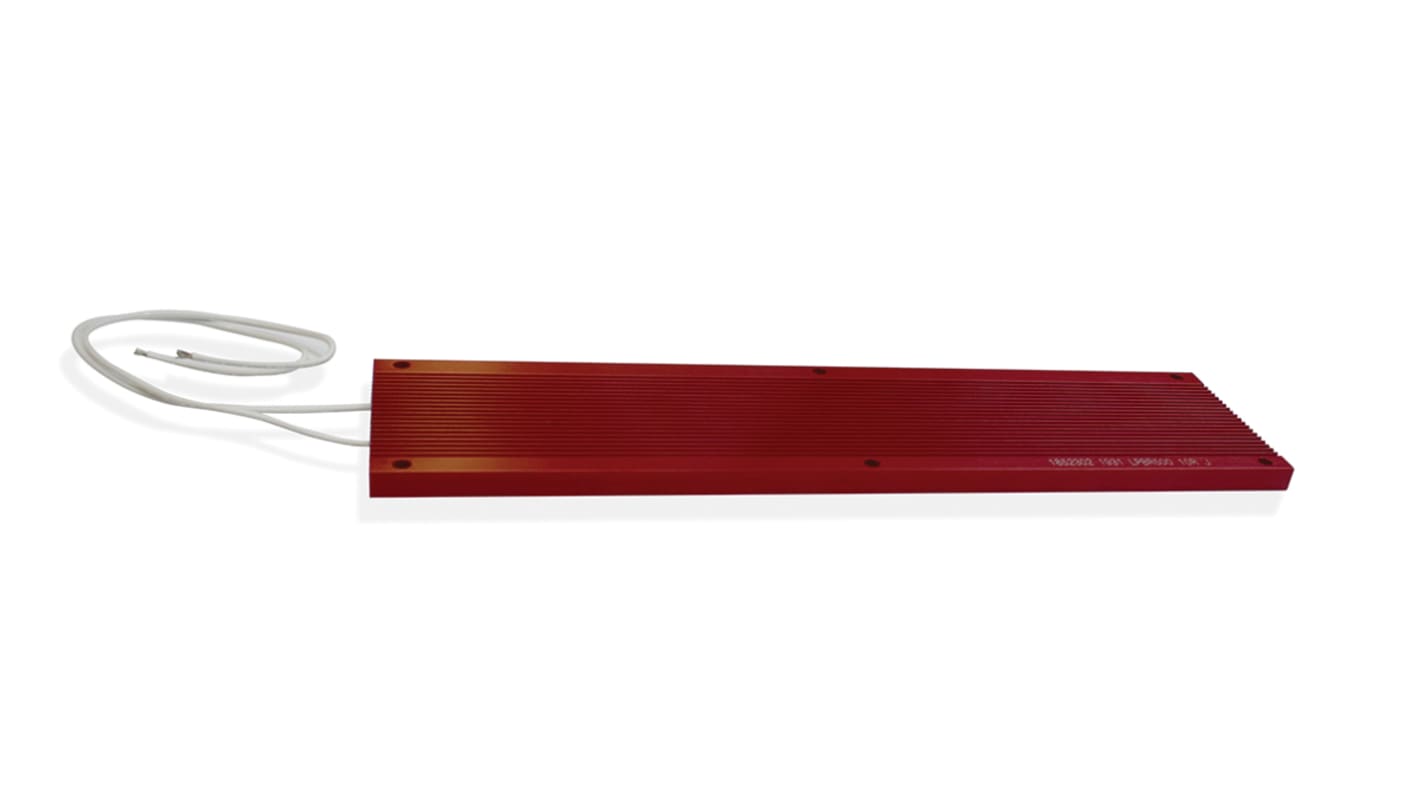

RS PRO Low Profile Braking Resistor
The RS PRO R250 series resistor has a resistance of 47ohm and 250W power rating. It has an aluminium housing with ±5% tolerance. This metal encased braking resistor is designed for direct heat sink attachment.
Features and Benefits
• Heat sink mountable for increased power dissipation
• High power density
• Operating temperature coefficient ranges between -100ppm/°C and 100ppm/°C
• Operating temperature is between -25°C and 250°C
• Wire lead terminal
Certifications
• UL approved
• RoHS compliant
