Schurter Capacitive switch Latching Latching, Momentary Illuminated, RGB, OptoMOS Relay, IP67 Stainless Steel

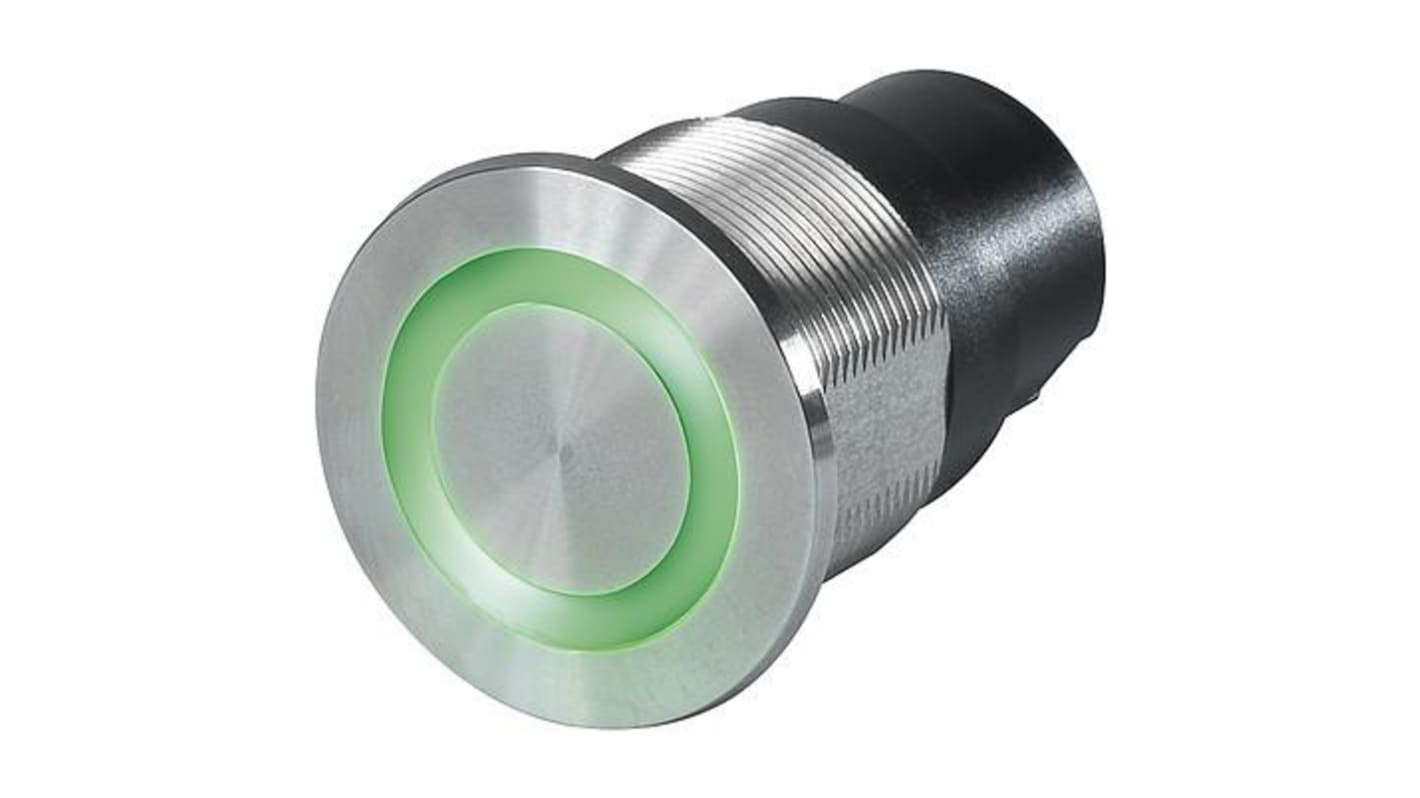

This image is representative of the product range

View all Capacitive Switches
Bulk discount available

Subtotal (1 unit)*

PHP2,900.08

(exc. VAT)

PHP3,248.09

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 - 2PHP2,900.08
3 - 4PHP2,827.56
5 +PHP2,756.87

*price indicative

RS Stock No.:
174-5485
Distrelec Article No.:
301-22-630
Mfr. Part No.:
3-101-404
Manufacturer:
Schurter
Find similar products by selecting one or more attributes.
Select all

Brand

Schurter

Product Type

Capacitive switch

Switch Operation

Latching

Switch Type

Capacitive

Switch Function

Latching, Momentary

Housing Material

Stainless Steel

LED Colour

RGB

Illuminated

Yes

Maximum Input Voltage

28V

Output Type

OptoMOS Relay

Housing Colour

Metallic

Minimum Input Voltage

5V

Actuator Colour

Grey

IP Rating

IP67

Minimum Operating Temperature

-40°C

Contact Material

Stainless Steel

Maximum Operating Temperature

60°C

Standards/Approvals

IEC/UL 60950, RoHS, REACH

Current Rating

100 mA

COO (Country of Origin):
DE
Capacitive touch sensor as momentary push button (NO or NC) or as latching switch (LA)

Protection against unintended switching

Multicolor illumination

Floating switch connections

Laser lettering possible

Vandal resistant

Wires (8 wires for Multicolor, 4 wires otherwise)²

Housing made from stainless steel

Various illumination colors and color combinations possible

Touch surface made from scratch-resistant ceramics with area illumination or made from stainless steel with ring illumination

Ring or area illumination

Wearless, no moving parts

Attractive design with or without finger guide available

Variable supply voltage

Constant LED intensity

Inputs protected against overvoltage

Galvanic separated outputs
