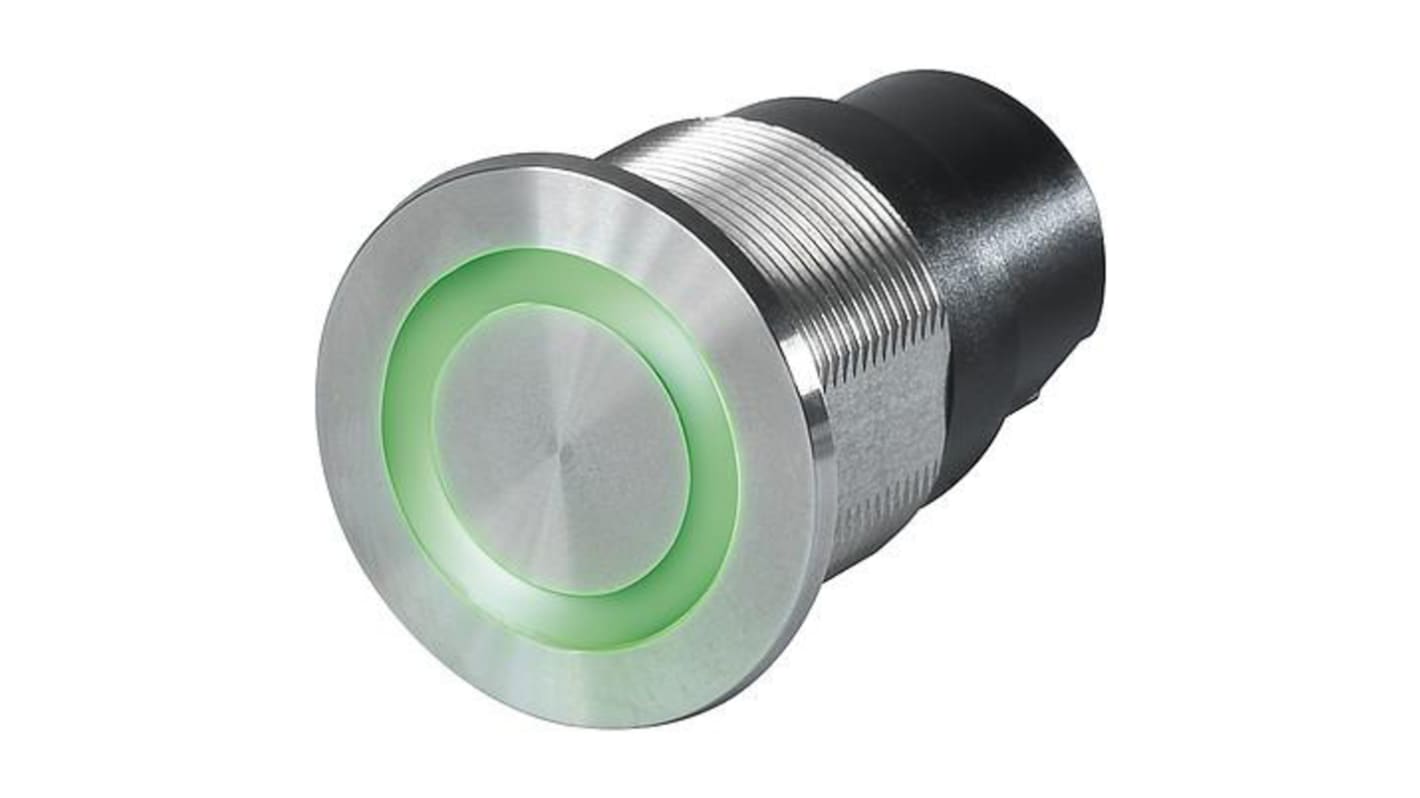

Schurter Capacitive switch Momentary Momentary, Latching Illuminated, RGB, OptoMOS Relay, IP67 Stainless Steel

View all Capacitive Switches

Subtotal (1 unit)*

PHP2,783.15

(exc. VAT)

PHP3,117.13

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 16 unit(s) shipping from February 23, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +PHP2,783.15

*price indicative

RS Stock No.:
174-5429
Mfr. Part No.:
3-101-422
Manufacturer:
Schurter
Find similar products by selecting one or more attributes.
Select all

Brand

Schurter

Switch Operation

Momentary

Product Type

Capacitive switch

Switch Type

Capacitive

Switch Function

Momentary, Latching

LED Colour

RGB

Housing Material

Stainless Steel

Illuminated

Yes

Maximum Input Voltage

28V

Output Type

OptoMOS Relay

Minimum Input Voltage

5V

Housing Colour

Metallic

Actuator Colour

Grey

IP Rating

IP67

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

60°C

Contact Material

Stainless Steel

Standards/Approvals

RoHS, IEC/UL 60950, REACH

Current Rating

100 mA

Capacitive touch sensor as momentary push button (NO or NC) or as latching switch (LA)

Protection against unintended switching

Multicolor illumination

Floating switch connections

Laser lettering possible

Vandal resistant

Wires (8 wires for Multicolor, 4 wires otherwise)²

Housing made from stainless steel

Various illumination colors and color combinations possible

Touch surface made from scratch-resistant ceramics with area illumination or made from stainless steel with ring illumination

Ring or area illumination

Wearless, no moving parts

Attractive design with or without finger guide available

Variable supply voltage

Constant LED intensity

Inputs protected against overvoltage

Galvanic separated outputs
