RS PRO 2 Position 90 °, Knob Actuator 16 A
- RS Stock No.:
- 265-7666
- Manufacturer:
- RS PRO
Subtotal (1 unit)*
PHP1,887.31
(exc. VAT)
PHP2,113.79
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 27 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP1,887.31 |
*price indicative
Sponsored
- RS Stock No.:
- 265-7666
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Cam Switch | |
| Series | T-000 | |
| Electrical Phase | 1 | |
| Mount Type | Door Mount | |
| Number of Positions | 2 | |
| Terminal Type | Screw | |
| Number of Poles | 2 | |
| Angle of Throw | 90 ° | |
| IP Rating | IP65 | |
| Contact Current | 16A | |
| Minimum Operating Temperature | -5°C | |
| Actuator Type | Knob | |
| Maximum Operating Temperature | 40°C | |
| Contact Voltage | 500V ac | |
| Depth | 74mm | |
| Standards/Approvals | UL508, EN 60947-3 | |
| Width | 50mm | |
| Length | 50mm | |
| Hazardous Area Certification | No | |
| Mechanical Life | 10000Cycles | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Cam Switch | ||
Series T-000 | ||
Electrical Phase 1 | ||
Mount Type Door Mount | ||
Number of Positions 2 | ||
Terminal Type Screw | ||
Number of Poles 2 | ||
Angle of Throw 90 ° | ||
IP Rating IP65 | ||
Contact Current 16A | ||
Minimum Operating Temperature -5°C | ||
Actuator Type Knob | ||
Maximum Operating Temperature 40°C | ||
Contact Voltage 500V ac | ||
Depth 74mm | ||
Standards/Approvals UL508, EN 60947-3 | ||
Width 50mm | ||
Length 50mm | ||
Hazardous Area Certification No | ||
Mechanical Life 10000Cycles | ||
- COO (Country of Origin):
- ES

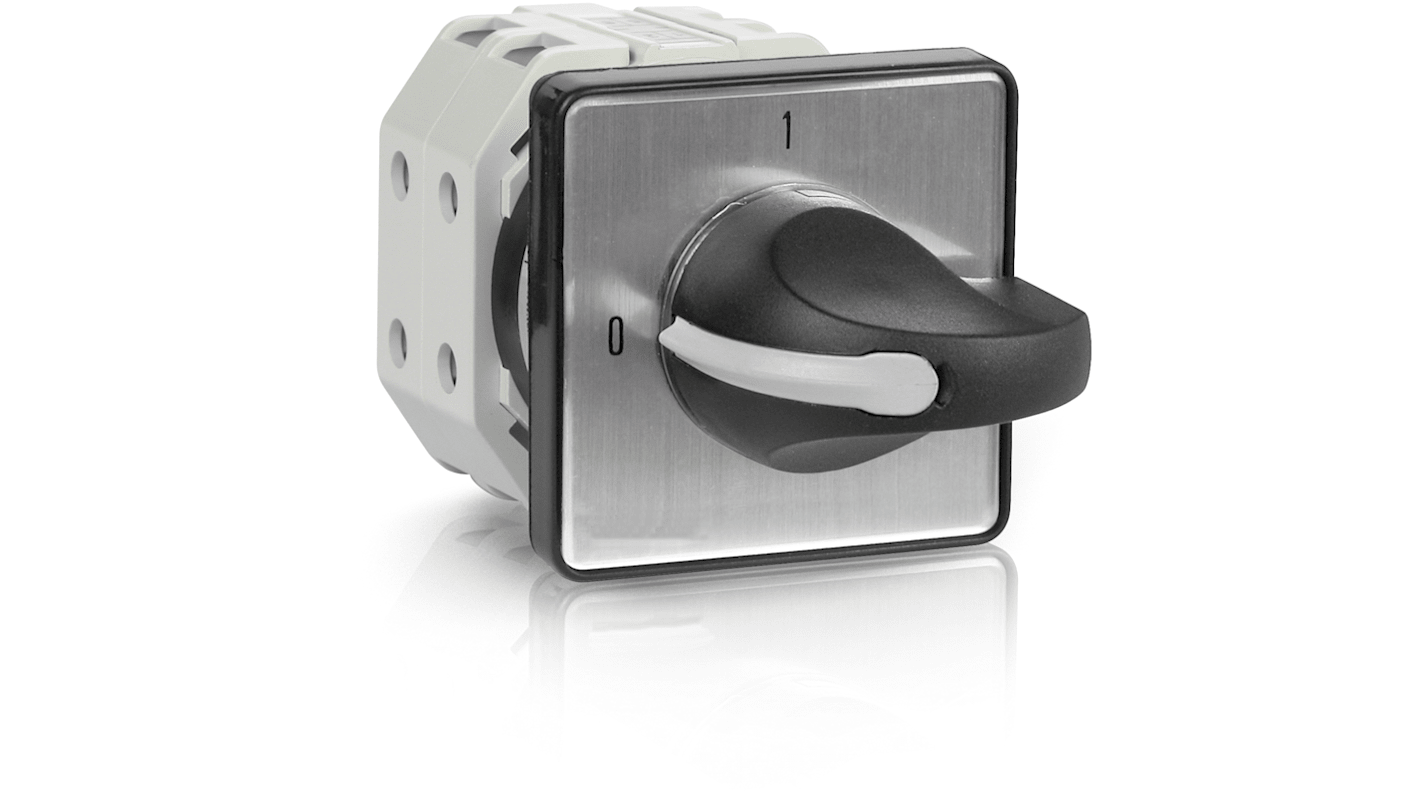

RS PRO Double Pole 2 Position 90° Rotary Cam Switch (500V/ 16A)
A tough and reliable 90° rotary cam switch with DPST (Double Pole Single Throw) On-Off configuration designed for harsh industrial environments. Constructed with Silver Alloy contacts for a long mechanical and electronic lifespan.
The DPST cam switch is enclosed in a Thermoplastic casing for impact resistance with captive screw clamps for a secure installation, removable protection covers on all terminals and an IP rating of IP65 once installed providing excellent protection from dust, and water.
Easy to operate with knob actuation the cam switch features a plate size of 50mm x 50mm marked with symbols I and 0 and is easily connected using 2 x 4mm solid or 2 x 2.5mm flexible conductors. A hardwearing and reliable rotary cam switch ideal for industrial use.
Features and Benefits
90° rotary cam switch
DPST configuration (On-Off)
2 positions
IP65 rated
Contact rating of 16 A
Voltage rating of 500Vac
Knob actuator
Class II double insulation
Operating temperature of -5 to +40°C
Short circuit protection
Pollution degree 3
Thermoplastic case
Plate dimensions of 50 x 50mm
Approvals and Standards: CE/ UKCA, EN 60947-3, UL508
