RS PRO 2 Position 90 °, Knob Actuator 12 A
- RS Stock No.:
- 265-7690
- Manufacturer:
- RS PRO
Subtotal (1 unit)*
PHP873.52
(exc. VAT)
PHP978.34
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 93 unit(s) shipping from May 04, 2026
- Plus 48 unit(s) shipping from May 19, 2026
- Plus 96 unit(s) shipping from June 30, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP873.52 |
*price indicative
- RS Stock No.:
- 265-7690
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Series | T-000 | |
| Product Type | Cam Switch | |
| Electrical Phase | 1 | |
| Number of Positions | 2 | |
| Mount Type | Door Mount | |
| Terminal Type | Screw | |
| Number of Poles | 1 | |
| Angle of Throw | 90 ° | |
| IP Rating | IP65 | |
| Contact Current | 12A | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 40°C | |
| Actuator Type | Knob | |
| Contact Voltage | 500V ac | |
| Standards/Approvals | UL 508, EN 60947-3 | |
| Width | 50mm | |
| Length | 50mm | |
| Depth | 63.3mm | |
| Hazardous Area Certification | NO | |
| Mechanical Life | 10Cycles | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Series T-000 | ||
Product Type Cam Switch | ||
Electrical Phase 1 | ||
Number of Positions 2 | ||
Mount Type Door Mount | ||
Terminal Type Screw | ||
Number of Poles 1 | ||
Angle of Throw 90 ° | ||
IP Rating IP65 | ||
Contact Current 12A | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 40°C | ||
Actuator Type Knob | ||
Contact Voltage 500V ac | ||
Standards/Approvals UL 508, EN 60947-3 | ||
Width 50mm | ||
Length 50mm | ||
Depth 63.3mm | ||
Hazardous Area Certification NO | ||
Mechanical Life 10Cycles | ||

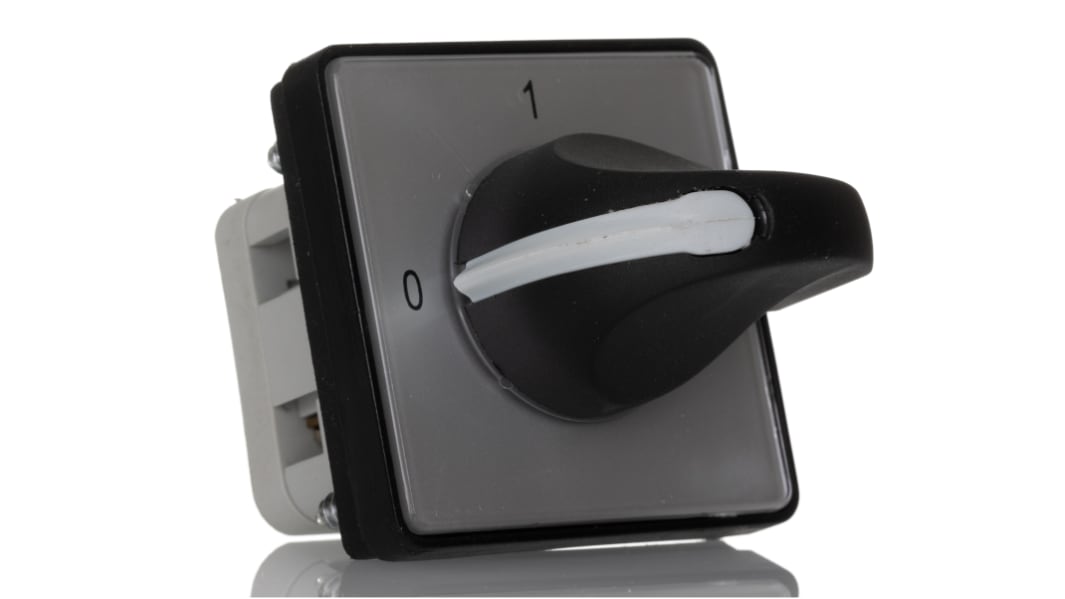

RS PRO Single Pole 2 Position 90° Rotary Cam Switch (500V/ 12A)
A tough and reliable 90° rotary cam switch with Single Pole configuration and 2 selectable positions designed for harsh industrial environments. Constructed with Silver Alloy contacts for a long mechanical and electronic lifespan.
The 2 position cam switch is enclosed in a Thermoplastic casing for impact resistance with captive screw clamps and 4 fixing holes for a secure installation, removable protection covers on all terminals and an IP rating of IP65 once installed providing excellent protection from dust, and water.
Easy to operate with knob actuation the 2 position cam switch features a plate size of 50mm x 50mm marked with symbols 0 and 1 and is easily connected using 2 x 4mm solid or 2 x 2.5mm flexible conductors. A hardwearing and reliable rotary cam switch ideal for industrial use.
Features and Benefits
Rotary cam switch
Single Pole configuration
2 positions
Marked 0 and 1
IP65 rated
Contact rating of 12 A
Voltage rating of 500Vac
Knob actuator
Class II double insulation
Operating temperature of -5 to +40°C
Short circuit protection
Pollution degree 3
Thermoplastic case
Plate dimensions of 50 x 50mm
Approvals and Standards: CE/ UKCA, EN 60947-3, UL508
