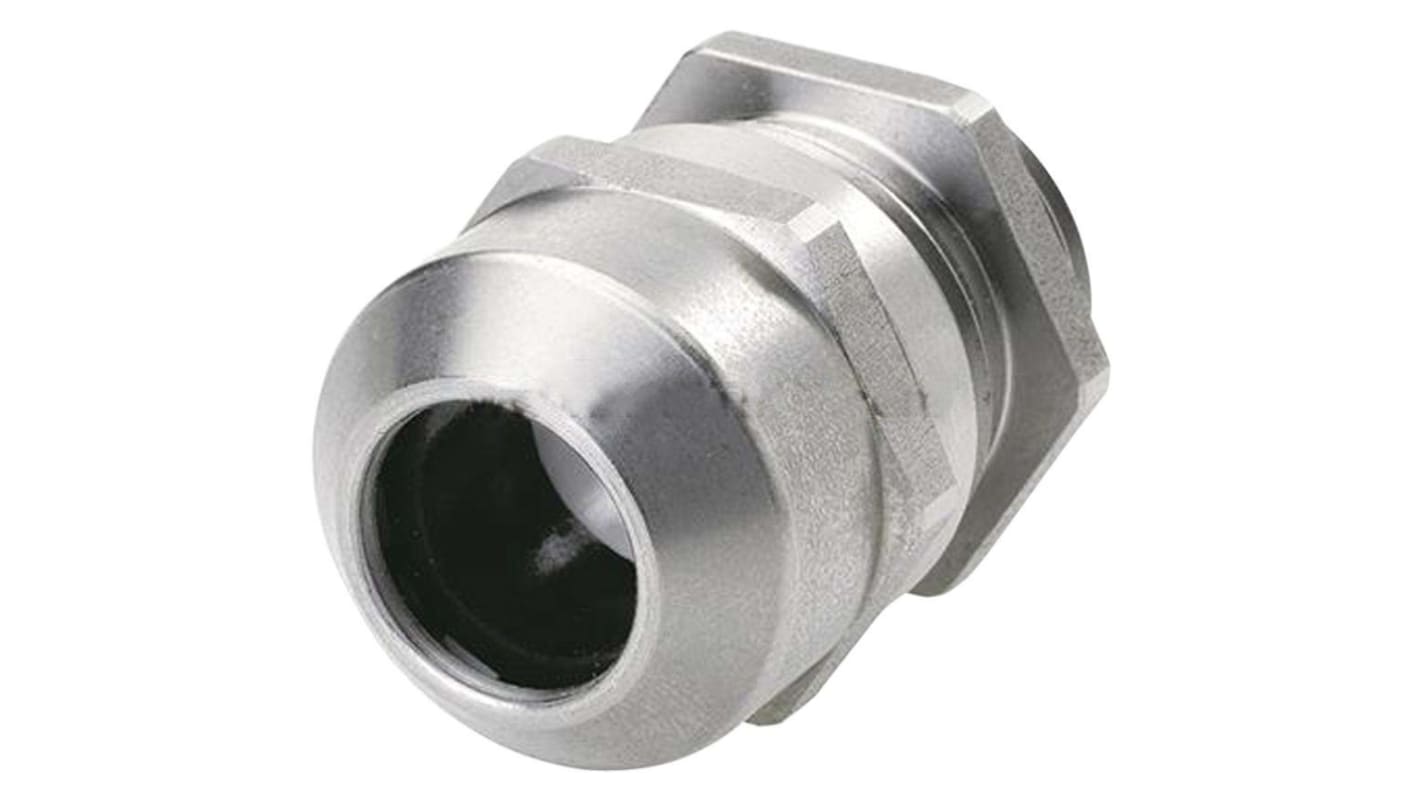

HARTING Han CGM-M Series Metallic Metal Cable Gland, M40 Thread, 20mm min., 32mm max., IP68

RS Stock No.:: 843-6592
Mfr. Part No.:: 19000005099
Manufacturer:: HARTING

HARTING Han CGM-M Series Metallic Metal Cable Gland, M40 Thread, 20mm min., 32mm max., IP68

Subtotal (1 unit)*

PHP3,065.44

(exc. VAT)

PHP3,433.29

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

40 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP3,065.44

*price indicative

RS Stock No.:: 843-6592
Mfr. Part No.:: 19000005099
Manufacturer:: HARTING

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	HARTING
	Thread Size	M40
	Maximum Cable Diameter	32mm
	Minimum Cable Diameter	20mm
	Material	Metal
	Colour	Metallic
	Series	Han CGM-M
	IP Rating	IP68
	Maximum Operating Temperature	+100°C
	Minimum Operating Temperature	-40°C
	Operating Temperature Range	-40 → +100 °C

	Select all
	Brand HARTING
	Thread Size M40
	Maximum Cable Diameter 32mm
	Minimum Cable Diameter 20mm
	Material Metal
	Colour Metallic
	Series Han CGM-M
	IP Rating IP68
	Maximum Operating Temperature +100°C
	Minimum Operating Temperature -40°C
	Operating Temperature Range -40 → +100 °C

Harting Cable Glands

A Range of Cable Clamp/Glands from Harting

Features and Benefits

IP65 & IP68 Rated
Available in a range of Thread Sizes

Applications

Robust in construction, CGM-M weatherproof cable glands are ideally suited to environments that demand high levels of mechanical and chemical stability. Some of the most common areas are:

• Robotics and moving machines
• Electrical panels and switch cabinets
• Machine tool stations
• Industrial automation
• Conveyer belts
• Power and utility plants

Environment

The HAN CGM-M cable glands are fully sealed and have an IP68/69 ingress protection rating. This means the metal glands are dust tight and are protected against the continuous effects of immersion in water. The CGM-M cable glands are ideal for harsher environments and outdoor applications.

Note

Cable diameters stated are in the form min/max.
