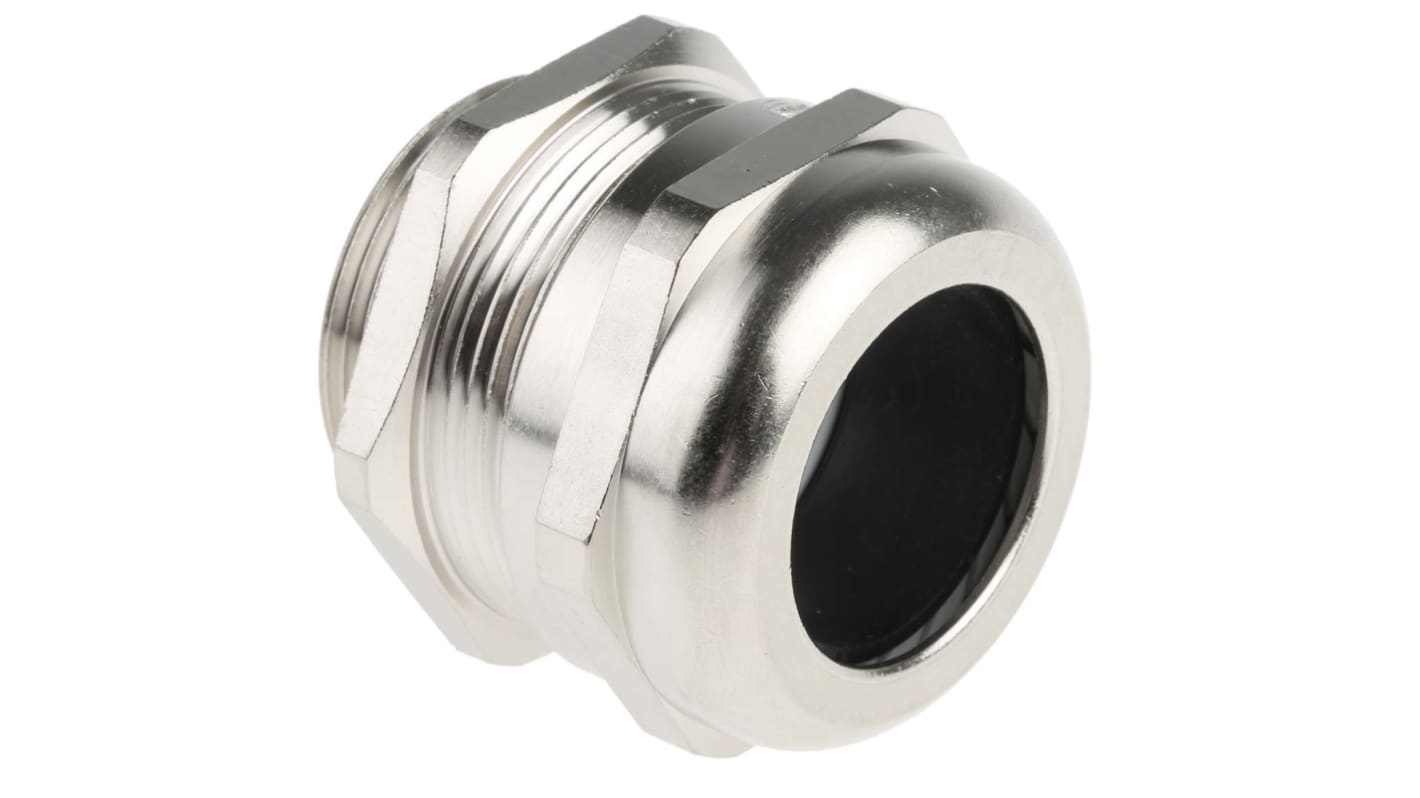

HARTING Han CGM-M Series Metallic Metal Cable Gland, M32 Thread, 18 mm min., 25 mm max., IP68

View all Cable Glands
Bulk discount available

Subtotal (1 unit)*

PHP1,763.37

(exc. VAT)

PHP1,974.97

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 117 unit(s) shipping from May 18, 2026
  • Plus 150 unit(s) shipping from June 25, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per Unit
1 - 49PHP1,763.37
50 - 249PHP1,710.45
250 +PHP1,659.15

*price indicative

RS Stock No.:
843-6347
Distrelec Article No.:
143-51-516
Mfr. Part No.:
19000005096
Manufacturer:
HARTING
Find similar products by selecting one or more attributes.
Select all

Brand

HARTING

Thread Size

M32

Product Type

Cable Gland

Maximum Cable Diameter

25mm

Minimum Cable Diameter

18mm

Material

Metal

Colour

Metallic

Series

Han CGM-M

IP Rating

IP68

Hazardous Area Certification

No

Maximum Operating Temperature

100°C

Minimum Operating Temperature

-40°C

Standards/Approvals

No

RoHS Status: Exempt

COO (Country of Origin):
DE

Harting Han CGM-M Series Cable Gland, M32 Thread size, IP68 - 19000005096


This cable gland provides a secure entry point for cables in demanding settings, designed to maintain enclosure integrity where moisture and temperature extremes are factors. It is metallised for heavy-duty use and threaded for panel or enclosure mounting, offering environmental protection in industrial installations.

Features & Benefits


• IP68-rated sealing prevents ingress in submerged conditions
• Metal construction offers mechanical robustness and longevity
• Supports cable diameters from 18mm to 25mm for varied conductors
• Rated for operation between −40°C and 100°C for thermal resilience
• Threaded M32 Interface enables standard panel-mount integration

**Applications**


• Suitable for automation cabinets exposed to wash‑down procedures
• Ideal for electrical junctions in manufacturing plants
• Used with control panels in outdoor instrumentation enclosures
• Can be used for cable entry on machinery operating at elevated temperatures

What cable sizes will it accommodate?


It accepts cables with outer diameters in the range 18 mm–25 mm, allowing use with multi‑core and screened cables common in industrial installations.

How does it perform in wet or submerged locations?


The sealing system is specified to IP68, providing protection against continuous immersion and preventing water ingress at the cable entry.

What material characteristics affect installation torque and durability?


The gland is manufactured from metal, which impacts required tightening torque compared with polymer glands and contributes to resistance against impacts and abrasion during service.

What mounting Interface is required for fitting?


A standard M32 threaded cut‑out is needed for secure panel or enclosure fixation and to ensure correct sealing compression.

What temperature conditions can it withstand during operation?


It is rated to function across a temperature span from −40°C up to 100°C, making it suitable for both cold‑storage and hot‑process environments.

Note

Cable diameters stated are in the form min/max.
