Texas Instruments LM2574HVN-5.0/NOPB, 1-Channel Buck Converter, Fixed 8-Pin, MDIP
- RS Stock No.:
- 533-3096
- Mfr. Part No.:
- LM2574HVN-5.0/NOPB
- Manufacturer:
- Texas Instruments

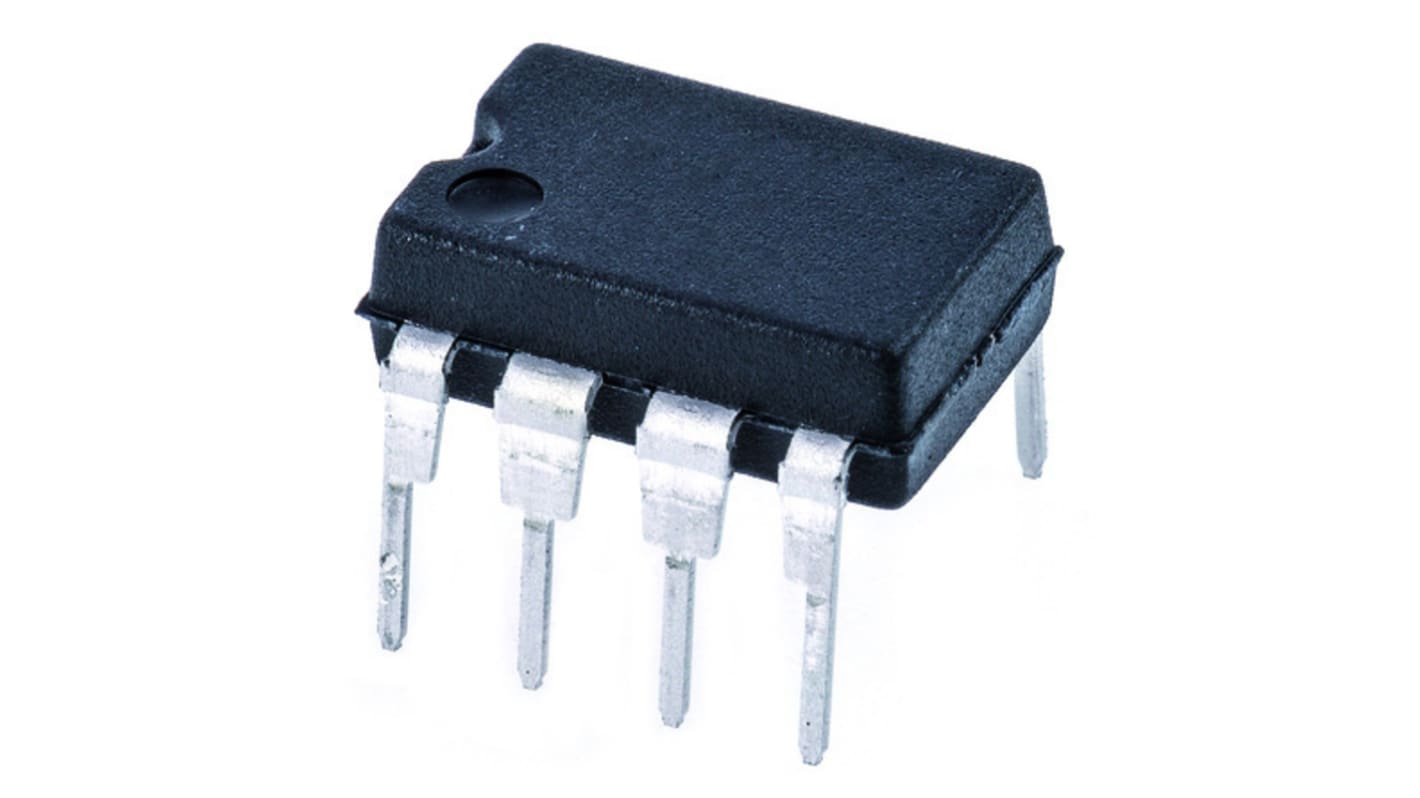

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 533-3096
- Mfr. Part No.:
- LM2574HVN-5.0/NOPB
- Manufacturer:
- Texas Instruments
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Buck Converter | |
| Minimum Input Voltage | 4, 4V | |
| Maximum Input Voltage | 60, 60V | |
| Maximum Output Current | 500mA | |
| Number of Outputs | 1 | |
| Output Type | Fixed | |
| Mount Type | Through Hole, Through Hole | |
| Maximum Switching Frequency | 58kHz | |
| Minimum Operating Temperature | -40°C | |
| Package Type | MDIP | |
| Pin Count | 8 | |
| Maximum Operating Temperature | 125°C | |
| Length | 9.27mm | |
| Height | 3.3mm | |
| Series | LM2574xx | |
| Width | 6.35mm | |
| Standards/Approvals | JEDEC, RoHS | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Buck Converter | ||
Minimum Input Voltage 4, 4V | ||
Maximum Input Voltage 60, 60V | ||
Maximum Output Current 500mA | ||
Number of Outputs 1 | ||
Output Type Fixed | ||
Mount Type Through Hole, Through Hole | ||
Maximum Switching Frequency 58kHz | ||
Minimum Operating Temperature -40°C | ||
Package Type MDIP | ||
Pin Count 8 | ||
Maximum Operating Temperature 125°C | ||
Length 9.27mm | ||
Height 3.3mm | ||
Series LM2574xx | ||
Width 6.35mm | ||
Standards/Approvals JEDEC, RoHS | ||
SIMPLE SWITCHER® Step-Down Regulators, LM257x Series
SIMPLE SWITCHER® Regulators, Texas Instruments
Use for wide voltage inputs designs up to 75V, and a balance between ease of use and flexibility.
