Nexperia BCM847DS Transistor, 100 mA NPN, 45 V, 6-Pin SOT-457 (SC-74)
- RS Stock No.:
- 165-8719
- Mfr. Part No.:
- BCM847DS
- Manufacturer:
- Nexperia

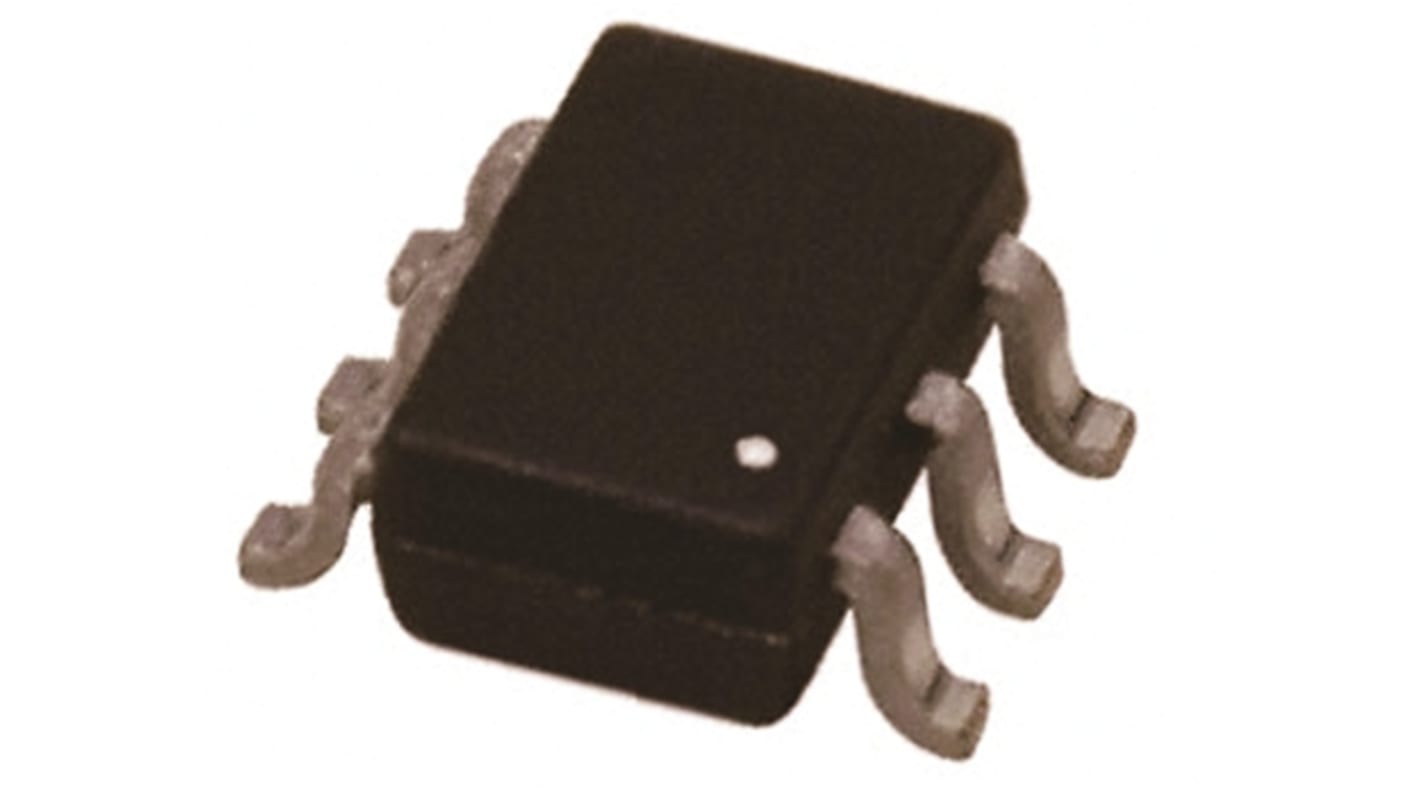

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 165-8719
- Mfr. Part No.:
- BCM847DS
- Manufacturer:
- Nexperia
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | 100mA | |
| Maximum Collector Emitter Voltage Vceo | 45V | |
| Package Type | SOT-457 (SC-74) | |
| Mount Type | Surface, Surface Mount | |
| Transistor Configuration | Current Mirror | |
| Maximum Collector Base Voltage VCBO | 50V | |
| Transistor Polarity | NPN | |
| Maximum Power Dissipation Pd | 250mW | |
| Maximum Transition Frequency ft | 100MHz | |
| Minimum Operating Temperature | -65°C | |
| Minimum DC Current Gain hFE | 200 | |
| Maximum Emitter Base Voltage VEBO | 6V | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 6 | |
| Height | 1.1mm | |
| Standards/Approvals | RoHS | |
| Series | BCM847 | |
| Width | 3 mm | |
| Length | 3.1mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc 100mA | ||
Maximum Collector Emitter Voltage Vceo 45V | ||
Package Type SOT-457 (SC-74) | ||
Mount Type Surface, Surface Mount | ||
Transistor Configuration Current Mirror | ||
Maximum Collector Base Voltage VCBO 50V | ||
Transistor Polarity NPN | ||
Maximum Power Dissipation Pd 250mW | ||
Maximum Transition Frequency ft 100MHz | ||
Minimum Operating Temperature -65°C | ||
Minimum DC Current Gain hFE 200 | ||
Maximum Emitter Base Voltage VEBO 6V | ||
Maximum Operating Temperature 150°C | ||
Pin Count 6 | ||
Height 1.1mm | ||
Standards/Approvals RoHS | ||
Series BCM847 | ||
Width 3 mm | ||
Length 3.1mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
General Purpose NPN Transistors, Nexperia
Bipolar Transistors, Nexperia
