Nexperia BSR16,215 Transistor, -600 mA PNP, -60 V, 3-Pin SOT-23
- RS Stock No.:
- 152-3688
- Mfr. Part No.:
- BSR16,215
- Manufacturer:
- Nexperia

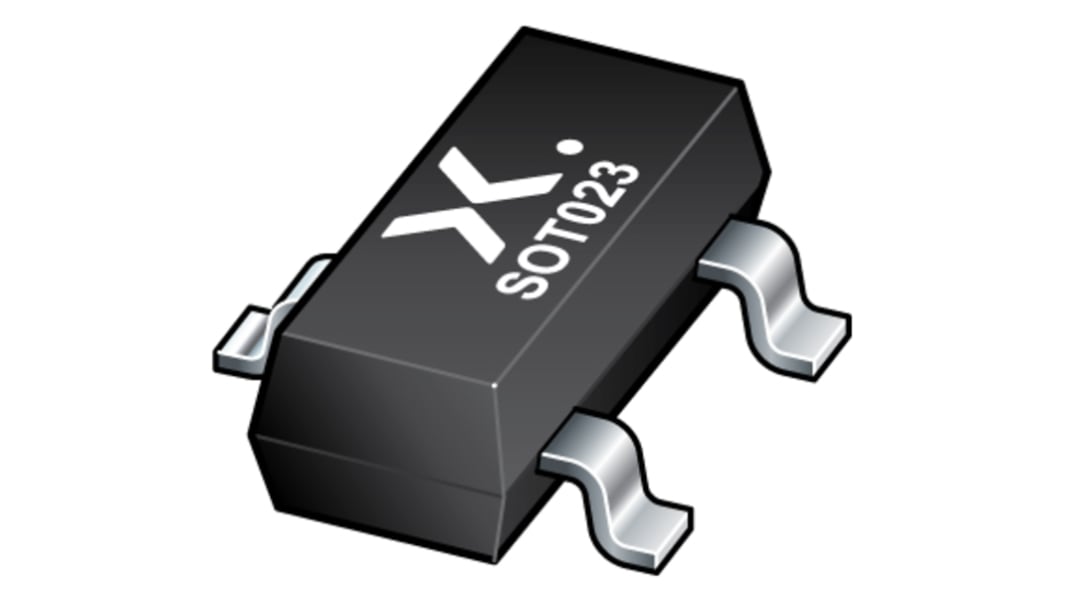

This image is representative of the product range
Bulk discount available
View bulk pricing optionSubtotal (1 pack of 50 units)*
PHP685.45
(exc. VAT)
PHP767.70
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 450 unit(s) ready to ship from another location
- Plus 3,000 unit(s) shipping from December 09, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 50 - 200 | PHP13.709 | PHP685.45 |
| 250 - 450 | PHP13.298 | PHP664.90 |
| 500 - 1200 | PHP12.898 | PHP644.90 |
| 1250 - 2450 | PHP12.512 | PHP625.60 |
| 2500 + | PHP12.137 | PHP606.85 |
*price indicative
- RS Stock No.:
- 152-3688
- Mfr. Part No.:
- BSR16,215
- Manufacturer:
- Nexperia
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | -600mA | |
| Maximum Collector Emitter Voltage Vceo | -60V | |
| Package Type | SOT-23 | |
| Mount Type | Surface | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage VCBO | -60V | |
| Maximum Emitter Base Voltage VEBO | -5V | |
| Minimum DC Current Gain hFE | 100 | |
| Transistor Polarity | PNP | |
| Maximum Power Dissipation Pd | 250mW | |
| Minimum Operating Temperature | -65°C | |
| Maximum Transition Frequency ft | 200MHz | |
| Pin Count | 3 | |
| Maximum Operating Temperature | 150°C | |
| Series | BSR16 | |
| Standards/Approvals | RoHS | |
| Height | 0.6mm | |
| Length | 3mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc -600mA | ||
Maximum Collector Emitter Voltage Vceo -60V | ||
Package Type SOT-23 | ||
Mount Type Surface | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage VCBO -60V | ||
Maximum Emitter Base Voltage VEBO -5V | ||
Minimum DC Current Gain hFE 100 | ||
Transistor Polarity PNP | ||
Maximum Power Dissipation Pd 250mW | ||
Minimum Operating Temperature -65°C | ||
Maximum Transition Frequency ft 200MHz | ||
Pin Count 3 | ||
Maximum Operating Temperature 150°C | ||
Series BSR16 | ||
Standards/Approvals RoHS | ||
Height 0.6mm | ||
Length 3mm | ||
Automotive Standard AEC-Q101 | ||
Switching transistors single / double, Up to 60 V VCEO and up to 800 mA IC, Delivering shorter storage times and significantly reduced switching times, our NPN and PNP switching transistors give you a design advantage. You can choose from a sizeable portfolio, with devices offered in several package options including small and ultra small sizes. Excellent for logic level shifters as well as for general purpose switching.
Short storage time
Small and very small packages
VCEO up to 40 V for NPN transistors (- 60 V for PNP types)
IC range up to 800 mA
General purpose switching
Logic level shifter
60V, 600 mA, PNP switching transistor, PNP switching transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. NPN complement: BSR14
Single general-purpose switching transistor
AEC-Q101 qualified
Switching and linear amplification
