Rohde & Schwarz Digital Bench Power Supply Bundle, 2-Output 0 V to 20V, 120 W, 6 A Max
- RS Stock No.:
- 237-1365
- Distrelec Article No.:
- 302-57-382
- Mfr. Part No.:
- NGM-COM2b
- Manufacturer:
- Rohde & Schwarz
Subtotal (1 unit)*
PHP724,565.95
(exc. VAT)
PHP811,513.86
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP724,565.95 |
*price indicative
- RS Stock No.:
- 237-1365
- Distrelec Article No.:
- 302-57-382
- Mfr. Part No.:
- NGM-COM2b
- Manufacturer:
- Rohde & Schwarz
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rohde & Schwarz | |
| Product Type | Bench Power Supply Bundle | |
| Maximum Output Current | 6A | |
| Number of Outputs | 2 | |
| Maximum Output Voltage | 20V | |
| Power | 120W | |
| Output Type | 0/20 V | |
| Digital/Analogue | Digital | |
| Supported Number of Displays | 1 | |
| Maximum Operating Temperature | 40°C | |
| Depth | 436mm | |
| Standards/Approvals | RoHS | |
| Height | 97mm | |
| Width | 222mm | |
| Minimum Output Current | 3A | |
| Minimum Output Voltage | 0V | |
| Select all | ||
|---|---|---|
Brand Rohde & Schwarz | ||
Product Type Bench Power Supply Bundle | ||
Maximum Output Current 6A | ||
Number of Outputs 2 | ||
Maximum Output Voltage 20V | ||
Power 120W | ||
Output Type 0/20 V | ||
Digital/Analogue Digital | ||
Supported Number of Displays 1 | ||
Maximum Operating Temperature 40°C | ||
Depth 436mm | ||
Standards/Approvals RoHS | ||
Height 97mm | ||
Width 222mm | ||
Minimum Output Current 3A | ||
Minimum Output Voltage 0V | ||
- COO (Country of Origin):
- CZ

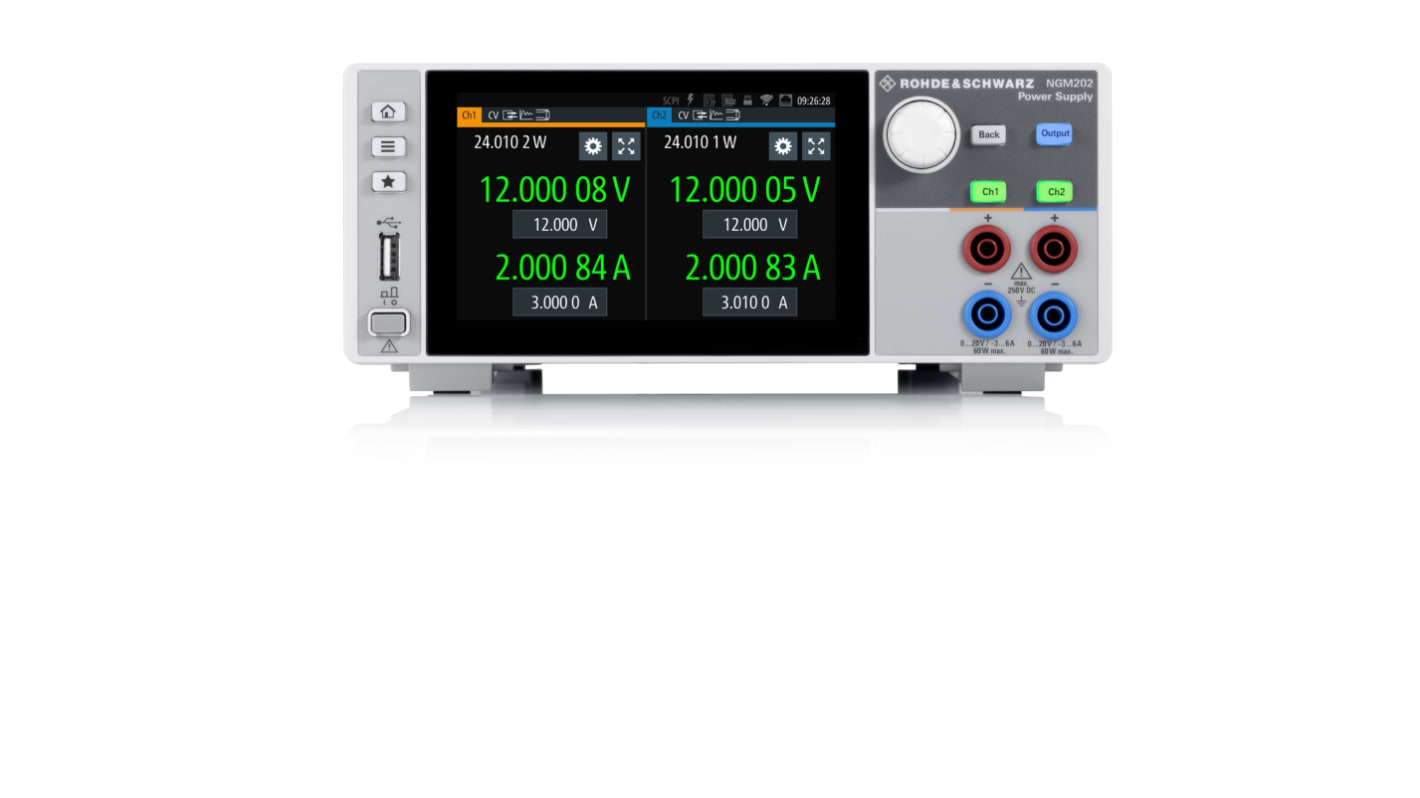

NGM-COM2b – NGM202 Power Supply Package
The NGM-COM2b is a power supply package and includes the NGM202 two channel, 120 W DC power supply.
The NGM-COM2b package Includes:
NGM202 2-channel Power Supply
NGM-K103 Digital Trigger I/O
NGM-K104 Digital Voltmeter Functionality
NGM-K106 Battery Simulation
The Rohde & Schwarz NGM200 power supply series comes with high accuracy and fast load recovery time, which are perfect for challenging applications. Their two-quadrant architecture allows them to function both as a source and a sink to simulate batteries and loads. These power supplies are ideal for powering IoT devices and other battery-operated devices.
Rohde & Schwarz promotion until March 31st, 2025
Save up to 48% on the most popular configurations of T&M instrument configurations from Rohde & Schwarz. This promotional offer includes all essential instruments found on an engineer’s workbench including, oscilloscopes, DC power supplies, spectrum and antenna analysers, signal generators and LCR meters.
Buy the NGM-COM2b bundle now to benefit from an inclusive 10% saving.
Features and Benefits
Fast load regulation
Minimum residual ripple and low noise
Readings with up to 6 1/2-digit resolution
Galvanically isolated, floating channels
Output stage isolated with relays
Two quadrants: operates as source and sink
Constant voltage, constant current and constant resistance modes
High-speed acquisition
Protection functions to safeguard instrument and DUT
Safety limits to safeguard the DUT
Max. 60 W output power per channel
Easy to operate
