Rohde & Schwarz Digital Bench Power Supply Bundle, 4-Output 0 mV to 64V, 800 W, 10 A Max
- RS Stock No.:
- 237-1366
- Distrelec Article No.:
- 302-57-383
- Mfr. Part No.:
- NGP824COMb
- Manufacturer:
- Rohde & Schwarz
Subtotal (1 unit)*
PHP505,426.50
(exc. VAT)
PHP566,077.68
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP505,426.50 |
*price indicative
- RS Stock No.:
- 237-1366
- Distrelec Article No.:
- 302-57-383
- Mfr. Part No.:
- NGP824COMb
- Manufacturer:
- Rohde & Schwarz
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rohde & Schwarz | |
| Product Type | Bench Power Supply Bundle | |
| Maximum Output Current | 10A | |
| Number of Outputs | 4 | |
| Maximum Output Voltage | 64V | |
| Power | 800W | |
| Maximum Supply Voltage | 250V | |
| Output Type | 0/64 V | |
| Supported Number of Displays | 1 | |
| Digital/Analogue | Digital | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | RoHS | |
| Width | 222mm | |
| Height | 97mm | |
| Depth | 436mm | |
| Minimum Output Voltage | 0mV | |
| Minimum Output Current | 10A | |
| Select all | ||
|---|---|---|
Brand Rohde & Schwarz | ||
Product Type Bench Power Supply Bundle | ||
Maximum Output Current 10A | ||
Number of Outputs 4 | ||
Maximum Output Voltage 64V | ||
Power 800W | ||
Maximum Supply Voltage 250V | ||
Output Type 0/64 V | ||
Supported Number of Displays 1 | ||
Digital/Analogue Digital | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals RoHS | ||
Width 222mm | ||
Height 97mm | ||
Depth 436mm | ||
Minimum Output Voltage 0mV | ||
Minimum Output Current 10A | ||
- COO (Country of Origin):
- MY
NGP824-COMb – NGP824 Power Supply Package

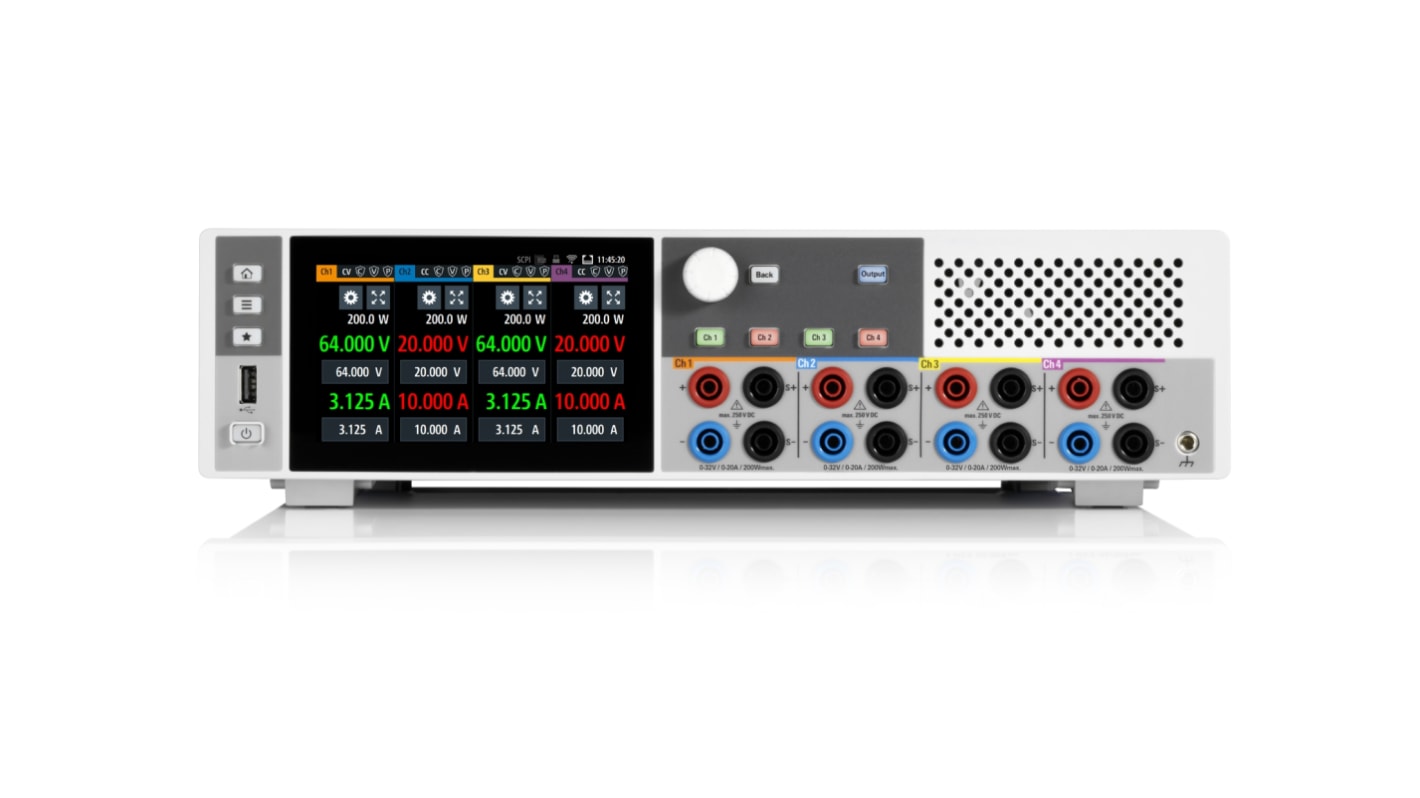

The NGP824-COMb is a power supply package and includes the NGP824 four channel, 800 W DC power supply.
The NGP824-COMb consists of:
NGP824 4 Channel Power Supply 64V/10A
NGM-K103 Digital Trigger I/O
NGM-K107 Analog Input
The Rohde & Schwarz NGP800 power supply series provides maximum power at a variety of operating points. The two or four 200 W outputs can each supply up to 64 V or up to 20 A. Electrically equivalent and galvanically isolated outputs can be wired in series or parallel for up to 250 V or 80 A.
Rohde & Schwarz promotion until March 31st, 2025
Save up to 48% on the most popular configurations of T&M instrument configurations from Rohde & Schwarz. This promotional offer includes all essential instruments found on an engineer’s workbench including, oscilloscopes, DC power supplies, spectrum and antenna analysers, signal generators and LCR meters.
Buy the NGP824-COMb bundle now to benefit from an inclusive 10% saving.
Features and Benefits
Four-channel power supply
800 W – 4 x 64 V/10 A
5-inch high-resolution touch display
FlexPower
Four power supplies in a single instrument
Parallel and serial operation
Digital remote control
Digital trigger I/O
Analog input
Remote sensing
Built-in measurements
Data logging
Max. 200 W output power per channel
