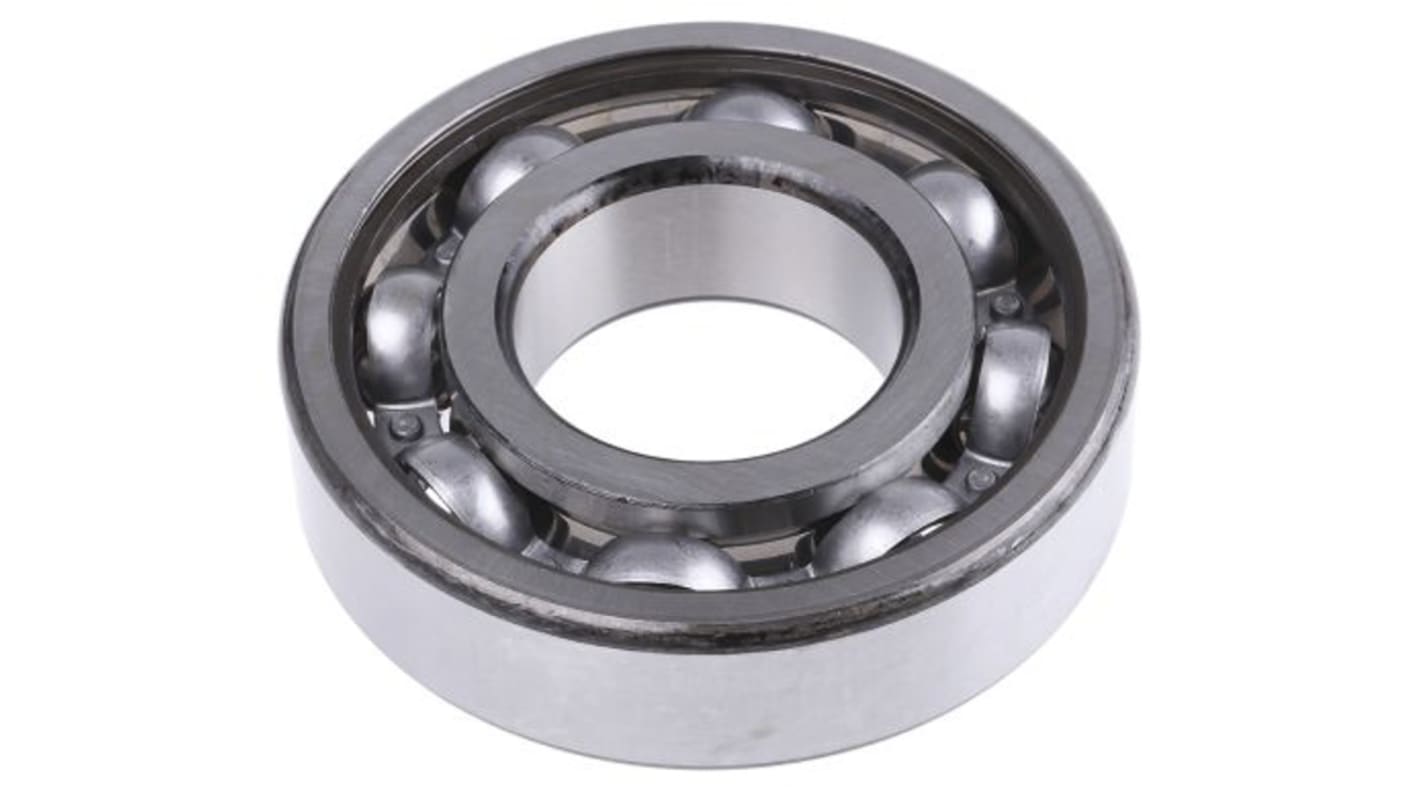

SKF 6209 1 Row Ball Bearing - 45 mm ID, 85 mm OD
- RS Stock No.:
- 286-8101
- Mfr. Part No.:
- 6209
- Manufacturer:
- SKF
Bulk discount available
Subtotal (1 unit)*
PHP1,530.17
(exc. VAT)
PHP1,713.79
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 20 unit(s) shipping from May 04, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 24 | PHP1,530.17 |
| 25 - 49 | PHP1,508.76 |
| 50 + | PHP1,478.60 |
*price indicative
- RS Stock No.:
- 286-8101
- Mfr. Part No.:
- 6209
- Manufacturer:
- SKF
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 45mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 85mm | |
| Race Width | 19mm | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 21.6kN | |
| Dynamic Load Rating | 35.1kN | |
| Series | 2 Light | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 11000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 45mm | ||
Product Type Ball Bearing | ||
Outside Diameter 85mm | ||
Race Width 19mm | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 21.6kN | ||
Dynamic Load Rating 35.1kN | ||
Series 2 Light | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 11000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Plain | ||
RoHS Status: Exempt
SKF Deep-Groove Ball Bearing, 35.1kN Dynamic Load Rating, 21.6kN Static Load Rating - 6209
Looking for a reliable way to reduce friction in the rotating parts of your industrial machinery? Choose this ball bearing from SKF. The deep raceway design means it can handle both axial and radial loads without undue vibration or friction. It's made entirely of steel, which is durable and resistant to corrosion, so delivers long-term performance even in harsh or humid conditions. With a static load rating of 21.6kN and dynamic load rating of 35.1kN, this bearing is ideally suited to heavy-duty industrial applications.
• Reference speed of 17000r/min (rotations per minute) and limiting speed of 11000r/min for fast-paced operations
• Open-ended design for convenient inspection and lubrication
• Light weight of 410g means it's easy to handle and won't strain your equipment
• Inside diameter of 45mm for medium-sized shafts
Applications
• Mechanical workshops
• Industrial motors
• Marine industry
Is this ball bearing flame-resistant?
Yes – its steel material is non-combustible, which means it won't burn when a fire occurs. This makes it a safe choice for use in hazardous areas.
